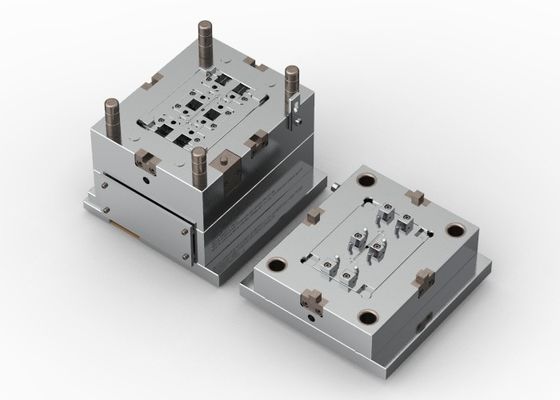

Medical Instrument PN-1691 (1*4) Two-Plates Mold Cold Runner No.21063-C
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 261.000 | Part Weight | 0.11g |
|---|---|---|---|
| Design Software | (3D)UG 4.0/ (2D）CAD | Mould Life | ≥500000 Shots |
| Gate | Side Gate | Injection Type | Cold Runner |
| Runner Type | Cold Runner | ||
| High Light | PN-1691 medical injection moulding,Two-Plates medical injection moulding |
||
Product Description
Medical Instrument PN-1691 (1*4)
No.21063-C
Description:

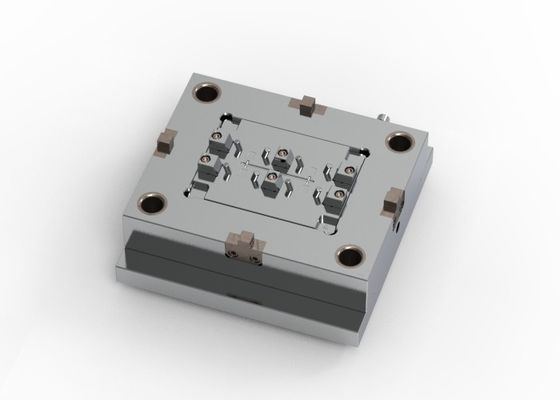

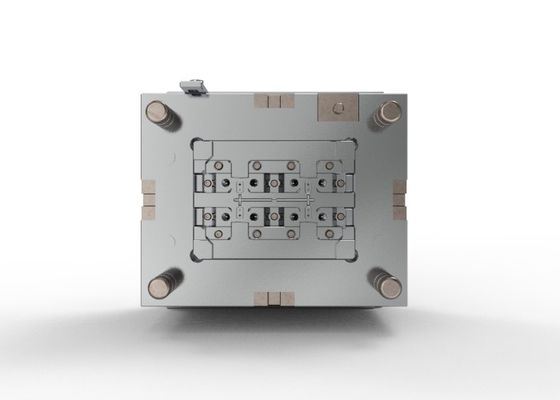

| The Two-plates mold Cold runner is a commonly employed injection mold in the manufacturing sector. It comprises two primary plates that shape the mold cavity and core. The cold runner system denotes the technique of delivering molten material to the mold cavity without the use of a heated runner. This mold type is typically utilized for uncomplicated part geometries and aids in minimizing material wastage. |
Application:
Medical electronics
Smart Life Electronics
Digital Accessories
Features:

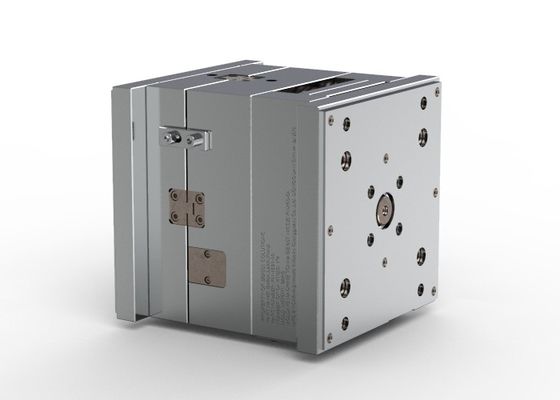

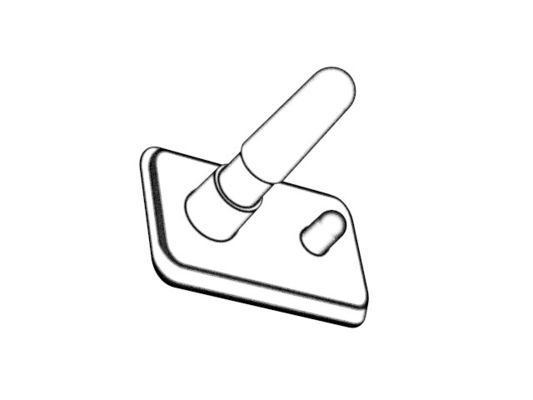

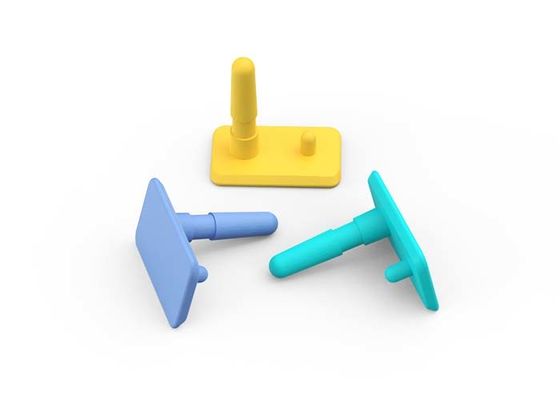

| The mold is manufactured according to LKM standards, with a standard mold base P/N: CI2025.508070. It has dimensions of 250mm in length, 250mm in width, and 261mm in height. This mold incorporates 2 slides and has a net weight of 93kg. It is designed with a side gate structure. The injection molding process utilizes a 100T machine and produces parts made of PC+PET material with a net weight of only 0.11g. The dimensions of the part are 10.22 x 6.70 x 10.20mm. The mold has a tool life of 500,000 shots and employs a cold runner injection type. |
Advantage
| We specialize in the production of two-plates molds with a cold runner system. These molds are designed to optimize the efficient and cost-effective mass production of plastic parts. The two-plates design allows for easy mold separation, while the cold runner system helps to reduce material waste and enhance production efficiency. Our meticulously crafted molds meet the highest industry standards, ensuring reliable performance and durability. |

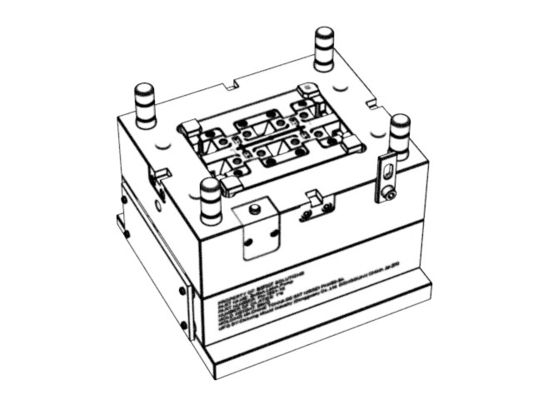

Display diagram
