Transparent Medical Instrument PN-1809 (1*4) / Two-plates mold / Cold runner No.21064-C
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X300.000 X 271.000 | IMM Tonnage | 100 T |
|---|---|---|---|
| Mold Weight | 148 Kg | Tool Life | 500000 Shots |
| Part Material | PC | Design Software | 3D:UG 4.0, 2D:CAD |
| Runner | Cold Runner | Type | Two-plates Mold |
| Steel Of Cavity And Core | Harden (1*4/S136) |
Product Description
Transparent Medical
Instrument PN-1809 (1*4)
No.21064-C
Description:
| The Two-plates mold Cold runner is a type of injection mold commonly utilized in the production of plastic components. It comprises two primary plates that shape the mold cavity and core. The cold runner system facilitates the transportation of molten plastic material to the mold cavity without the need for a heated runner. This mold type is often employed for uncomplicated part geometries and can contribute to minimizing material wastage and cycle time. |
Application:
Medical electronic accessories
Medical auxiliary equipment
Medical electronic health equipment
Smart wearable accessories
Features:

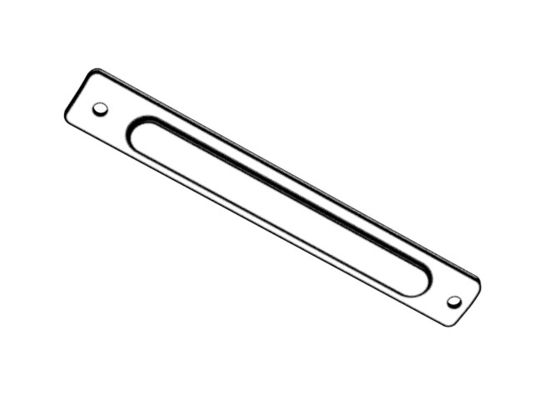

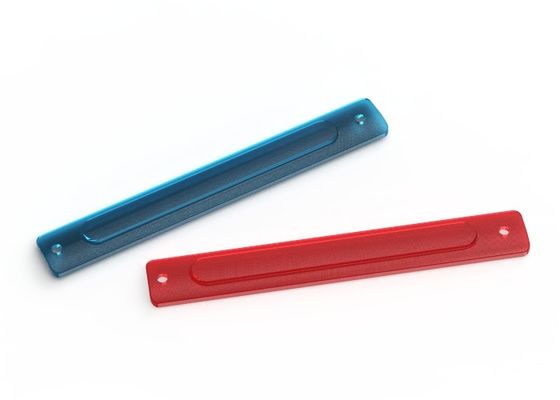

| Introducing our latest mold offering, the LKM standard mold base with the part number CI25 30.50.80.80. This mold boasts dimensions of 300mm in length, 300mm in width, and 271mm in height. It comes with an exquisite SPI-A2 surface finish, a side gate design, and utilizes 1*4/S136 mold steel for the cavity and core. With its two-plate design, this mold allows for easy degating and cost-effectiveness. It is best suited for use with a 100T injection molding machine. Our mold ensures consistent molding quality, uniform mold walls, a high-gloss finish, well-balanced cavity pressure, and a prolonged tool life for mass production. The resulting parts exhibit uniform thickness without any flow marks. The material used for the parts is PC, and the mold boasts a tool life of 500k shots. It operates with a cold runner injection/runner type. The part weight is 0.6g, and the part size measures 7.65 X 57.56 X 2.87mm. |
Advantage:
| We utilize a two-plates mold with a cold runner system. This mold design comprises two main plates that move apart to release the molded part. The cold runner system ensures that the material for the molded part remains cold and solidified within the mold, thereby reducing material waste and enhancing production efficiency. This mold type is commonly employed for high-volume production of plastic parts requiring a runner system to deliver the molten material to the cavities. The two-plates design enables easy demolding and is a cost-effective solution for mass production. |

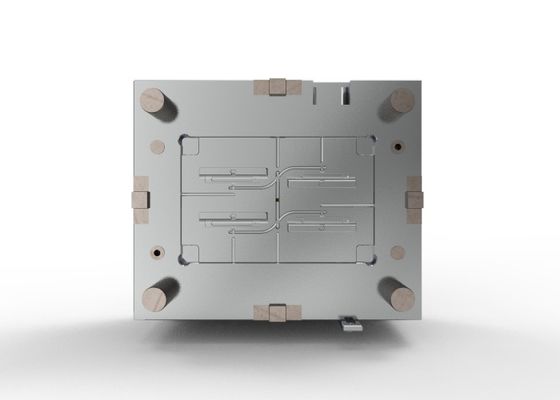

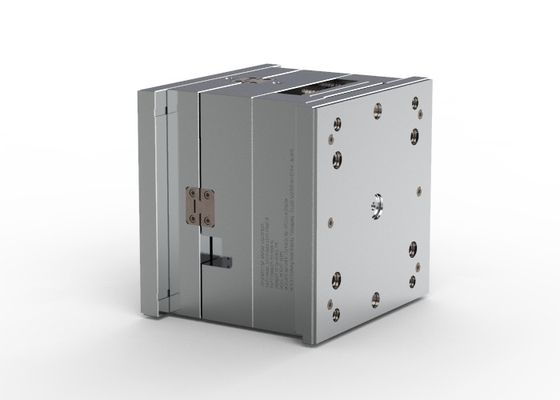

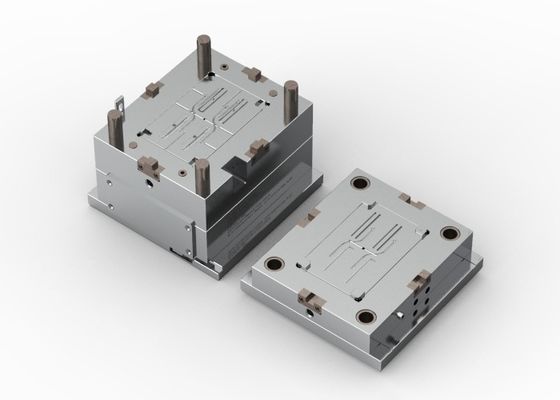

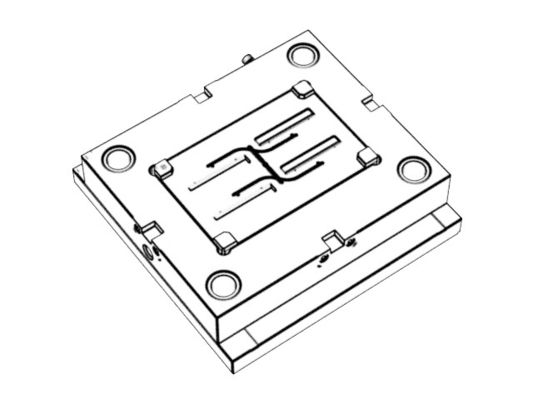

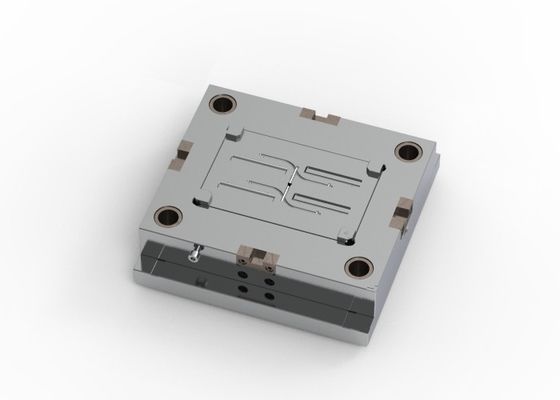

Display diagram
