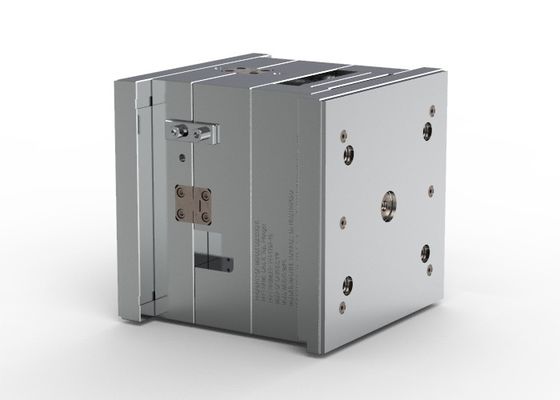

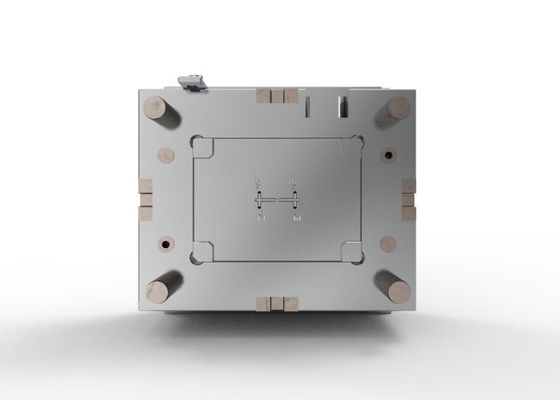

Medical Instrument PN-1797 (1*4) Two-Plates Mold Cold Runner No.21065-C
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Life | ≥500000 Shots | Surface Finish | SPI B-2 |

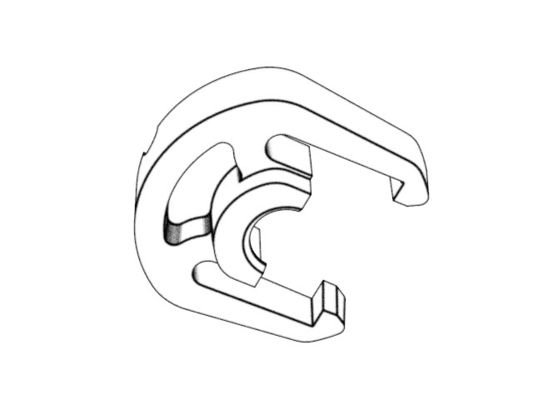

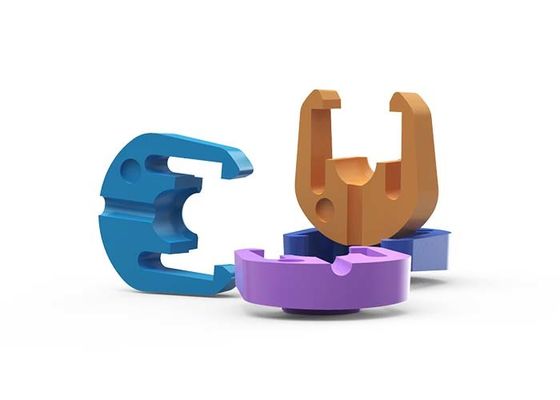

| Part Material | PC | Part Size | 8.24 X 8.21 X 2.72 Mm |
| Part Weight | 0.22g | ||
| High Light | Medical Instrument Precision Injection Molding,SPI B-2 Precision Injection Molding,Two-Plates Mold Cold Runner |
||
Product Description
Medical Instrument PN-1797 (1*4)
No.21065-C
Description:
| The Two-plates mold Cold runner is a commonly employed injection mold in the manufacturing sector. It comprises two primary plates that shape the mold's cavity and core. The cold runner system denotes the technique of conveying molten material to the mold cavity sans the use of a heated runner. This mold type is frequently utilized for uncomplicated part geometries and can aid in diminishing material wastage and cycle time. |
Application:
Medical electronics
Medical instrument accessories
Electronic product accessories
Electronic product casing
Daily product accessories
Features:

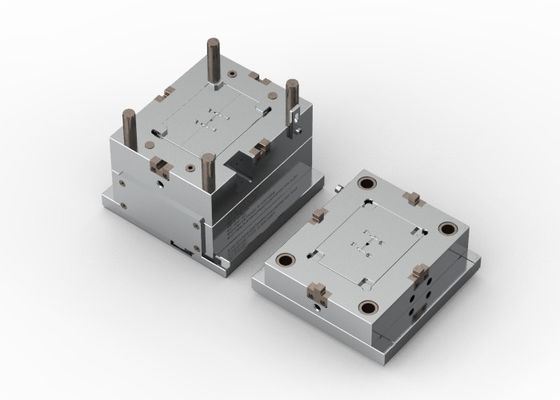

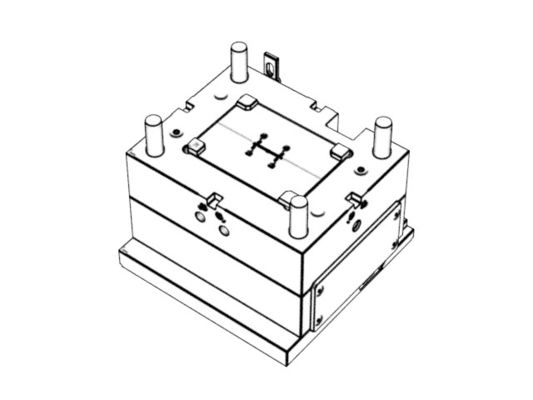

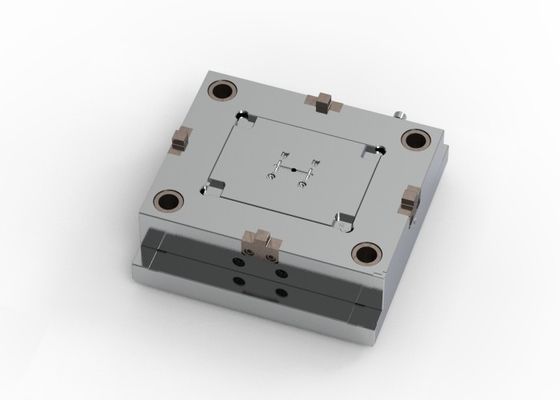

| Our latest mold product, the LKM standard mold base with part number CI2025.507070. This mold boasts dimensions of 250mm length, 250mm width, and 251mm height. It operates as a two-plate mold with a side gate and cashew gate, ensuring automatic part separation upon mold opening. With a focus on efficiency, this mold offers a short cycle time, easy filling, smooth demolding, and cost-effectiveness, perfectly aligning with our customers' requirements. It has an impressive mold life of up to 500k shots. Additionally, it features a cold runner system and is compatible with an injection molding machine (IMM) tonnage of 100 tons. The mold weighs 94 kg and is polished to SPI B-2 standards. The injection-molded part, made of PC material, weighs 0.22g and measures 8.24 x 8.21 x 2.72mm. The cavity and core steel are constructed from 1*4/S136 mold steel, providing enhanced surface smoothness, wear resistance, and corrosion resistance. |
Advantage:
| Our company specializes in the production of Two-plates mold Cold runner, a type of injection mold widely used in various manufacturing processes. This type of mold is known for its efficiency in producing simple part geometries and reducing material waste. The Two-plates mold Cold runner is designed to optimize the manufacturing process by delivering molten material to the mold cavity without the need for a heated runner, thus streamlining production and minimizing cycle time. With our advanced manufacturing techniques and quality control processes, we ensure that our Two-plates mold Cold runner meets the highest industry standards. |
Display diagram
