OEM / ODM Earphone Terminal (1*8) No.23570-D
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 110.000 X 330.000 X 125.000 | IMM Tonnage | 60T |
|---|---|---|---|
| Mold Weight | 27.54kg | Standard | LKM |
| Type | Two-plates Mold | Slide | 2 |
| Part Material | PA | Gate | Sub Gate |
| Design Software | <3D:UG 4.0>/ <2D:CAD> | ||
| High Light | Earphone Terminal 1X8,ODM Earphone Terminal,Earphone Terminal Precision Injection Molding |
||
Product Description

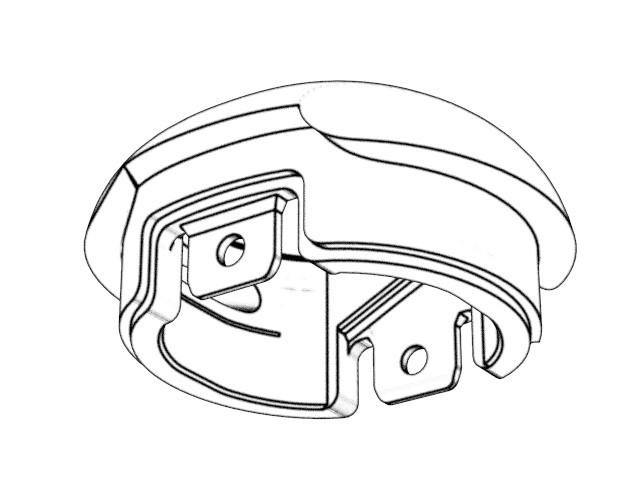

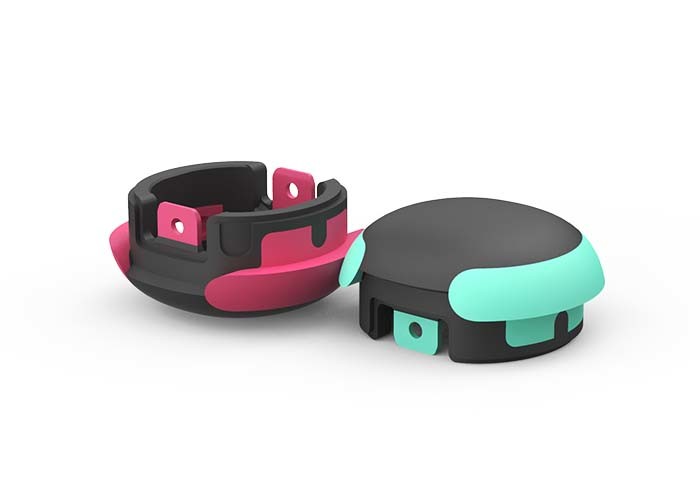

Earphone terminal (1*8)
No.23570-D

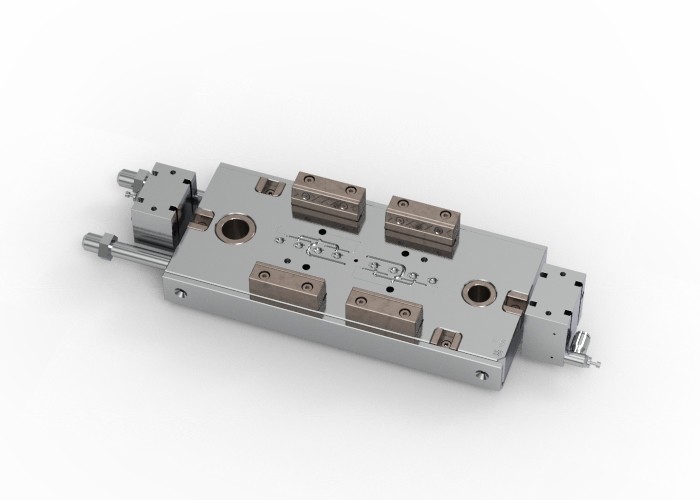

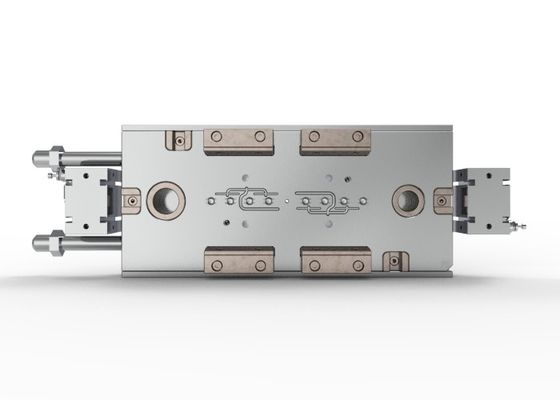

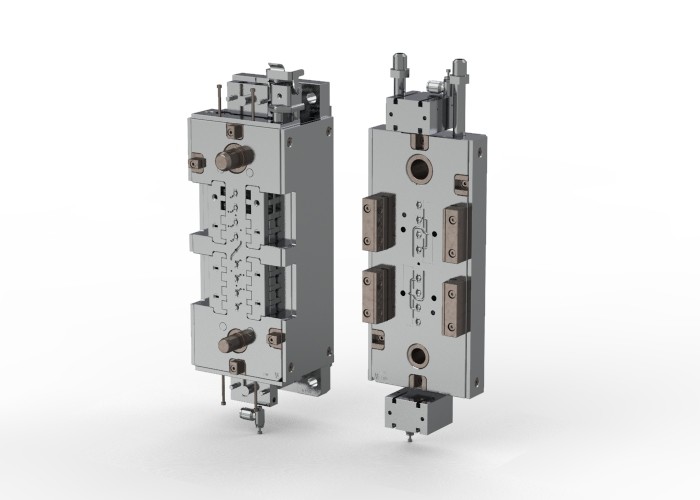

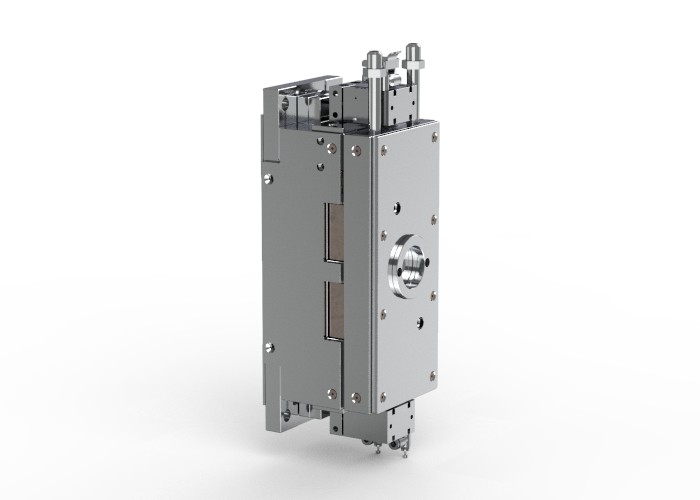

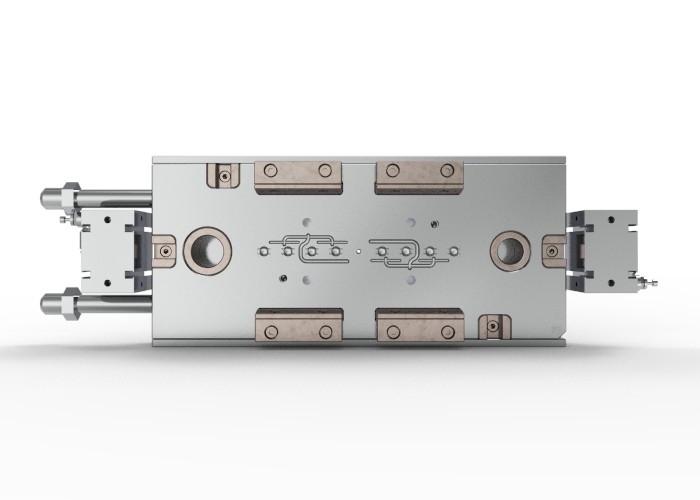

| The mold dimensions of 110 X 330 X 125mm, type as a two-plates mold with a standard gate. The LKM sub gate mold has a net weight of 27.54kg, 2 slides, and cavity & core hardened with 1*8/S136. The part material/weight is PA/0.03g, with a part size of 6.21 X 5.61 X 2.91mm. |
| The IMM Tonnage is 60T. The two-plate mold design features a cold runner and two slides for cost-effectiveness and feasibility. The surface is polished to SPI-A3, hardened for improved smoothness, hardness, anti-wearing, and anti-corrosion properties to prevent sticking of molten PA. |
| The molded parts exhibit short cycle times, minimized material loss, complete and smooth appearance, low cost, and high quality. |

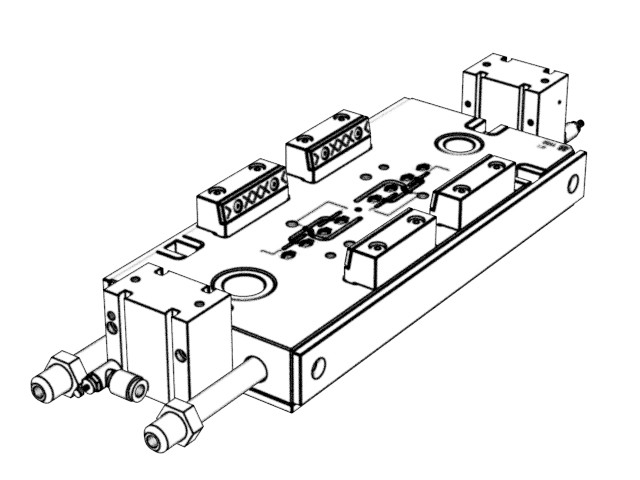

Display diagram
