OEM / ODM ：Transparent Earphone Terminal (1*8) No.23570-D
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| IMM Tonnage | 60 (T) | Mold Weight | 27.54(kg) |
|---|---|---|---|
| Gate | Sub Gate | Type | Two-plates Mold |
| Slide | 2 | Cavity/Core | Harden With 1*8/S136 |
| Part Size | 6.21 X 5.61 X 2.91mm | Part Weight | 0.03g |
| High Light | Transparent Earphone Terminal,ODM Transparent Earphone Terminal,Earphone Terminal Injection Molding |
||
Product Description

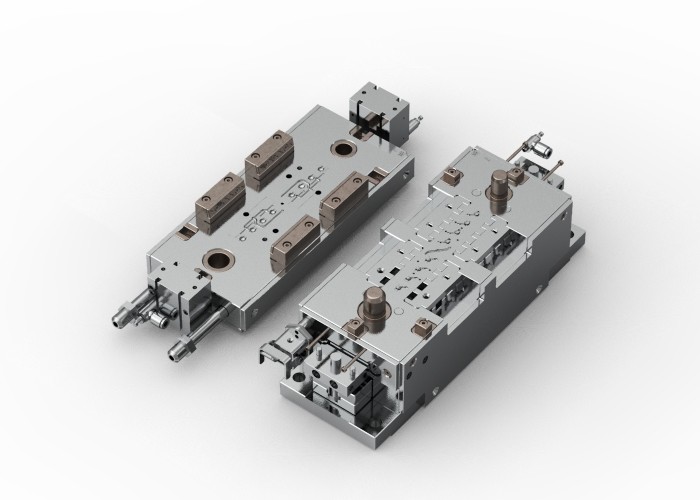

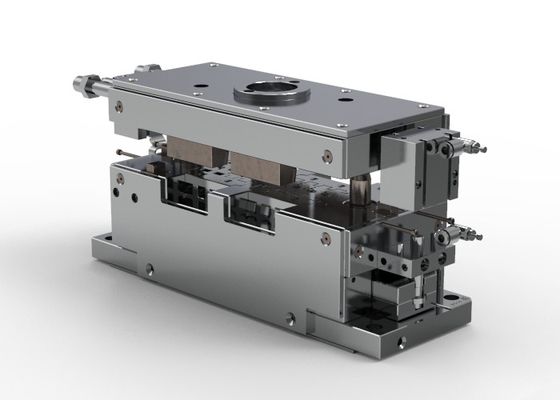

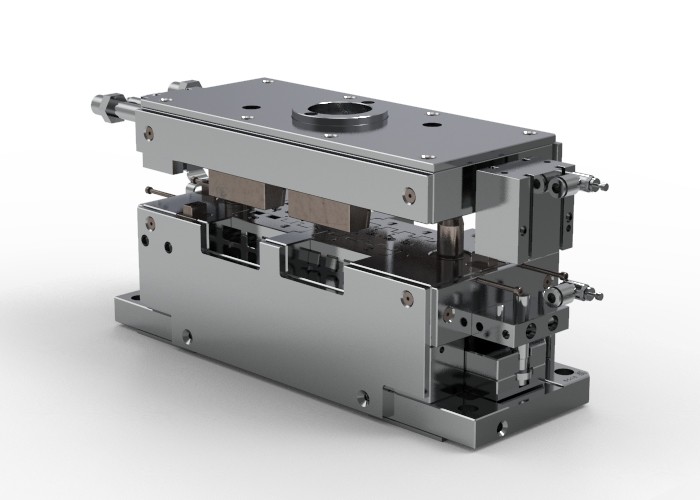

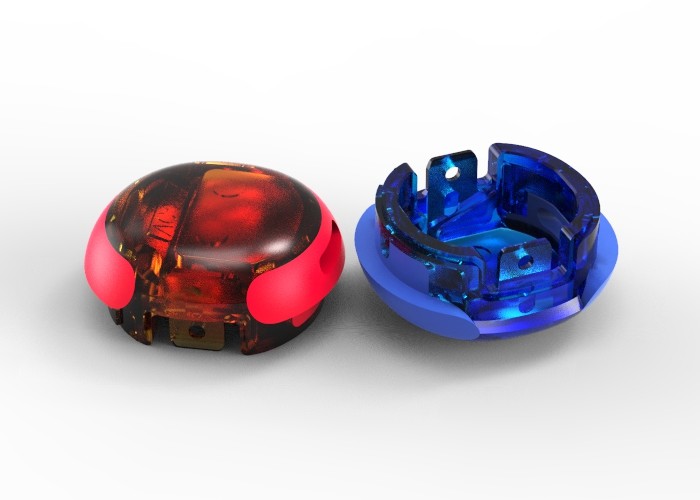

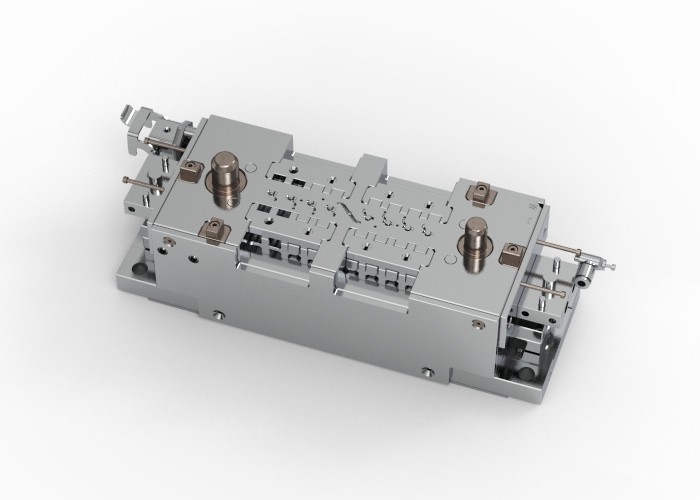

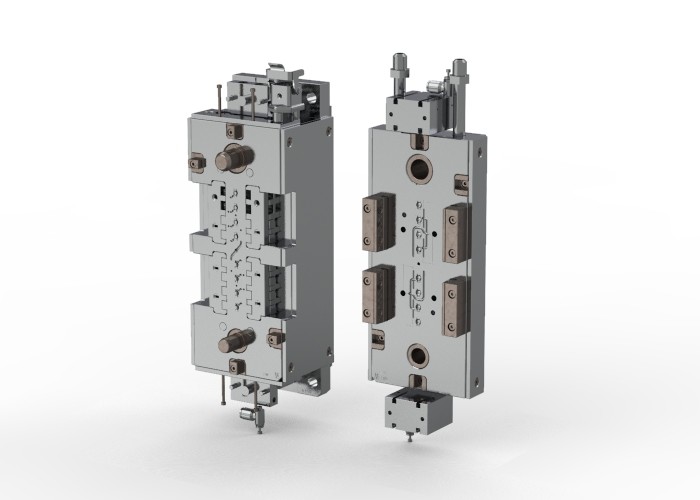

Transparent Earphone Terminal (1*8)
No.23570-D
Mold dimensions: 110x330x125mm
Standard: LKM
Mold Type: Two-plate mold
Number of slides: 2
Net weight of the mold: 27.54kg
IMM Tonnage: 60T
|
The two-plate mold is equipped with a cold runner system, which reduces the labor and time cost during the early stages of R&D and design. |
Gate: Sub gate
Part material: PA
Cavity/Core material: Hardened with 1*8/S136
| The surfaces of the mold are polished to SPI-A3 standard. Additionally, the cavity and core are hardened to enhance their hardness, wear resistance, and corrosion resistance. The mold's uniform wall thickness ensures a perfect fit for the molten PA material, resulting in molded parts with stable quality, absence of sink marks, uniform thickness, and precise thread formation. |

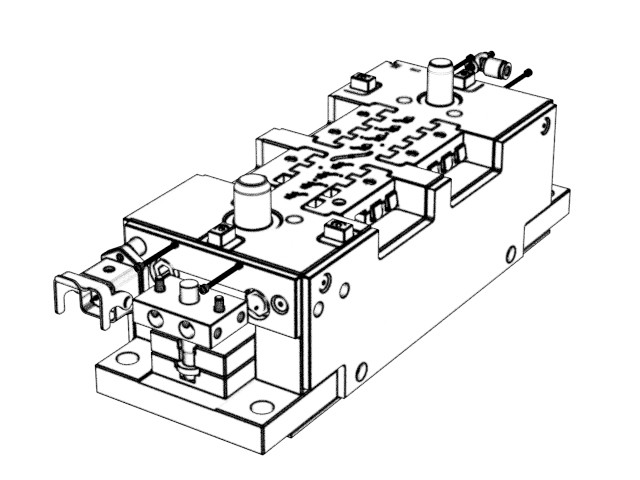

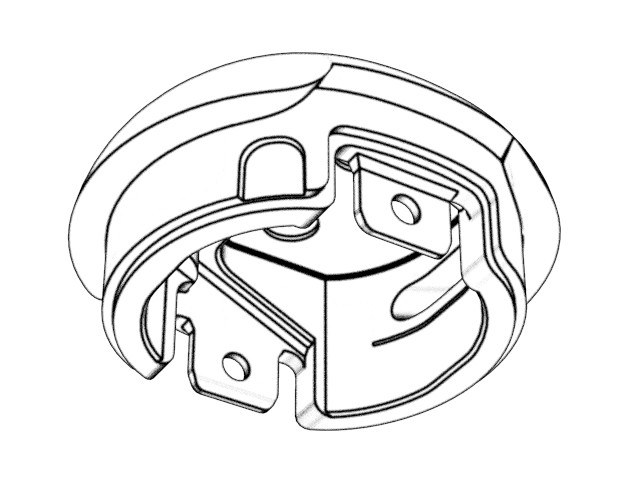

Display diagram
