OEM / ODM Single Cavity Injection Mold Transparent POA Rear Pad 1*1 No 22730-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 450 X 456 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 520kg | Gate | Cashew Gate |
| Design Software | 3D:UG 4.0, 2D:CAD | Mould Base | LKM |
| Runner | Cold Runner | Mould Life | ≥500000 Shots |
| High Light | ODM transparent POA Rear Pad,Single Cavity Injection Mold Transparent Pad,Rear Pad Single Cavity Injection Mold |
||
Product Description
Transparent POA Rear Pad (1*1)
No.22730-C
| The mold measures 400mm in length, 450mm in width, and 456mm in height. It is a two-plates mold equipped with a cold runner system. The mold base is of standard quality, featuring precise machining and a well-thought-out design that reduces heat loss. A cashew gate is utilized as the gate system. The mold has a tool life of up to 500,000 shots. The surface finish is achieved using A surface EDM to VDI27# standard. Manufactured according to LKM standard, the mold's cavity and core are constructed from hardened steel (1*1/S136). |
|
The mold has measurements of 400mm in length, 450mm in width, and 456mm in height. Notable features of the mold include 1 slide, a particle-free surface, and a precise fit. The runner can be reground and recycled, effectively reducing plastic waste. The mold is designed with a standard mold base (CI3545) with dimensions A = 70, B = 140, and C = 120. Its net weight is 520kg, making it suitable for a 110T machine. As for the injection molding parameters, the molded part is composed of TPU A80 material. The dimensions of the molded part are approximately 158.75mm x 127.54mm x 50.81mm, with a weight of 58g. |
| Kindly be advised that the parameters mentioned are tailored to the mold and injection molding process you referenced. |

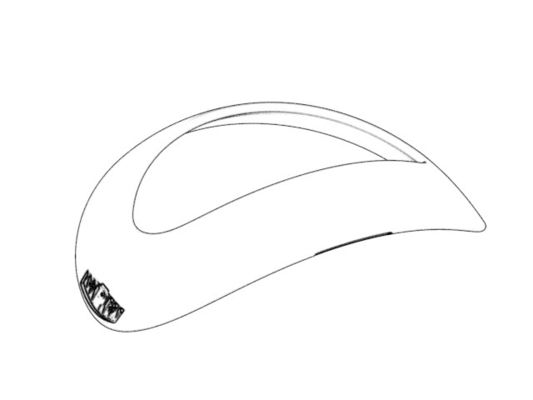

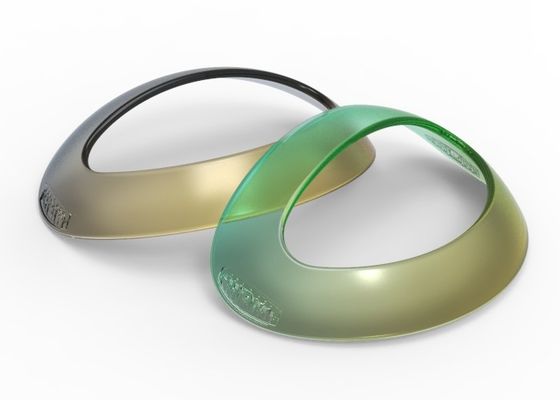

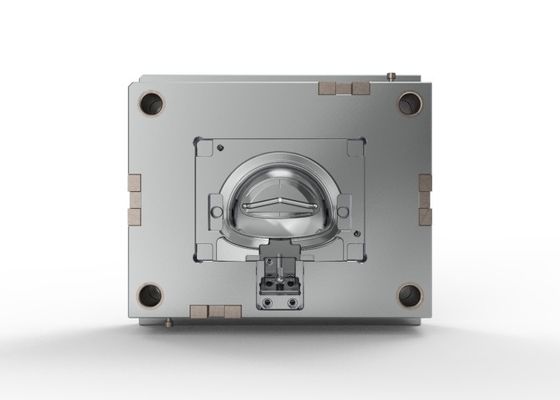

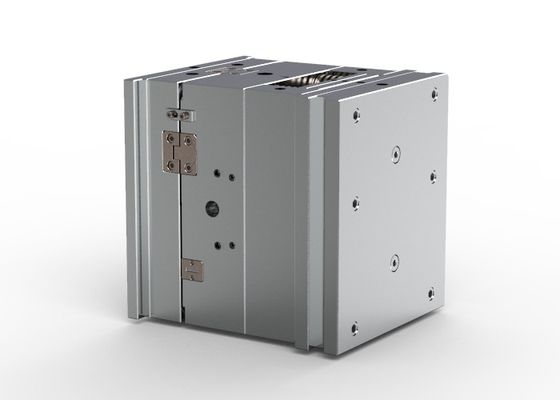

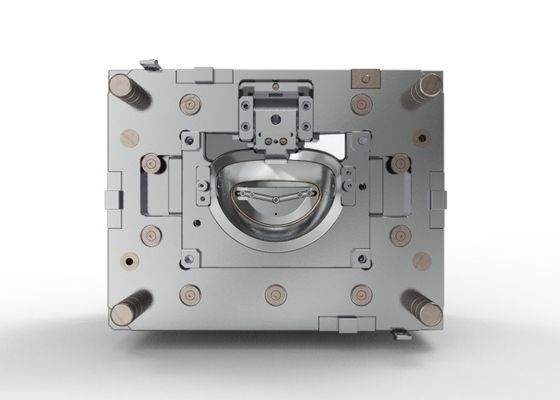

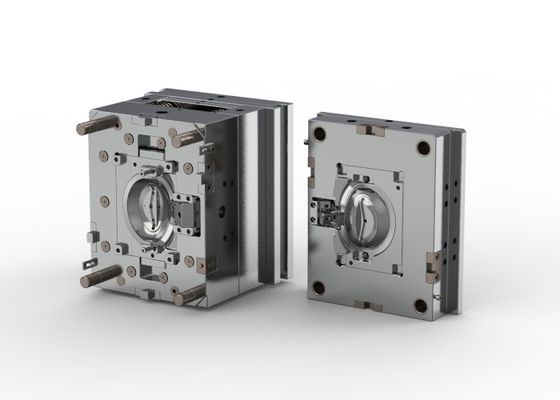

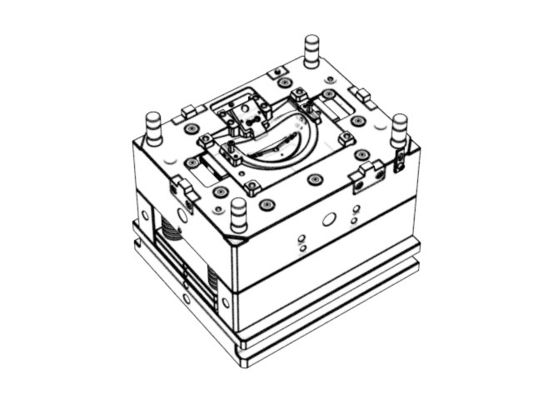

Display diagram
|
The mold has dimensions of 400mm in length, 450mm in width, and 456mm in height. It is a two-plates mold with a cold runner system. The mold base is standard, with good machining and a scientific design that minimizes heat loss. The gate used is a cashew gate. The tool life of the mold is up to 500,000 shots. The surface finish is achieved through A surface EDM to VDI27# standard. The mold is made with LKM standard and the cavity and core are made of hardened steel (1*1/S136).
The mold features include 1 slide, a surface free from particles, and a good fit. The runner can be reground and recycled, reducing plastic waste. The mold is designed with a standard mold base (CI3545) with dimensions A = 70, B = 140, and C = 120. The net weight of the mold is 520kg, suitable for a 110T machine.
For the injection molding parameters, the molded part is made of TPU A80 material. The size of the molded part is approximately 158.75mm x 127.54mm x 50.81mm, and it weighs 58g.
Please note that these parameters are specific to the mold and injection molding process you mentioned.
|
