OEM / ODM Single Cavity Injection Mold POA Rear Pad 1*1 No 22730-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 450 X 456 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 520kg | Gate | Cashew Gate |
| Net Weight | 520kg | Part Material | TPU A80 |
| Type | Two-plates Mold | Cavity | Harden (1*1/S136) |
| Core | Harden (1*1/S136) | ||
| High Light | Injection Mold POA Rear Pad,Single Cavity Injection Mold Rear Pad,Single Cavity Injection Mold POA Pad |
||
Product Description
POA Rear Pad (1*1)
No.22730-C

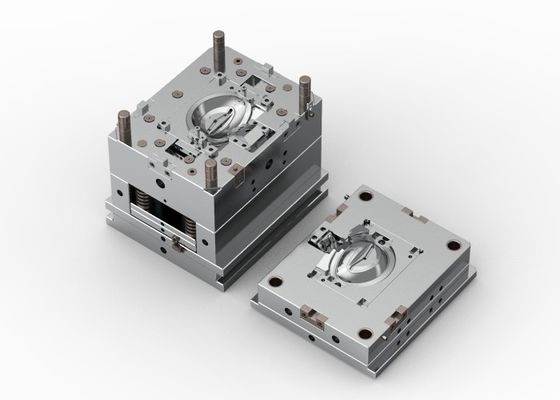

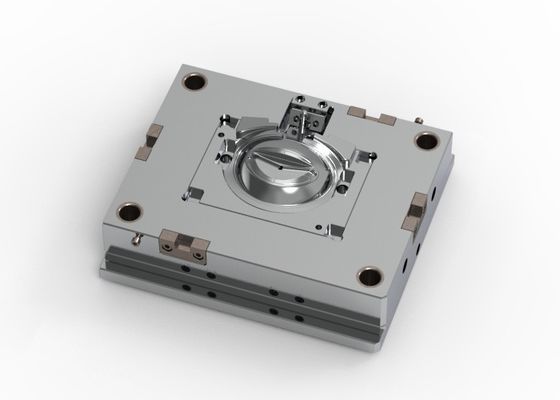

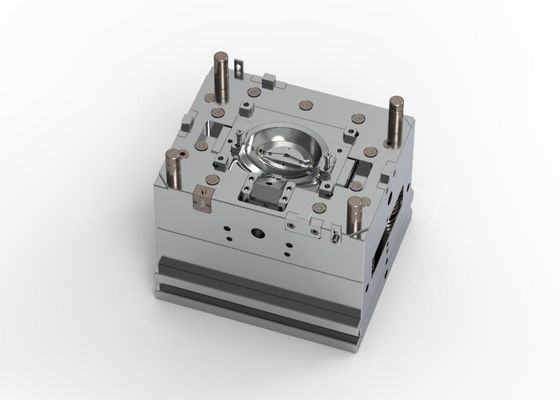

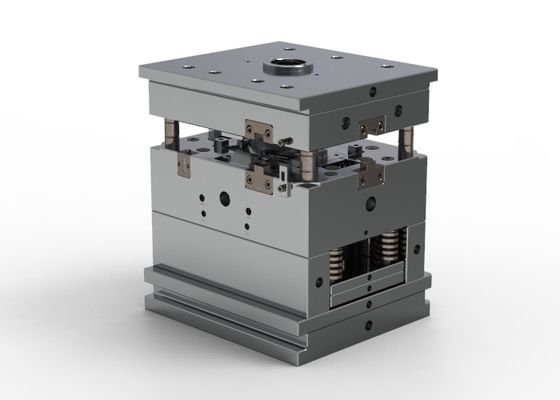

| The mold is constructed using a standard mold base (CI3545) with dimensions A = 70, B = 140, and C = 120. It has a hardened surface and has undergone thorough quality checks to ensure precise results and a tool longevity of up to 500,000 shots. The mold boasts exceptional sealing capabilities with no risk of overflow. Measuring 400 x 450 x 456mm, it features a cashew gate and weighs 520kg. This two-plates mold has an A surface EDM finish to VDI27# standard. The cavity and core are crafted from hardened material (1*1/S136) and employs a cold runner system. |

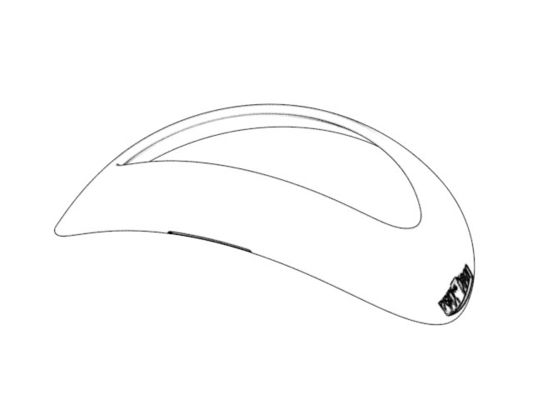

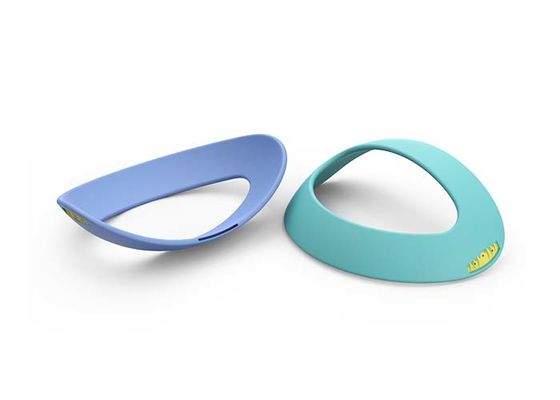

| The part material used for injection molding is TPU A80, weighing 58g and having dimensions of 158.75 x 127.54 x 50.81mm. |

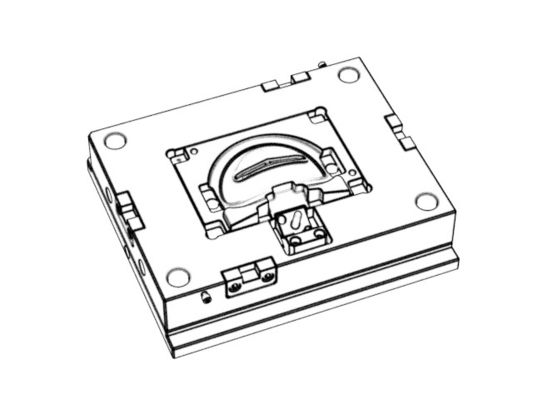

Display diagram
