OEM / ODM Precision Injection Molding VR Knob Control Shaft No 22732-C
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.00 X 300.00 X 316.00mm | IMM Tonnage | 80（T） |
|---|---|---|---|
| Mold Weight | 145（kg） | Material | EcoPaXX-Q-KS |
| Design Software | 3D:UG 4.0, 2D:CAD | Mould Life | ≥500000 Shots |
| Type | Three-plates Mold | Surface Finish | Polishing |
| Runner | Cold Runner | ||
| High Light | OEM VR Knob Control Shaft,Precision Injection Molding VR Knob Shaft |
||
Product Description
VR knob control shaft (1*4)
No.22732-C

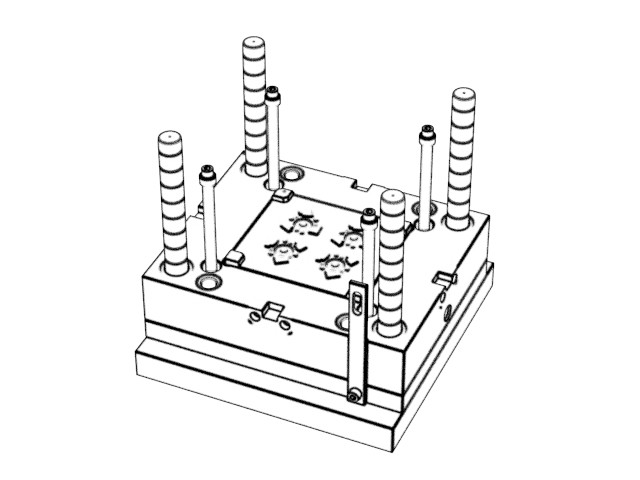

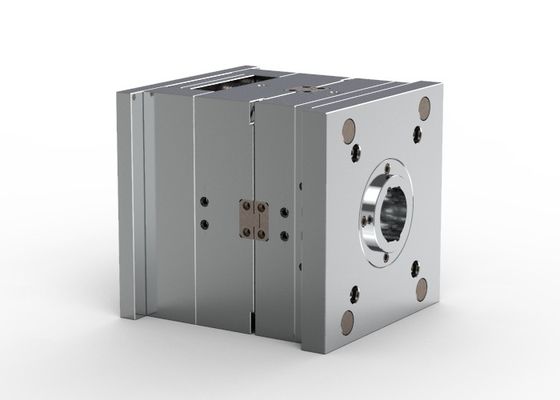

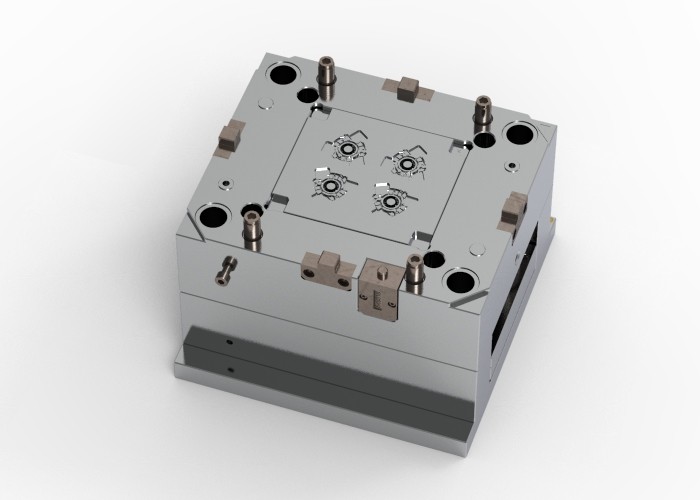

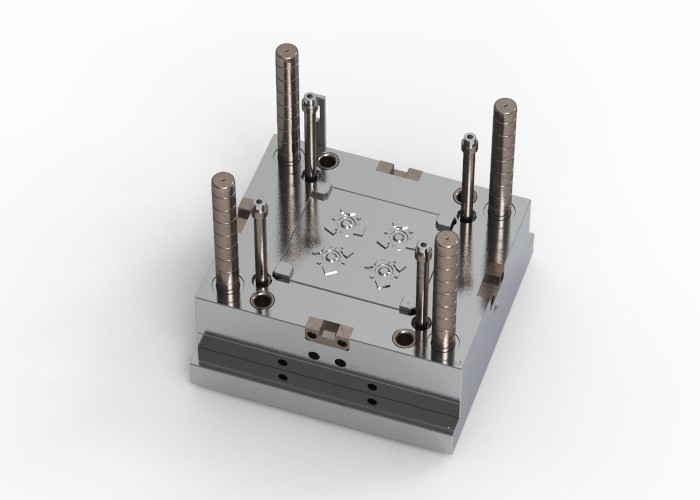

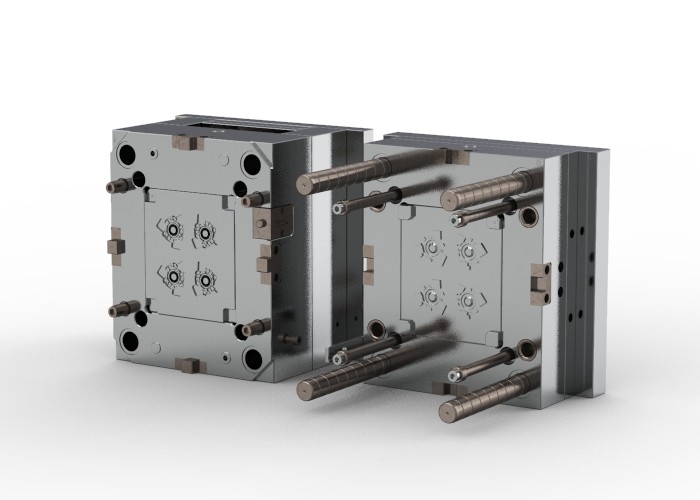

| This particular mold is specifically created to manufacture knob control shafts for VR eyeglasses. It is equipped with a cold runner system and has a mold size of (L)300.00 X (W)300.00 X (H)316mm. The mold base utilized is a standard mold base with a pin point gate. With an impressive tool life of 500,000 shots, this three-plate mold includes a core insert and serrated wire cutting. The mold itself weighs 145kg and necessitates a molding tonnage of 80T. |

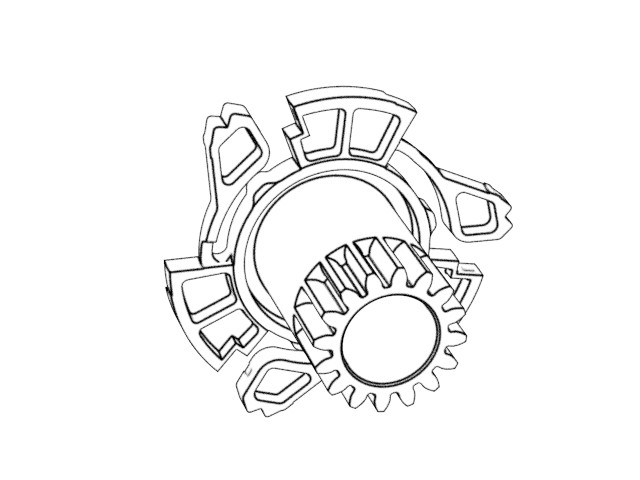

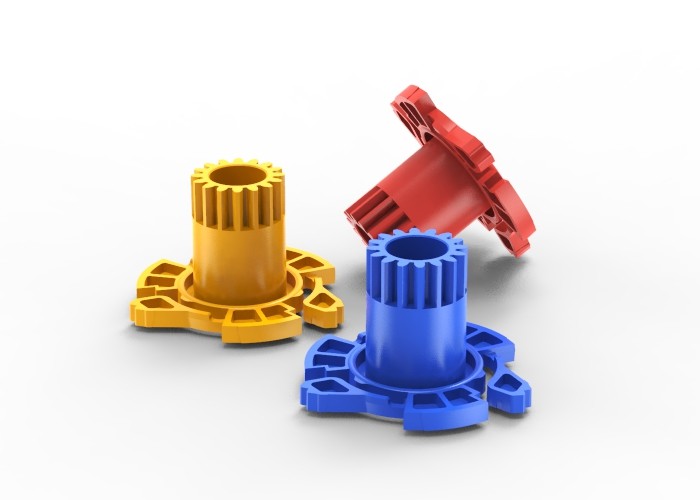

| The injection component, crafted from EcoPaXX-Q-KS material, measures 33.63mm X 35.01mm X 22.26mm and weighs 4g. The injection component's surface has been polished, and the mold conforms to LKM standards. |
Display diagram
