OEM / ODM Transparent On-board Universal Joint Ball Head (1*4) No.24118-C
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.000 X 500.000 X 482 | IMM Tonnage | 220T |
|---|---|---|---|
| Mold Weight | 122kg | Standard | LKM |
| Type | Three-plates Mold | Net Weight | 122kg |
| Mold Base P/N | FCI405070120100 | Gate | Pin Point Gate |
| High Light | 1*4 Universal Joint Ball Head,Transparent Universal Joint Ball Head,Universal Joint Ball Head ODM |
||
Product Description
Transparent On-board
Universal Joint Ball Head (1*4)
No.24118-C
Description:
| Our company is dedicated to manufacturing Multi Cavity Injection Molds, which are specifically designed to allow the production of multiple identical parts simultaneously in a single molding cycle. These molds are intricately engineered to guarantee consistent part quality and uniformity across all cavities, resulting in improved production efficiency and reduced cycle times. The robust construction of our Multi Cavity Injection Molds ensures long-lasting durability and reliability, leading to cost savings and the ability to sustain high-volume manufacturing. Additionally, our molds can be customized to accommodate a wide range of part geometries and material specifications, providing versatility and adaptability to meet diverse production requirements. |
Application:
plastic hardware
Joining injection molded components
Everyday essentials
Industrial products made through injection molding
Features:
| Standard | LKM | |
| Type | Three-plates mold | |
| Net weight | 122kg | |
| Mold base P/N | FCI405070120100 | |
| IMM Tonnage | 220 | |
| Mold size | Length | 450 |
| Width | 500 | |
| Height | 482 | |
| Gate | Pin point gate(The gate is automatically cut off, with small trace) | |
| Tool life | 500k shots | |
| Surface finish | Inner surface treated with SPI-B2 | |
| With polished, molded part get smooth and accurate surface. | ||
| Steel of cavity & core | Harden (1*4/S136) | |
|
Harded cavity and core, high hardness and anti-wearing, anti-corrosion. |
||
| Part material | PC | |
| Part weight/size | 0.01g/4.97 X 4.97 X 0.60mm | |
| Injection/runner type | Hot runner | |
Advantage:
| Our Multi Cavity Injection Molds are designed with precision to streamline the manufacturing process. By allowing for the simultaneous creation of multiple identical parts in one molding cycle, these molds significantly boost production efficiency and cut down on lead times. The meticulous engineering of our molds ensures uniform part quality across all cavities, resulting in top-notch finished products. Furthermore, the durable construction of our Multi Cavity Injection Molds ensures longevity and dependability, leading to cost-effectiveness and sustained high-volume manufacturing capabilities. In addition, the customizable features of our molds make it possible to accommodate various part geometries and material specifications, offering flexibility to meet a wide array of production requirements. |

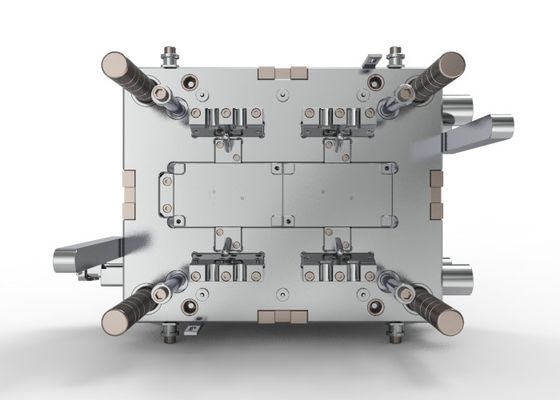

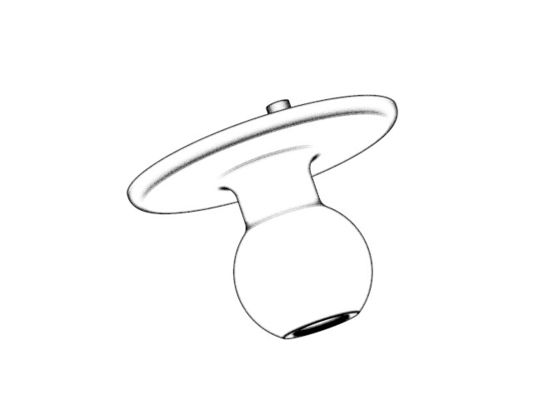

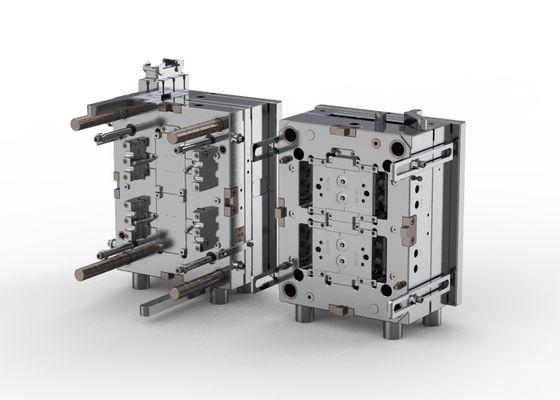

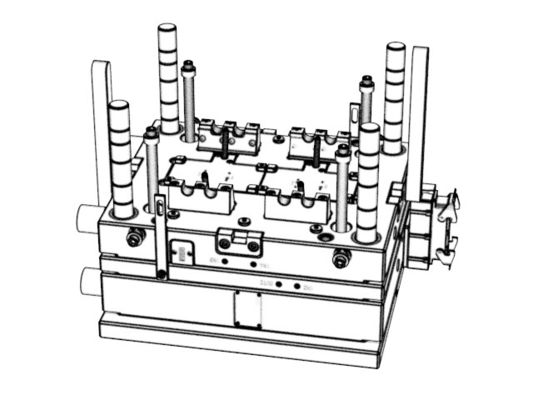

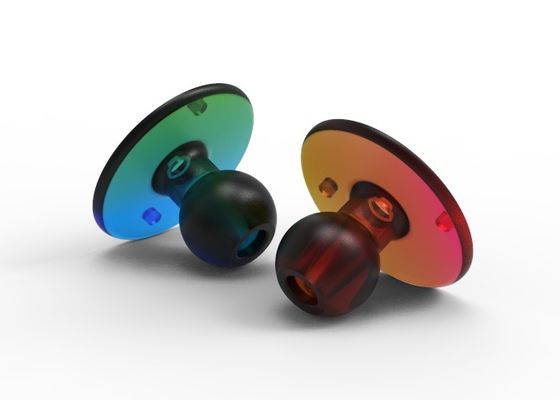

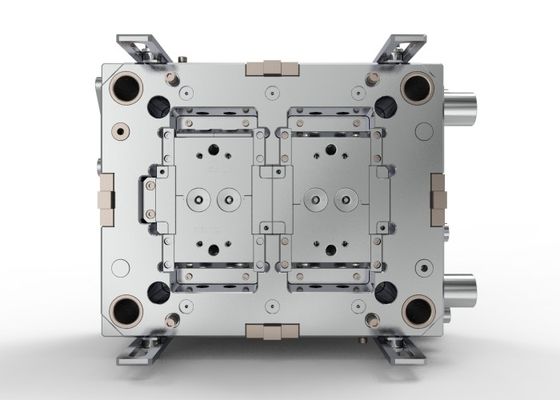

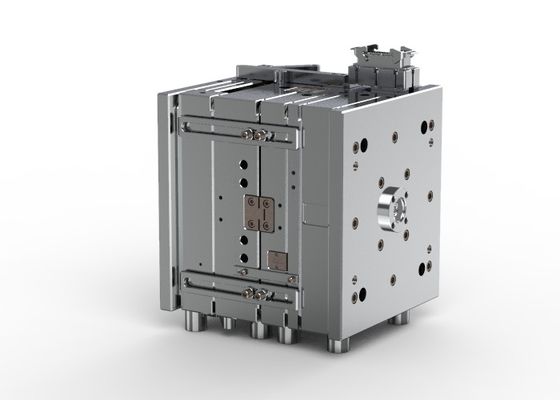

Display diagram
