OEM / ODM Injection Mold Transparent On-board Clamp Bracket (1*8) No.24119-C
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 350.000 X 452 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 141kg | Mold Life | 500K Shots |
| Part Material | PC | Part Weight | 0.08g |
| Lifter | 2 | Type | Three-plates Mold |
| Standard | LKM | ||
| High Light | Transparent On-board Clamp Bracket,OEM On-board Clamp Bracket,Injection Mold On-board Clamp Bracket |
||
Product Description

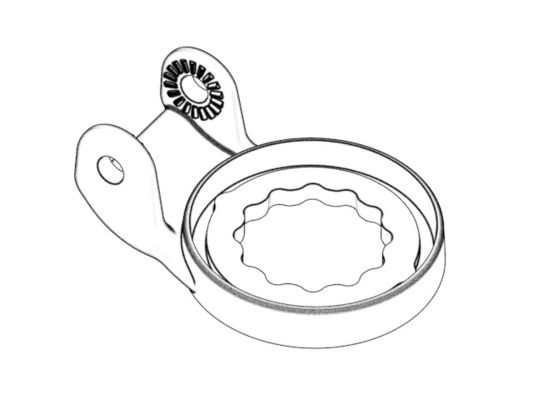

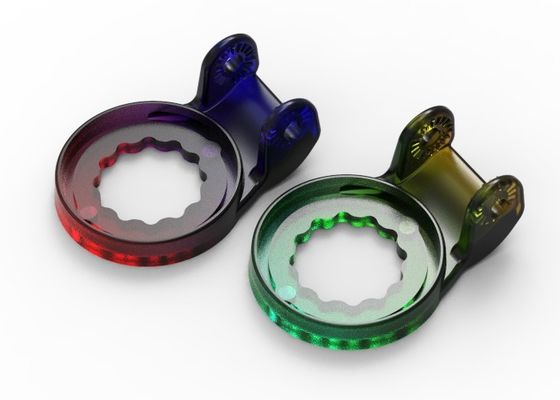

Transparent On-board Clamp Bracket (1*8)
No.24119-C
Description:
|
Our Multi Cavity Injection Molds are expertly crafted to allow for the simultaneous manufacturing of numerous identical parts in one molding cycle. This precise design guarantees consistent part quality and uniformity across all cavities, enhancing production efficiency and minimizing cycle times. The robust build of our molds ensures durability and dependability, resulting in cost-effectiveness and continuous high-volume production capabilities. Additionally, our molds can be tailored to suit various part shapes and material needs, offering flexibility to fulfill a variety of production demands. |
Application:
Mounting clamp bracket
plastic components
Assembling injection molded pieces.
Features:
| Mold base P/N | FCI3035 6012090 | |
| Type | Three-plates mold | |
| IMM Tonnage | 100T | |
| Standard | LKM | |
| Lifter | 2 | |
| Net weight | 141kg | |
| Mold size | Length | 350 |
| Width | 350 | |
| Height | 452 | |
| Mold life | 500K shots | |
| Part material | PC | |
| Part weight | 0.08g | |
| Part size | 350.000 X 350.000 X 452 mm | |
| Injection/runner type | Hot runner | |
|
This hot runner mold ensures that the melt enters the cavity with uniform pressure, resulting in proper cavity filling. The molded part exhibits consistent density and stable quality, with a good cosmetic finish. The mold fits well, producing molded parts without any flow marks. |
||
| Surface finish | A surface EDM with Charmilles VDI24# | |
| Steel of cavity & core | Harden (1*8/S136) | |
|
The Charmilles VDI24# surface EDM offers excellent roughness, resulting in molded parts with finer, smoother, and clearer surfaces. Both the cavity and core are hardened to achieve high hardness, anti-corrosion, and anti-wearing properties, effectively preventing oxidation and decarburization. |
||
Advantage:
| Our company's Multi Cavity Injection Molds are designed with utmost care to optimize the manufacturing process. By enabling the simultaneous production of multiple identical parts within a single molding cycle, these molds greatly improve production efficiency and reduce lead times. The precise engineering of our molds ensures consistent part quality across all cavities, resulting in top-notch finished products. Furthermore, the sturdy construction of our Multi Cavity Injection Molds guarantees durability and reliability, leading to cost savings and the ability to sustain high-volume manufacturing. Moreover, the customizable nature of our molds allows for the accommodation of various part geometries and material specifications, providing flexibility to meet a wide range of production requirements. |

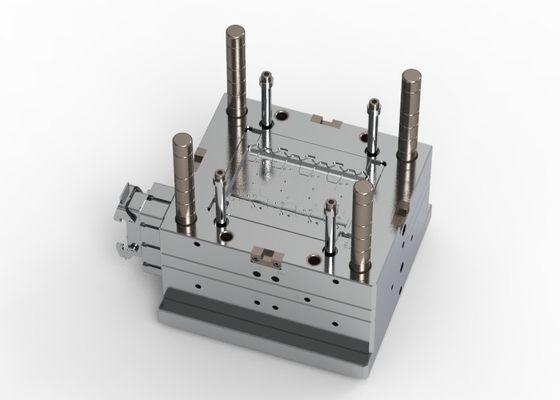

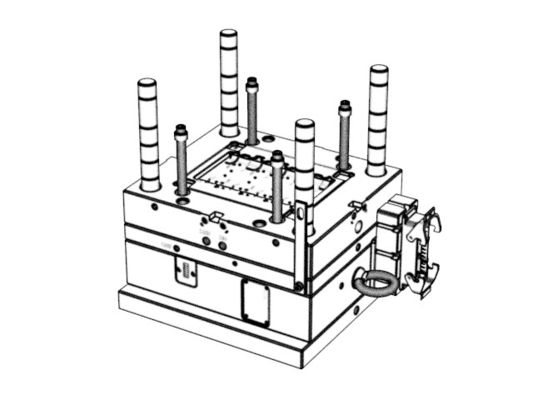

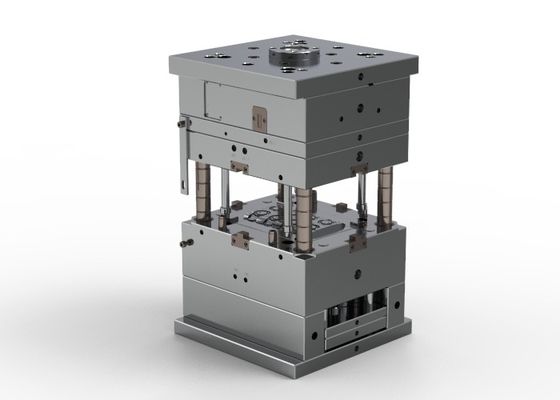

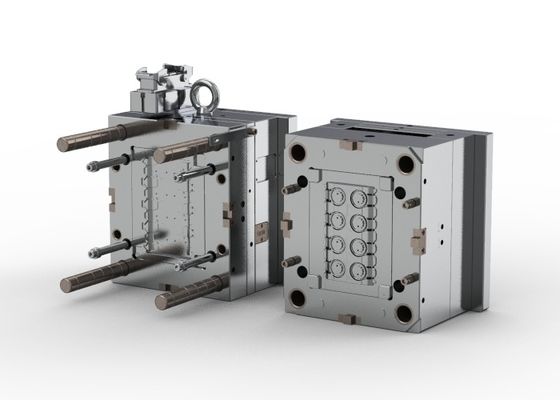

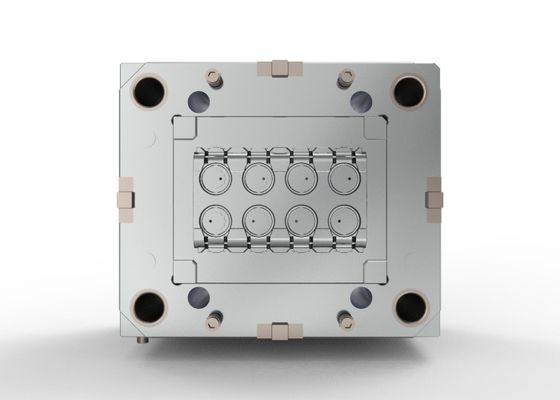

Display diagram
| [Mold life] | 500K shots | ||||
| [Part material] | PC | ||||
| [Part weight] | 0.08g | ||||
| [Part size] | 350.000 X 350.000 X 452 mm |
||||
