OEM/ODM Custom Consumer Electronics Molds Earphone Left Rear Cover Inner Bracket (1*8) No.24213
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250 X 250 X 241 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 92KG | Material | PC |
| Design Software | 3D:UG 4.0, 2D:CAD | Mould Life | ≥500000 Shots |
| Gate | Side Gate | Type | Two-plates Mold |
| Surface Finish | VDI24# | ||
| High Light | ODM Consumer Electronics Molds,Earphone Consumer Electronics Molds,OEM Consumer Electronics Molds |
||
Product Description
Earphone left rear
cover inner bracket (1*8)
No.24213
Mold Introduction
| The mold in question has been meticulously developed, designed, and manufactured by Chitwing following the LKM standard. It boasts several key features that make it an excellent choice for production: |
Tool Life and Efficiency:
The mold is engineered for longevity, with a tool life of up to 500,000 shots.
It ensures short cycle times, optimizing production efficiency.
Cold slug formation is minimized, contributing to smoother operations.
The overall production cost is kept low.
Standard Mold Base:
The mold base part number (P/N) is CI2020.507060.
Mold Dimensions:
Length: 250 mm
Width: 250 mm
Height: 241 mm
Mold Net Weight:
The mold weighs 92 kg.
Injection Molding Machine (IMM) Tonnage:
The recommended IMM tonnage for this mold is 100 tons.
Injection/Runner Type:
The mold utilizes a cold runner system.
The gate is positioned on the side.
Mold Structure:
It follows a two-plates mold design.
Surface Treatment:
Partial surface treatment is performed using Electrical Discharge Machining (EDM) with
a VDI24# finish.
Cavity/Core Material:
The cavity and core are made from hardened steel, specifically 1*8/S136.
Part Details:
Part Net Weight: 0.11 g
Part Size: 5.99 mm (length) x 2.7 mm (width) x 27.25 mm (height)
| This mold is well-suited for precision manufacturing and meets industry standards. Its thoughtful design and material choices ensure reliable performance during production processes. If you have any further inquiries or need additional details, feel free to ask! |

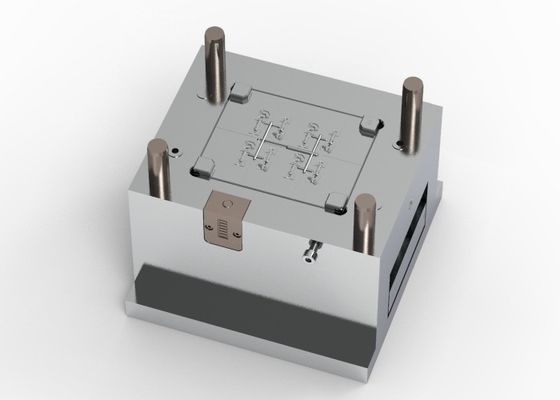

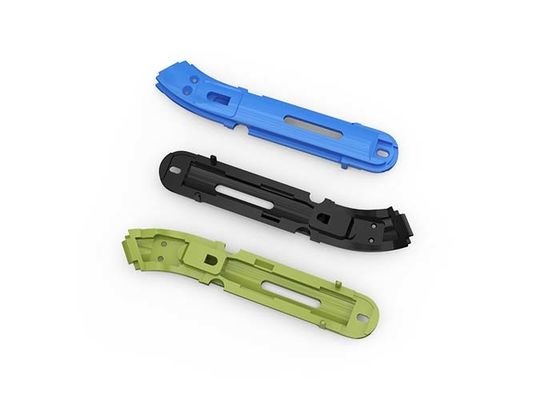

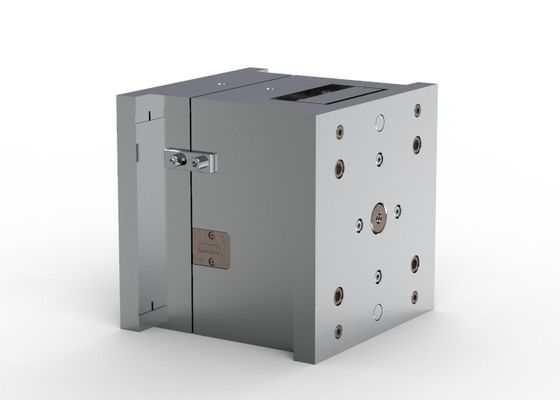

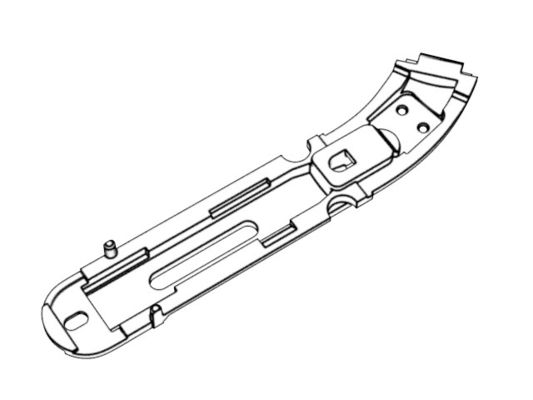

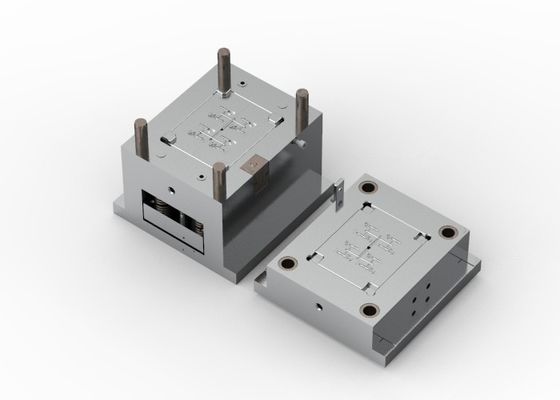

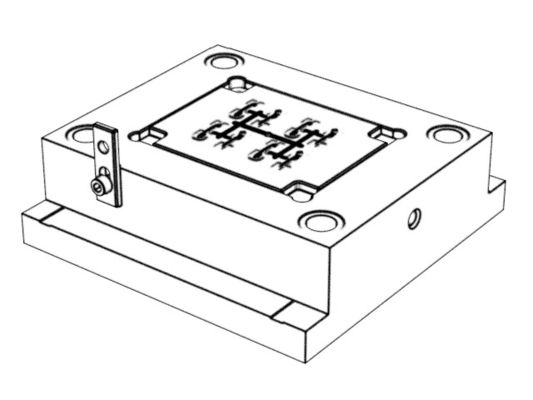

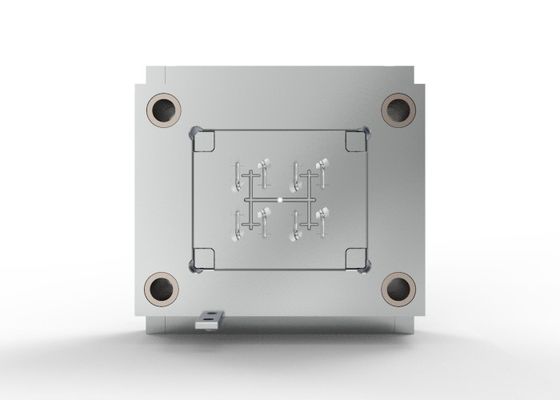

Display diagram
