OEM/ODM : Custom consumer electronics molds / Back cover (1*1) No.22958
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450 X 500 X 431 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weigh | 877kg | Gate | Pin Point Gate |
| Part Material | PC+ABS | Tool Life | 500k Shots |
| Part Weight | 33.8g | Design Software | <3D:UG 4.0>/ <2D:CAD> |
| Mold Material | Steel Mold | Forming Method | Encapsulation Molding |
| High Light | Back Cover ABS Injection Molding,LKM ABS Injection Molding,500k Shots Injection Molding Three Plate |
||
Product Description

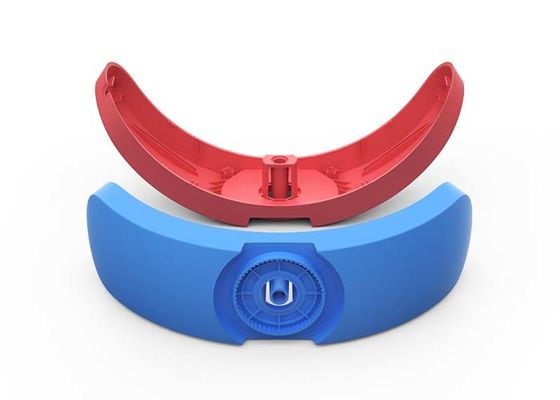

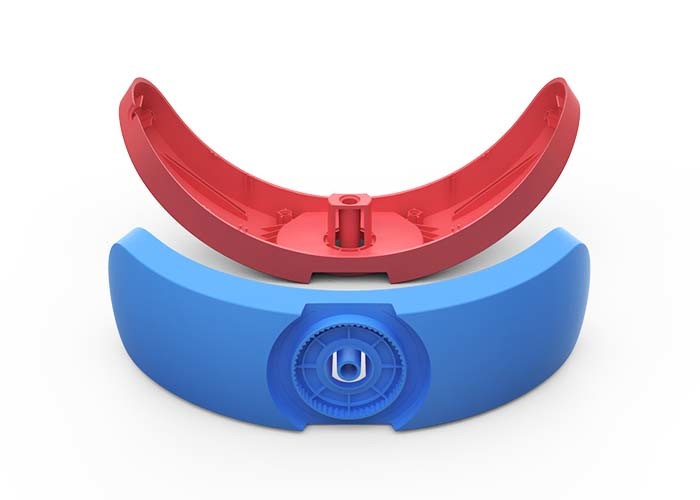

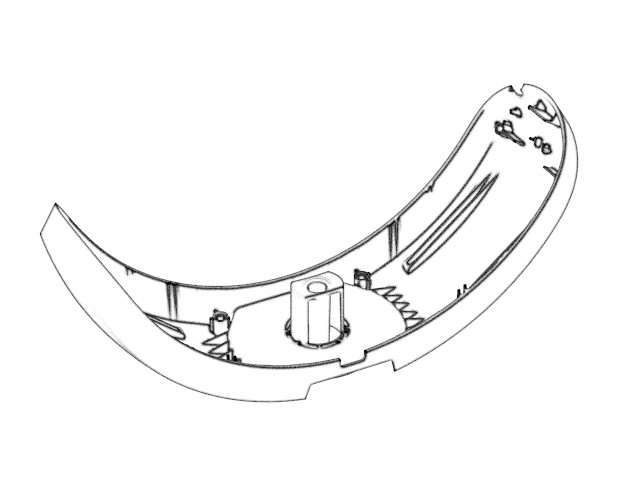

Back cover (1*1)
No.22958

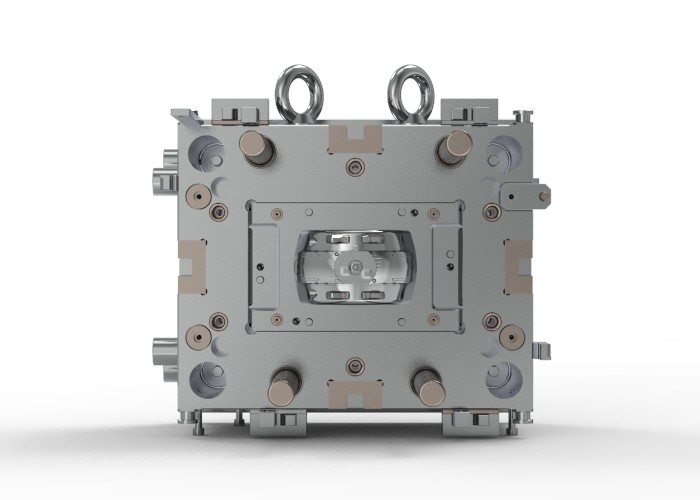

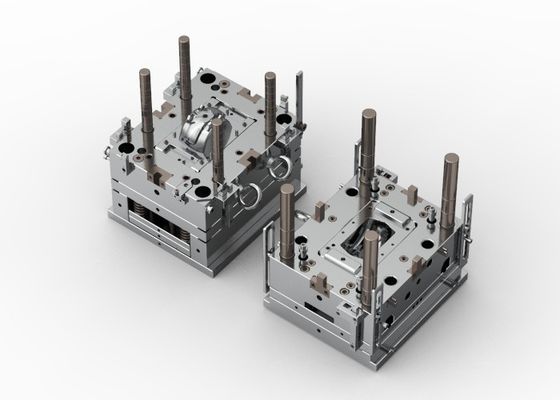

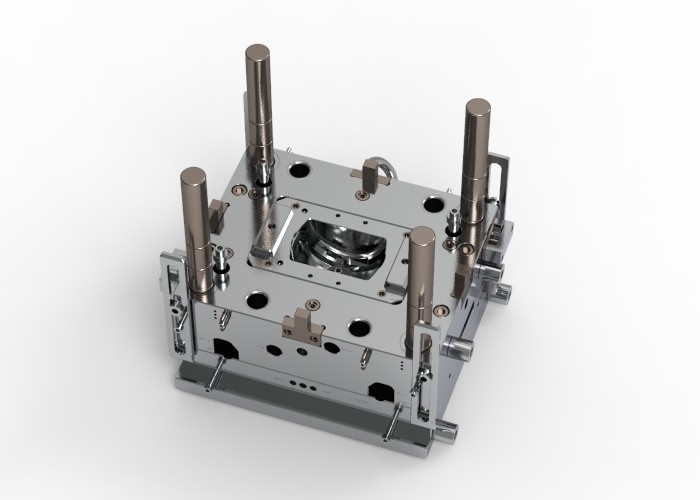

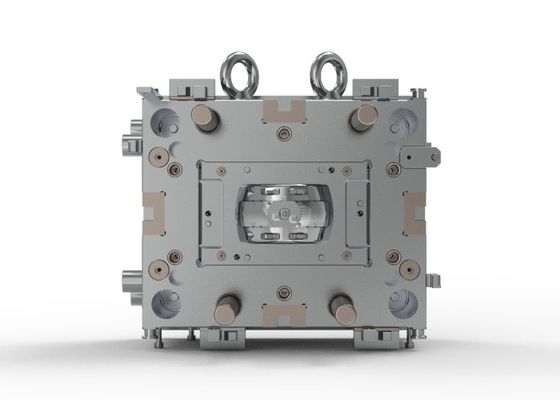

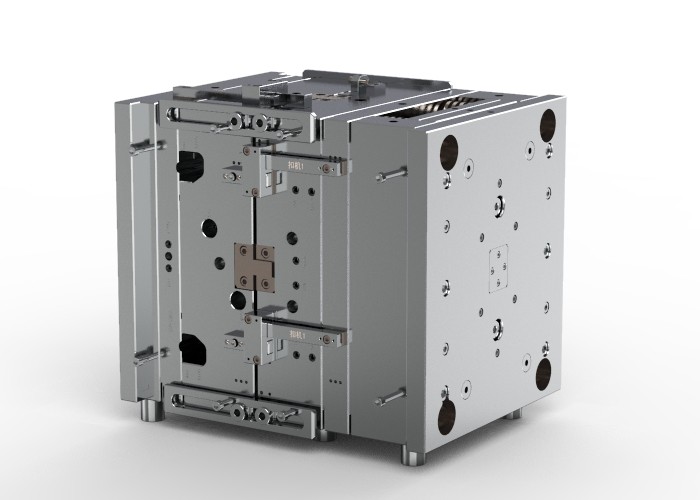

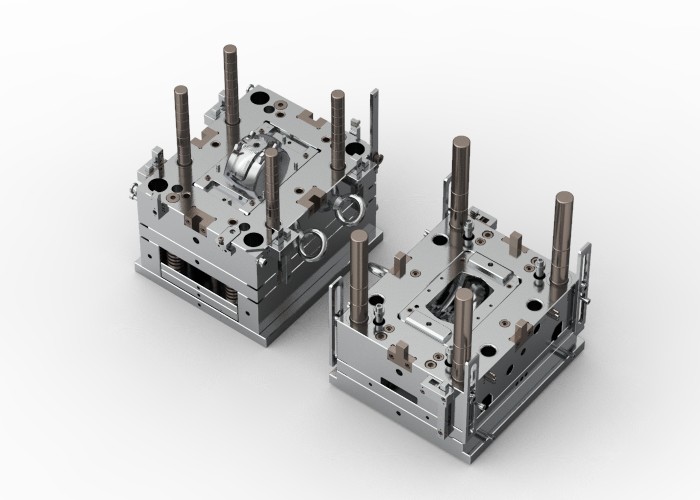

The mold is designed with the standard mold base DAI4050. A = 145 B = 125 C = 120,
the mold size is 450 X 500 X 431mm, the net weight is 877 kg, and fit 140T machine.
This is a three-plates mold, and blue A surface with MT11010 etch.
| Part material | PC+ABS | Gate | Pin point gate |
| Part weight | 33.8g | Tool life |
500k shots |
The mold is designed with cold runner; the part size is 172.56 X49.70 X72.85mm, in line with
LKM standard, with hardened cavity and coreWith strict surface finish process, the molded
part has high precision free of burrs.

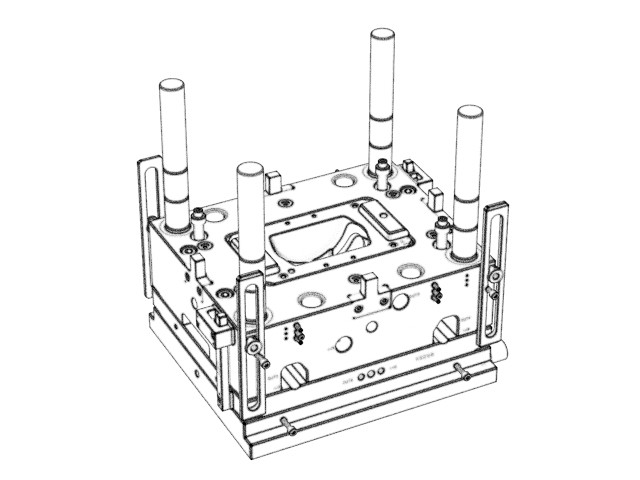

Display diagram
