OEM/ODM：Custom electric equipment mold / Transparent AR Front Housing Structure (1*1) No.25176
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.000 X 500.000 X 531.000mm | IMM Tonnage | 130(T) |
|---|---|---|---|
| Mold Weight | 762(KG) | Core Tunnel Slide | 10 |
| Lifter | 9 | Core Angled Slide | 2 |
| Cavity Angled Slide | 7 | Part Material | PC+ABS |
| Mold Type | Consumer Electronics Molds | Runner System | Hot Sprue Cold Runner |
| High Light | LKM High Precision Injection Molding,500k Shots High Precision Injection Molding |
||
Product Description

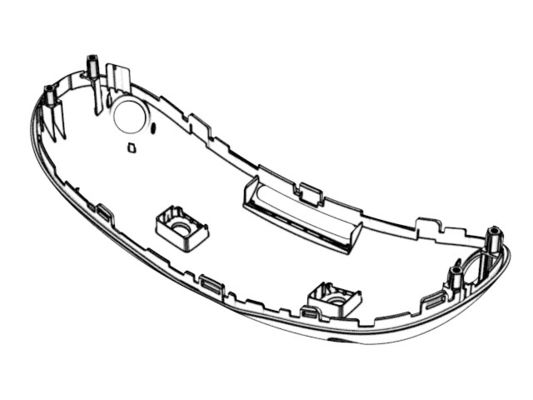

Transparent AR
Front Housing Structure (1*1)
No.25176
| Custom mold base P/N: FAI 4050 90 120 120 | Standard | |
| LKM | ||
| Length | 450 | |
| Width | 500 | Type |
| Height | 531 | Three-plates mold |
| Net weight | 762kg | |
☆ IMM tonnage: 130T
| To meet customers' cost-effective requirements, Chitwing developed (designed and manufactured) the mold with cold runner, 10 core tunnel slides, 9 lifters, 2 core angled slides and 7 cavity angled slides. With short cycle time, uniform texture, free of flow marks, minimized loss of material and stable cavity pressure. A surface polished to SPI-A3, smooth inner surface; harden the cavity and core with 1*1/S136 to improve hardness and anti-wearing performance; tool life up to 500k shots, suitable for mass production | |||||||

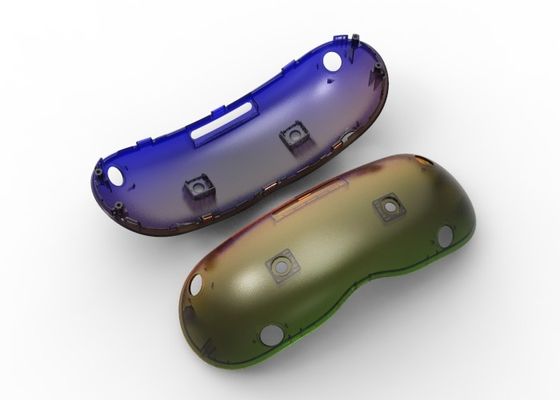

☆ Part material: PC+ABS
☆ Part weight: 24g
☆ Part size: (L) 170.8 X (W) 62.08 X (H) 49.43mm

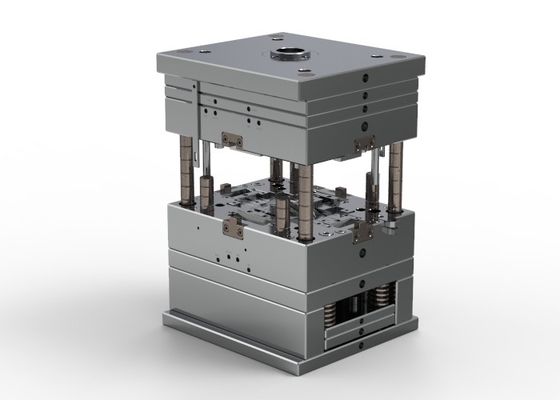

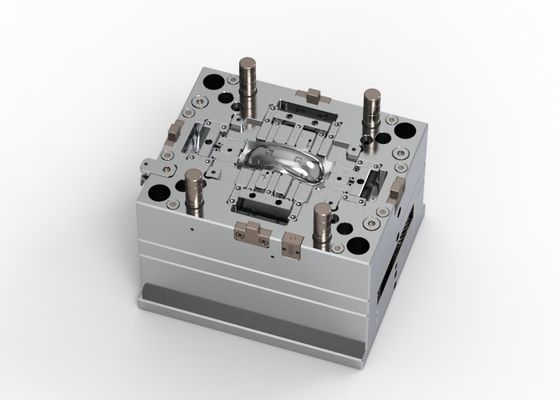

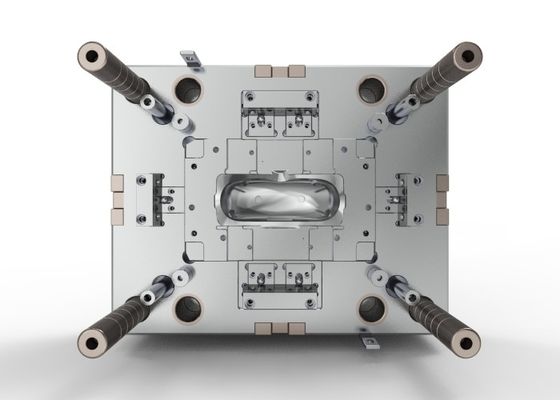

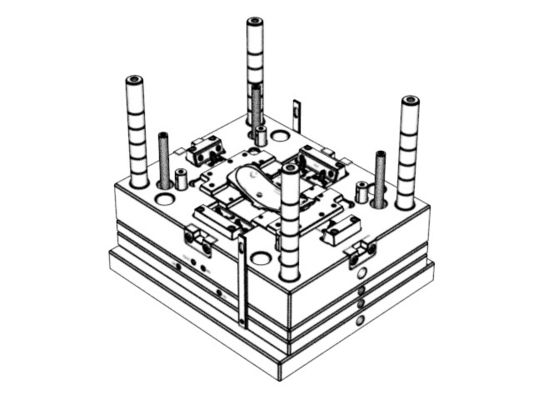

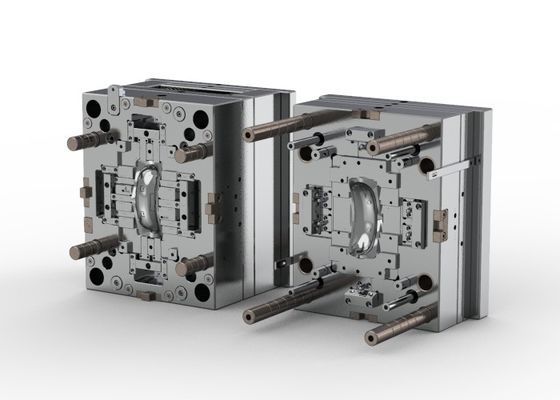

Display diagram
