OEM / ODM : Custom Precision Machining Molds / Transparent AR middle frame (1*1) No.25183
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450 X 656 X 500 | IMM Tonnage | 350T |
|---|---|---|---|
| Mold Weight | 952KG | Custom Mold Base P/N | GCI4050.A = 180 B = 200 C = 180 |
| Gate Type | Side Gate | Slide | 6 |
| Lifter | 6 | Injection Runner System | Hot Runner |
| Materials | Abs + Pc Molding | Mold Type | Custom Mould |
| High Light | Three Plate ABS Injection Molding,LKM ABS Injection Molding,350T hot runner plastic injection mould |
||
Product Description

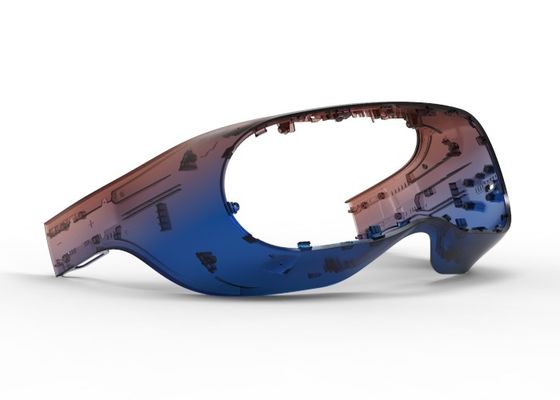

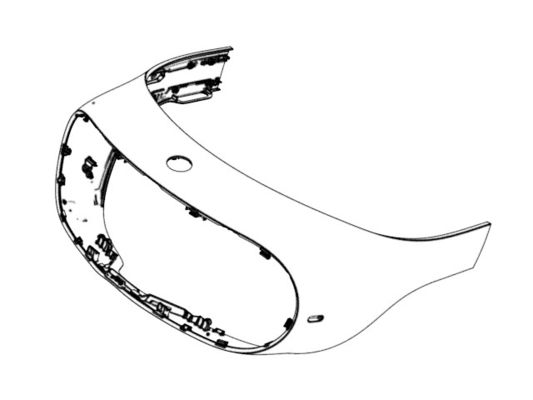

Transparent
AR middle frame (1*1)
No.25183
| Standard LKM | Length | |
| 450 | ||
|
Custom mold base P/N: GCI4050.A = 180 B = 200 C = 180 |
Width | |
| 656 | ||
| Height | ||
| 500 | ||
| Gate | Type | Net weight |
| Side gate | Three-plates mold | 952kg |
☆ IMM tonnage: 350T
|
|
|||||||||||||
|
|
||||||||||||||||||||||||
| The mold is designed with custom mold base and hot runner according to the characteristics of PC+ABS, with no loss of material; A surface texture: YS20020, high gloss, uniform wall thickness, stable mold pressure; molded parts have uniform thickness, smooth surface w/o flow marks and gas marks, with clear details | |||||

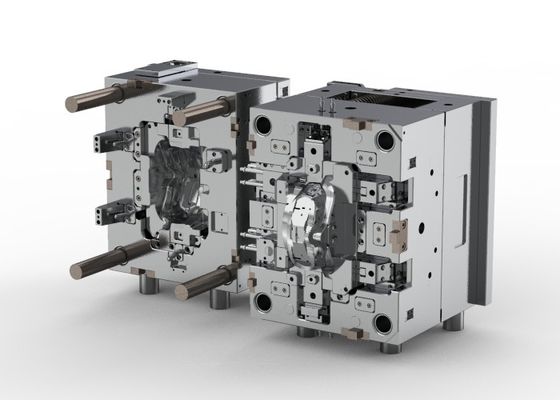

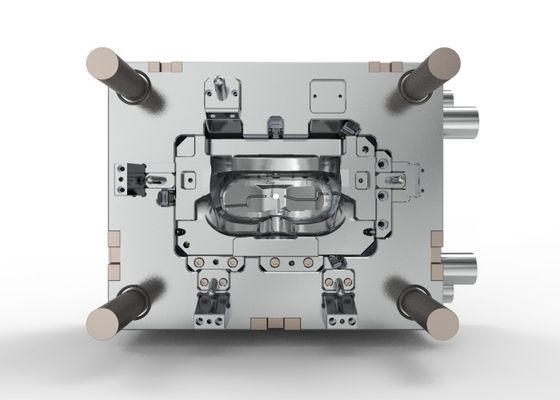

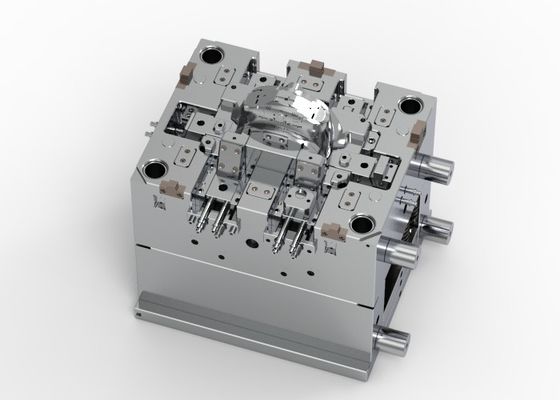

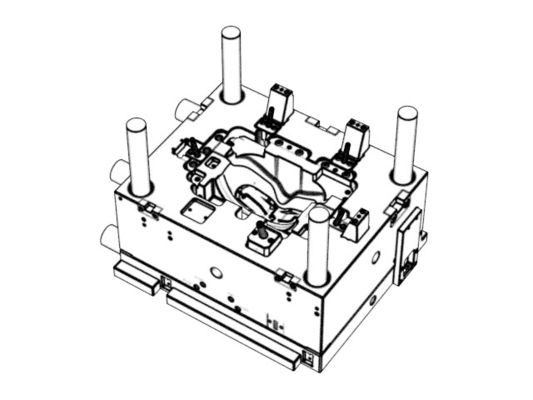

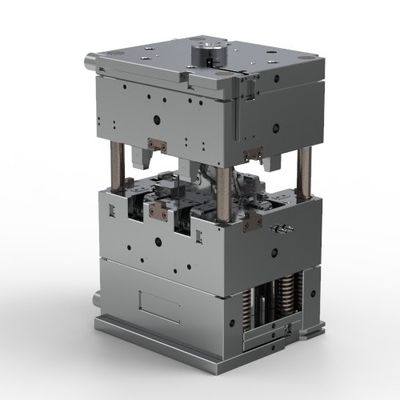

Display diagram
