OEM / ODM : Custom Precision Machining Molds / AR middle frame (1*1) No.25183
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 6 Slide+6 Lifter | Size | 450 X 656 X 500 |
|---|---|---|---|
| IMM Tonnage | 350T | Mold Weight | 952KG |
| Standard | LKM | Gate | Side Gate |
| Injection Runner System | Hot Runner | Design Software | 3D:UG 4.0, 2D:CAD |
| Part Material | PC+ABS | Part Weight | 52g |
| High Light | AR ABS Injection Molding,Three Plates ABS Injection Molding,500k Shots PP Injection Moulding |
||
Product Description

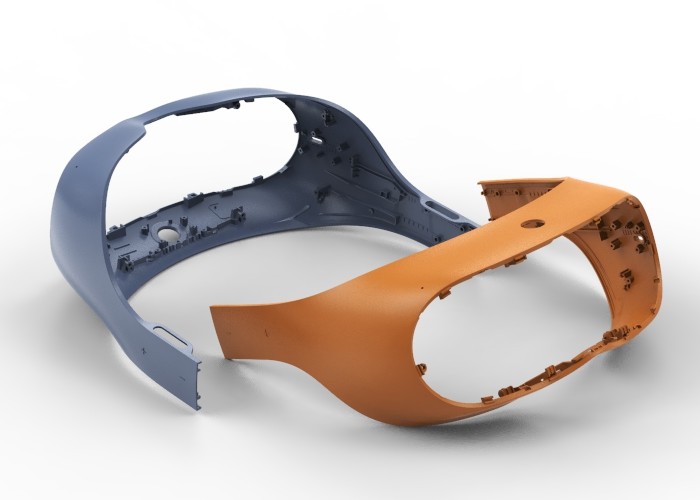

AR middle frame (1*1)
No.25183
| Length | Width | Height |
Custom mold base P/N: GCI4050.A = 180 B = 200 C = 180 |
|
| 450 | 656 | 500 | ||
|
Standard LKM |
Net weight | |||
| 952kg | ||||
|
|
||||||||||||
| Part material | Part weight/size | IMM tonnage: 350T | ||||
| PC+ABS | 52g / 197.61*85.34*160.63mm | |||||
| From the aspects of rationality, economy and cost-effective requirements, the mold is designed with custom mold base, 6 slide+6 lifters, three-plates mold structure and hot channel flow system, so that it has short cycle time, good molding effect, mo loss of materials, saving material and time cost; A surface EDM with YS20020, high glossiness, The mold parts have smooth surface w/o flow marks and gas marks, uniform thickness, and aesthetic appearance | ||||||||
| Surface finish | Steel of cavity and core | ||||||
| A surface texture: YS20020, high gloss | Harden (1*1/S136) |

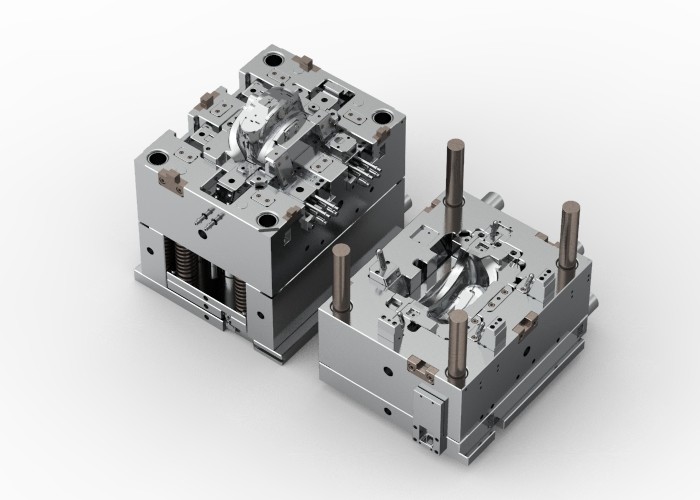

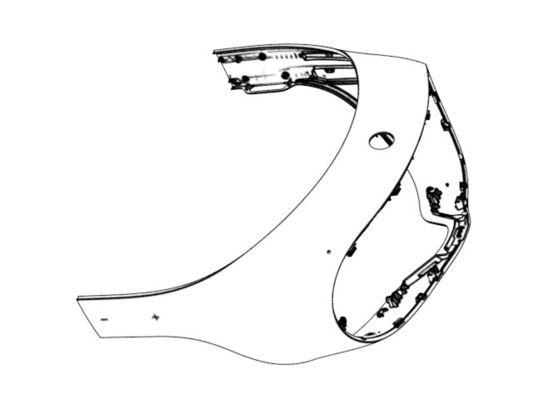

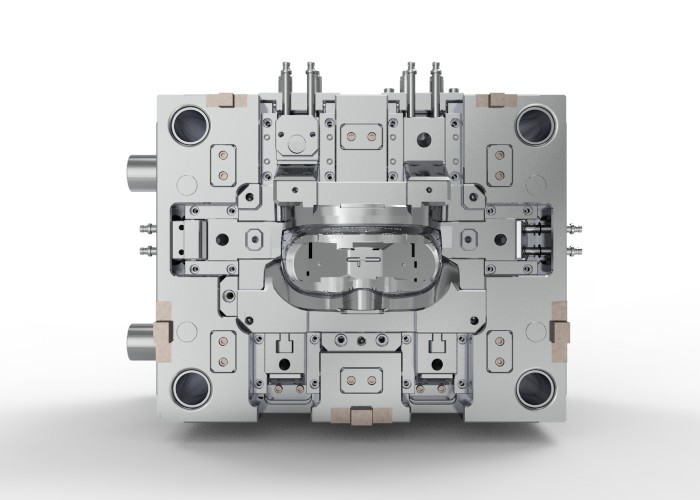

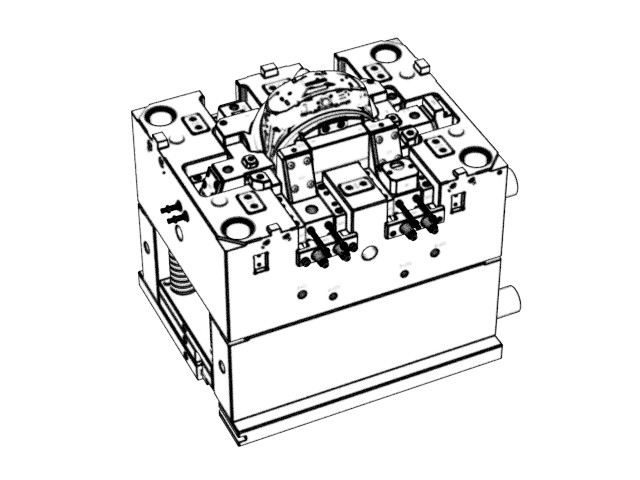

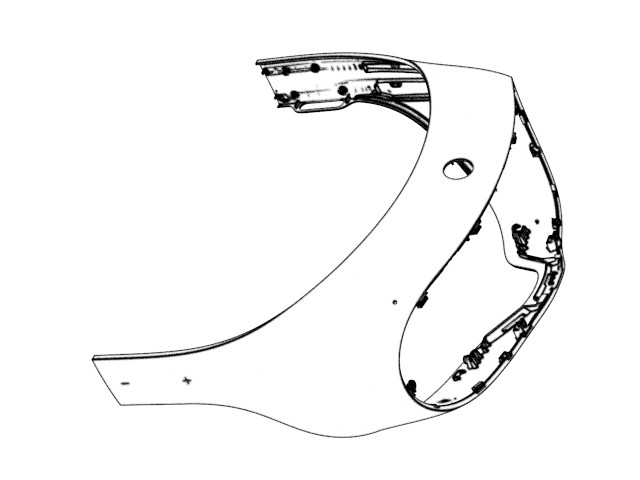

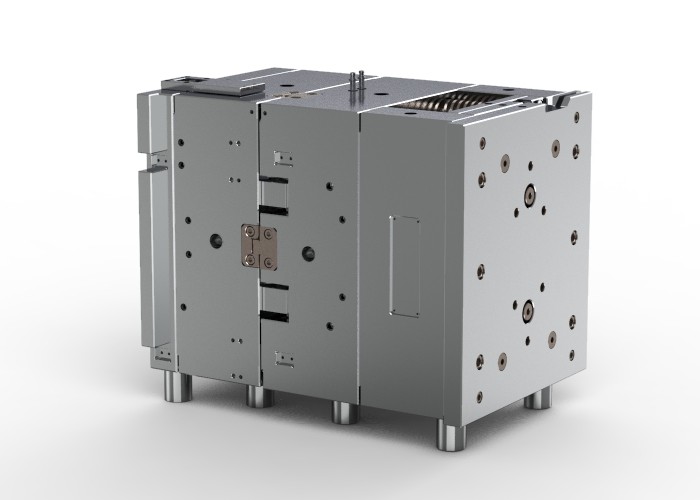

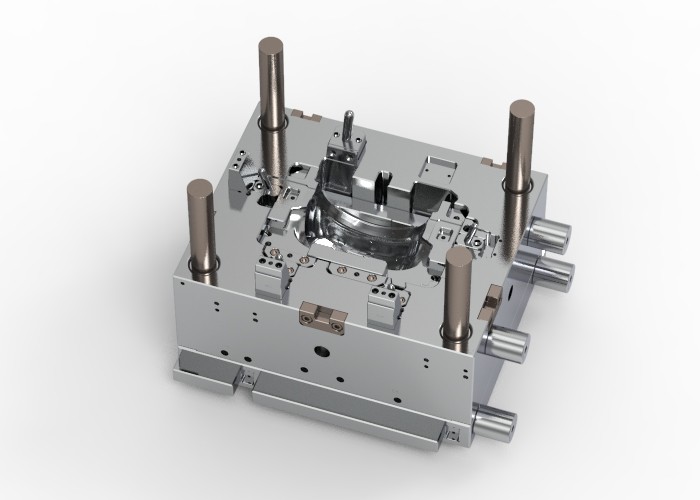

Display diagram
