OEM/ODM：Custom electric equipment mold / AR Front Housing Structure (1*1) No.25176
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.000 X 500.000 X 531.000 | IMM Tonnage | 130T |
|---|---|---|---|
| Mold Weight | 762KG | Custom Mold Base P/N | FAI 4050 90 120 120 |
| Gate | Sub Gate | Type | Three-plates Mold |
| Part Material | PC+ABS | Part Weight | 24g |
| Part Size | 170.8*62.08*49.43mm | Design Software | 3D:UG 4.0/2D:CAD |
| Mold Runner | Hot Sprue Cold Runner | Mold Type | Custom Plastic Injection Molds |
| Mold Structure | Fixed Cavity + Movable Side + Runner Stripper Plate + Runner Plate | ||
| Highlight | AR Housing Custom Injection Mould,PC ABS Custom Injection Mould,500k Shots plastic Mould maker |
||
Product Description

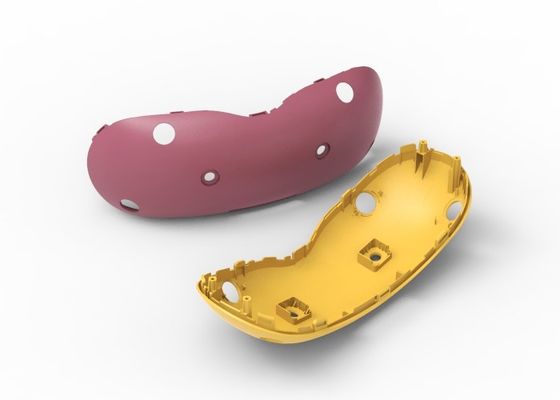

AR Front
Housing Structure (1*1)
No.25176
| Size | Net weight | 762kg | IMM Tonnage | |
| Length | 450 |
Custom mold base P/N: FAI 4050 90 120 120 |
||
| Width | 500 | 130T | ||
| Height | 531 | |||
| Gate | Type | Standard | Cold runner | Part material | Part weight |
| Sub gate | Three-plates mold | LKM | PC+ABS | 24g | |
| Surface finish | A surface polished to SPI-A3 | Part size | |||
| 170.8*62.08*49.43mm | |||||
|
|
|
|

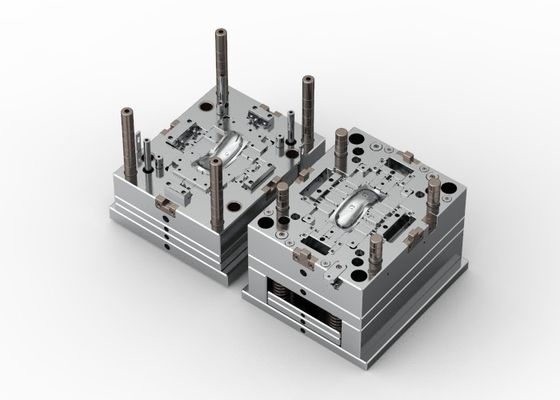

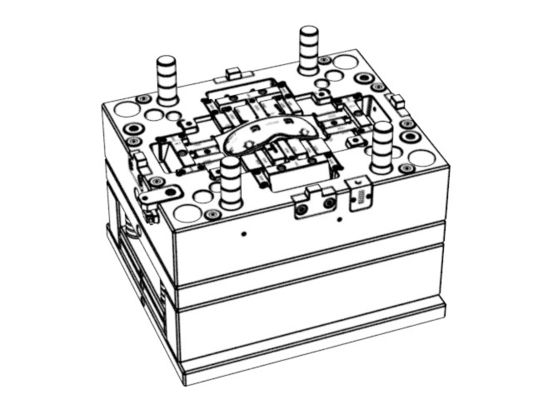

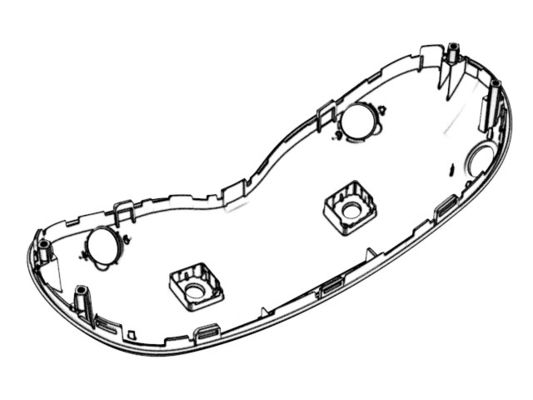

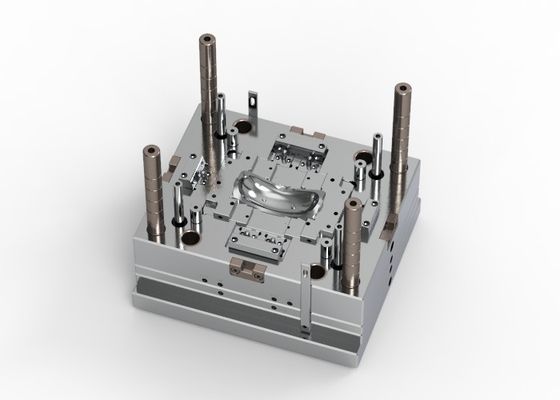

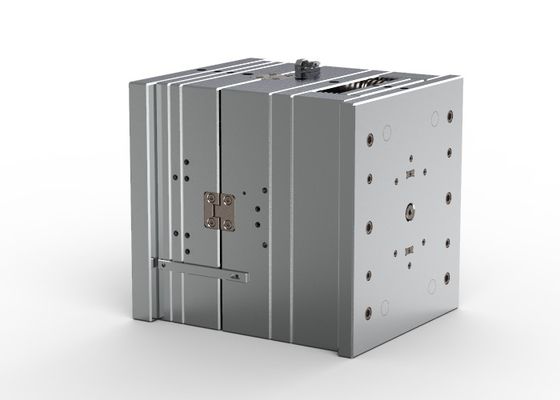

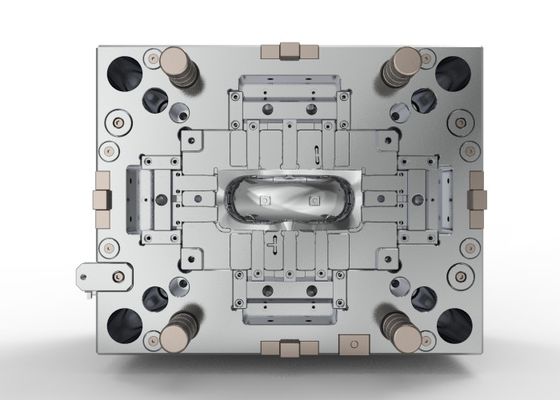

Display diagram
