OEM / ODM ： ABS Injection Molding & POA Transparent Rear Pad (1*1) No.22729
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 2 Slides And 18 Lifters | Size | 400 X 450 X 429 |
|---|---|---|---|
| IMM Tonnage | 110T | Mold Weight | 482kg |
| Gate | Pin Point Gate | Tool Life | 500k Shots |
| Net Weight | 482kg | Injection Type | Cold Runner |
| Runner Type | Cold Runner | ||
| High Light | LKM PP Injection Moulding,500k Shots PP Injection Moulding,POA Injection Molding Mold Making |
||
Product Description

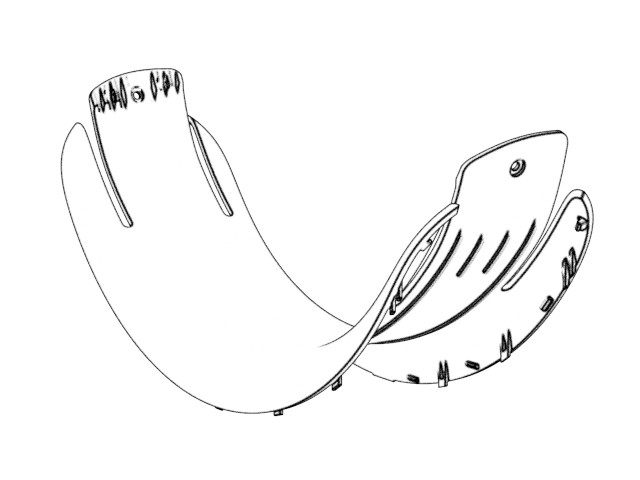

POA Transparent Rear Pad (1*1)
No.22729

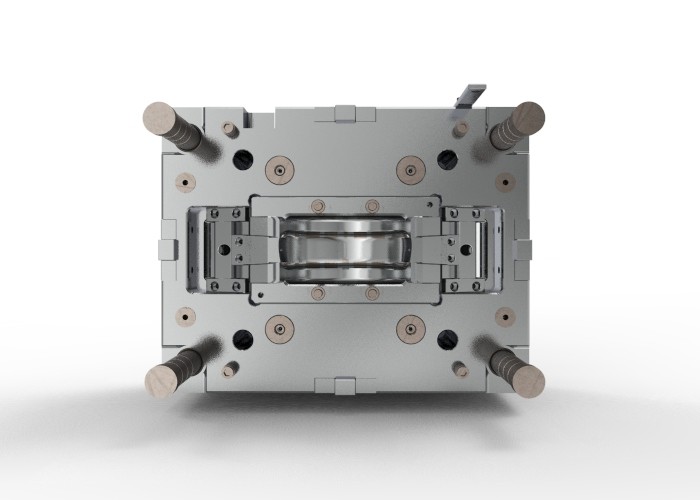

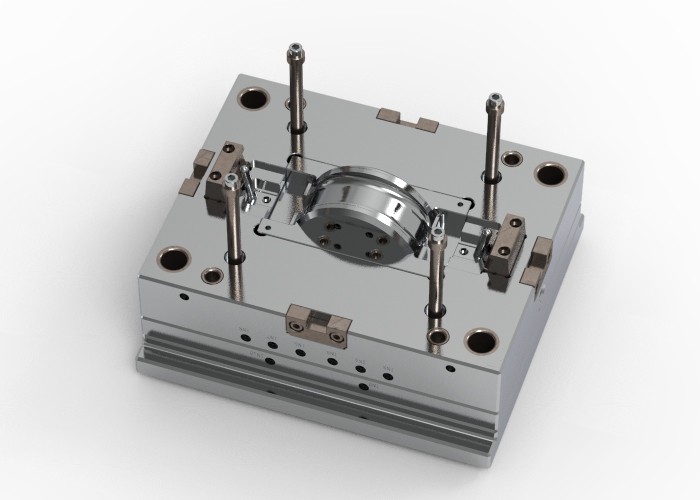

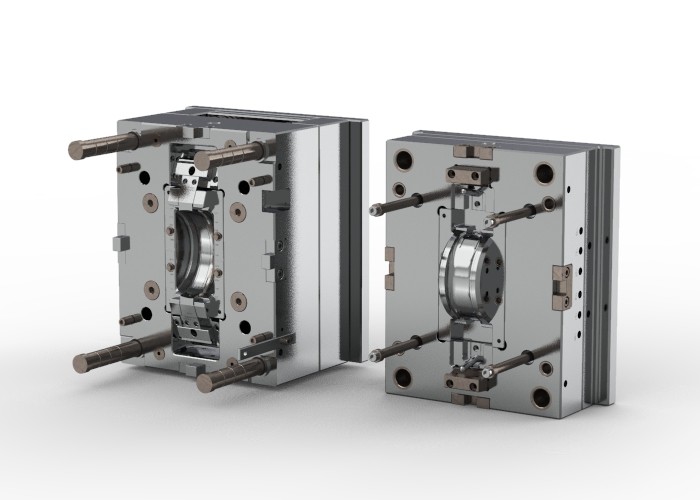

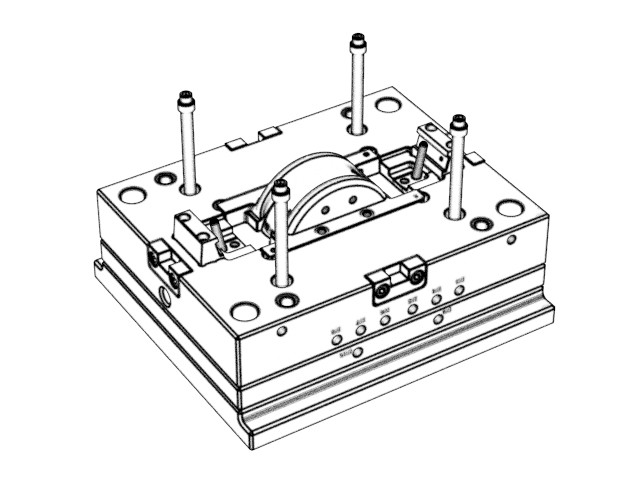

| Our mold part is meticulously crafted using the LKM mold base, ensuring durability and precision. The mold is designed with a cold runner system, allowing for efficient production. The surface of the mold features an MT11010 etch, while certain areas are EDM'd with VDI27# (Makino) and adhere to the LKM standard. With dimensions of 400mm in length, 450mm in width, and 429mm in height, this mold is optimized for your specific needs. The mold gate utilizes a pin point gate design, enabling precise control over the injection process. With a tool life of 500k shots, you can rely on this mold for long-term production. |

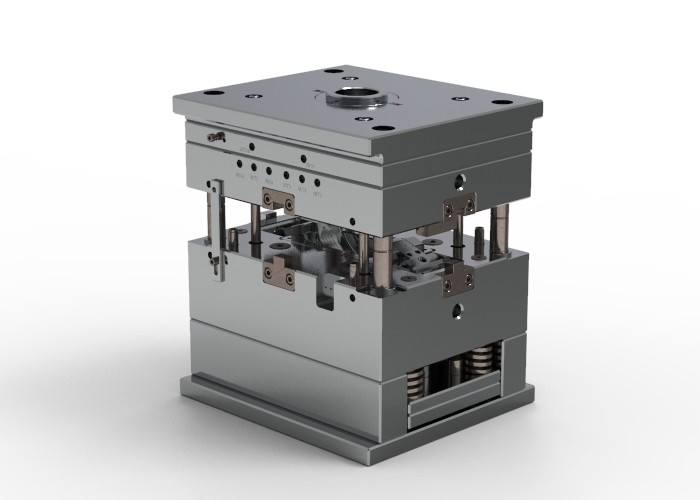

| The three-plates mold structure, along with the hardened cavity+core (1*1/S136) with a hardness exceeding 600HV, ensures exceptional performance. Additionally, the mold features 2 slides and 18 lifters, providing versatility and flexibility. With a net weight of 482kg, this mold is suitable for an injection molding machine with a tonnage of 110T. |

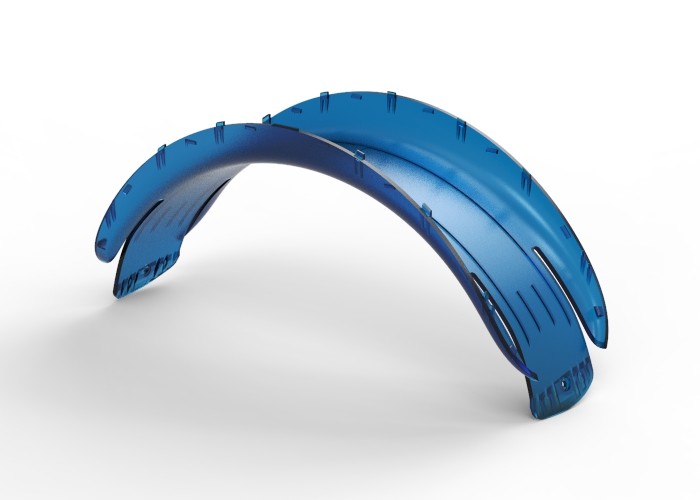

| The molded injection parts produced by our mold are made from a high-quality PC+ABS material blend. This combination ensures excellent strength, impact resistance, and heat resistance. The net weight of the injection part is 15g, and its size measures 158.51mm in length, 47.92mm in width, and 70.83mm in height. These dimensions make it suitable for a wide range of applications, providing versatility and adaptability to your specific needs. |
Display diagram
