OEM / ODM ： ABS Injection Molding & Transparent Front Housing (1*1) No.22724
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 500 X 511 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 611kg | Type | Three-plates Mold |
| Standard | LKM | Surface Finish | VDI27# (Makino)/VDI18# (Makino) |
| Design Software | 3D-UG 4.0/ 2D-CAD | ||
| High Light | Cold Runner ABS Injection Molding,110T ABS Injection Molding,LKM ABS Injection Molding |
||
Product Description

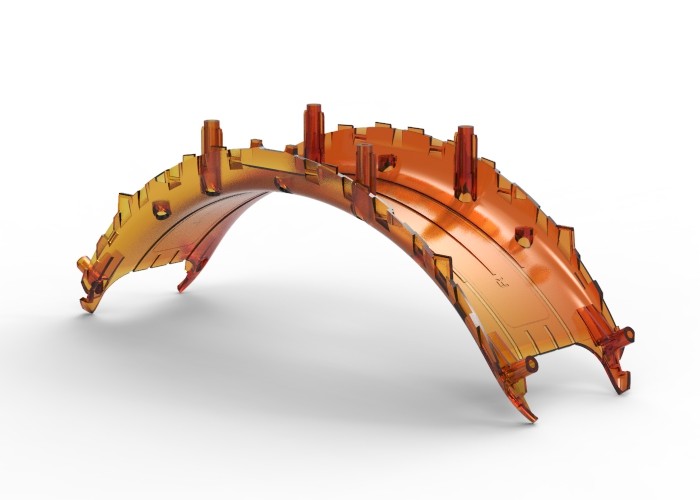

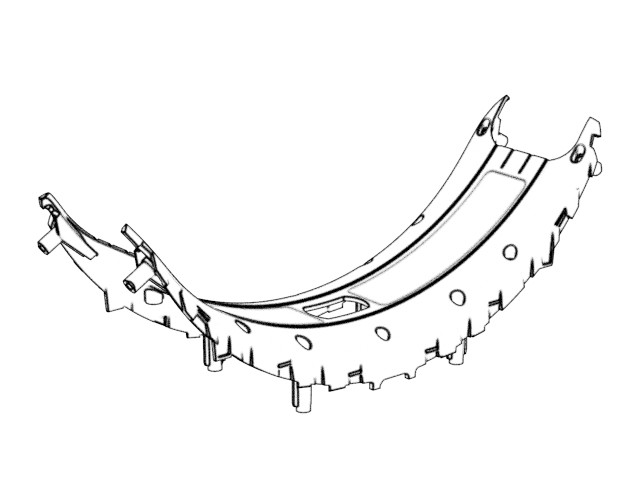

Transparent Front Housing (1*1)
No.22724
The mold size is 400 X 500 X 511mm. The part material is PC+ABS. The mold is designed with
cold runner,harden cavity and core with 1*1/S136, and the tool life is up to 500k shots. Partial
surfaces EDM withVDI18# (Makino), and the internal surface EDM with VDI27# (Makino).
Mold features: two sliders
| Type | Three-plates mold | ||||
| Gate | Pin point gate | ||||
The mold weight is 611kg; the IMM tonnage is 110T;
the part weight is 20g, and the part size is154.34 X 45.23 X 58.10mm

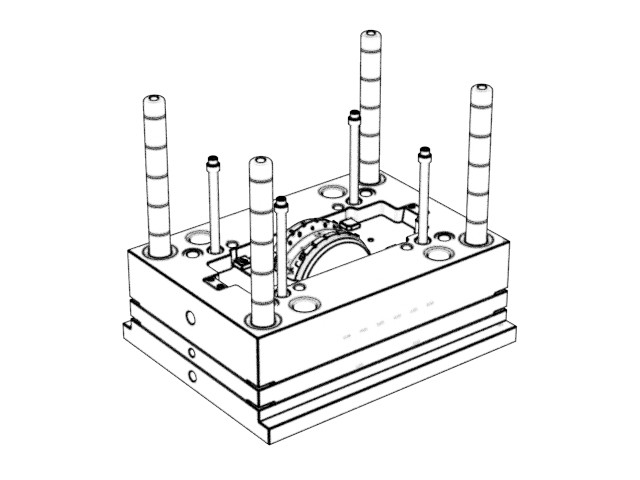

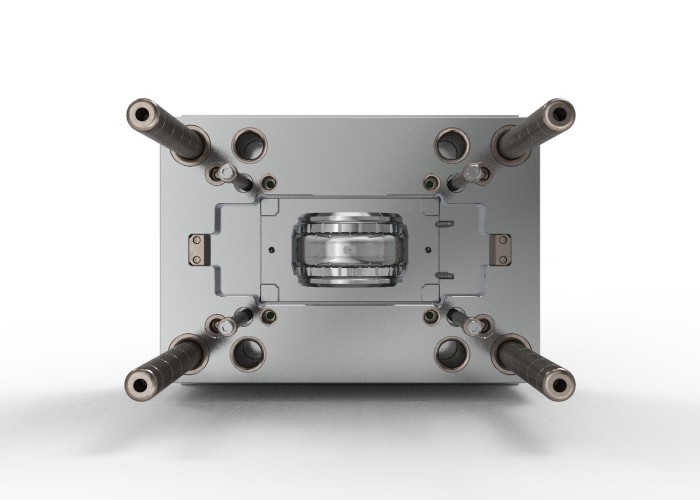

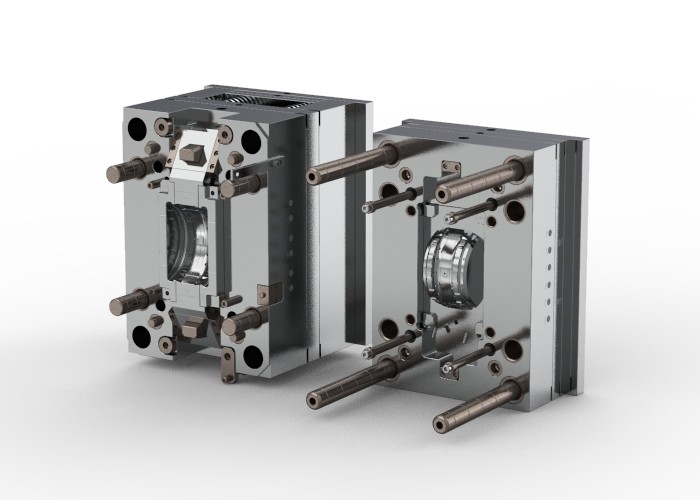

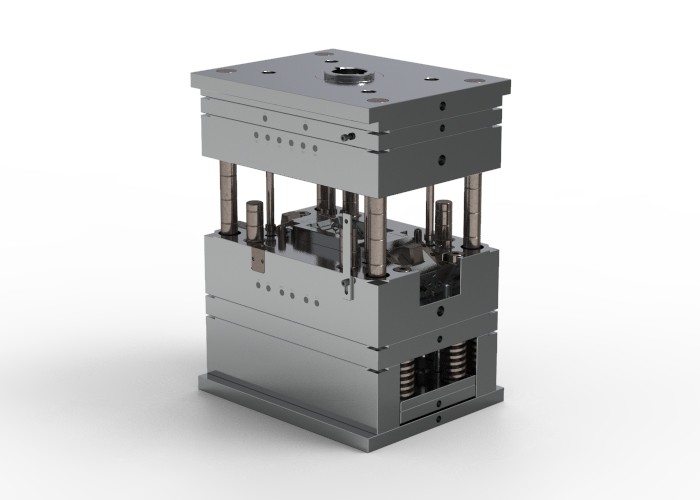

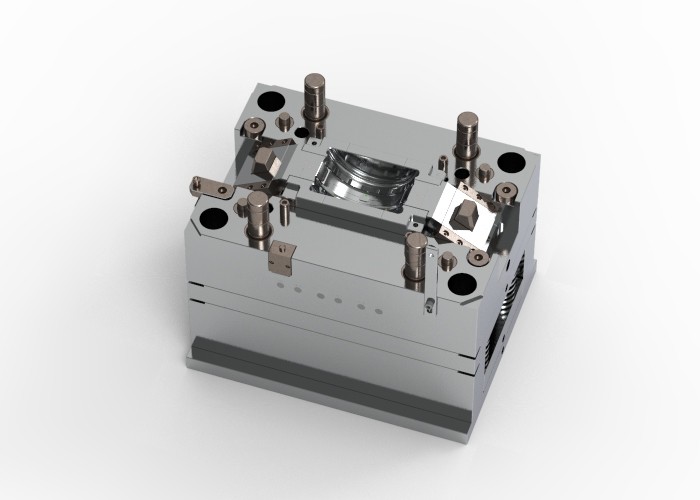

Display diagram
