OEM / ODM ： ABS Injection Molding & Front Housing (1*1) No.22724-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mold Size | 400 X 500 X 511 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 611kg | Gate | Pin Point Gate |
| Tool Life | 500k Shots | Steel Of Cavity And Core | Harden (1*1/S136) |
| Type | Three-plates Mold | ||
| High Light | Front Housing Three Plates Mold,Cold Runner 3 Plates Mold |
||
Product Description
Front Housing (1*1)
No.22724-B

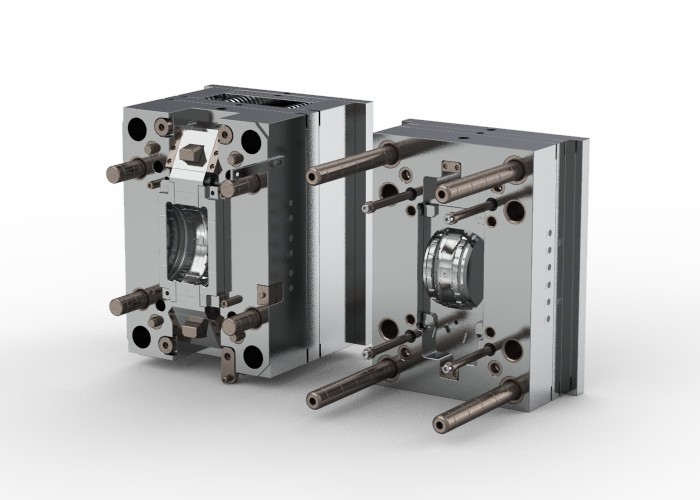

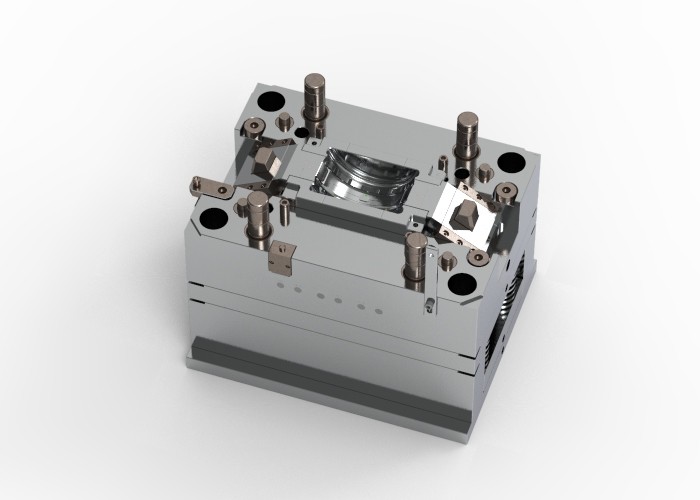

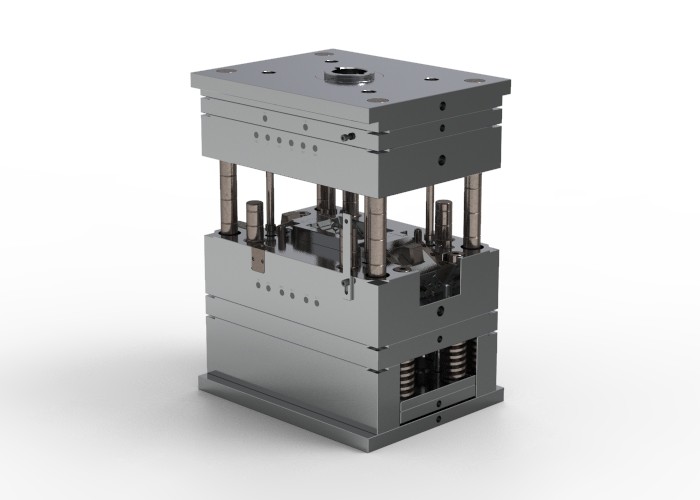

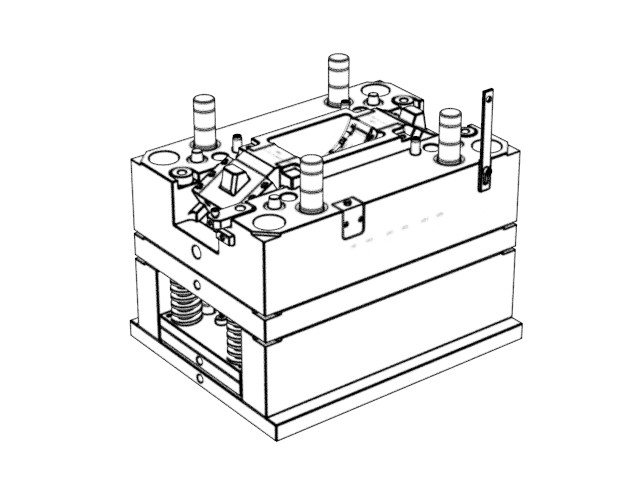

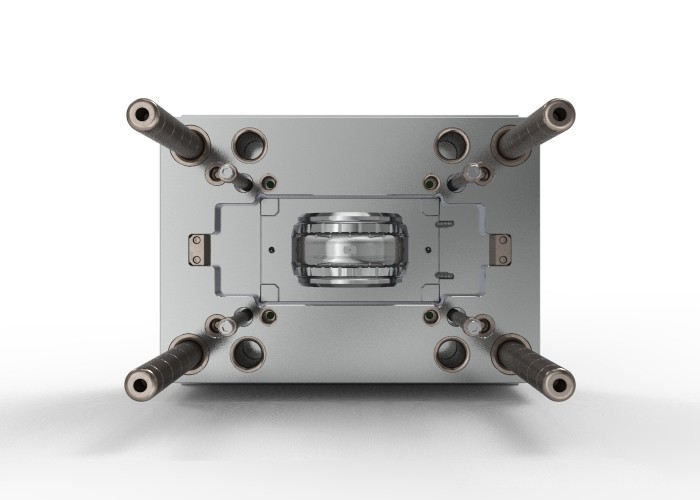

| As a marketing manager, I will provide a professional and accurate introduction to the mold based on the given parameters. This mold is a three-plates mold, designed with precision and efficiency in mind. It features a pin point gate for injection and utilizes a cold runner system. With a tool life of 500,000 shots, this mold is built to withstand high-volume production. |
| The mold adheres to the LKM mold standard, ensuring quality and compatibility. The cavity and core are made from hardened steel (1*1/S136), providing excellent durability and wear resistance. The surface finish of the mold is meticulously crafted, with the inner surface finished using EDM VDI27# (Makino) and partial surfaces finished with EDM VDI18# (Makino). |

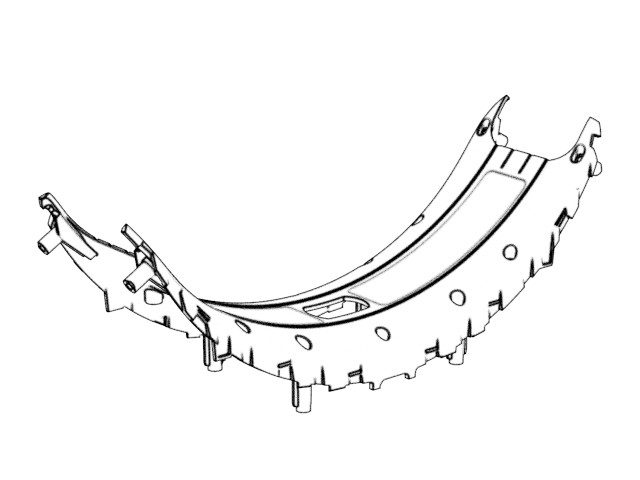

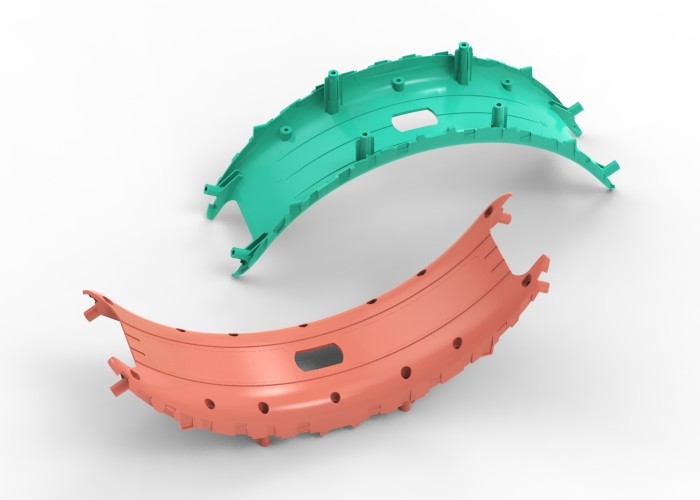

| The mold has a size of 400 x 500 x 511mm and a net weight of 611kg. It is meticulously crafted to ensure a perfect fit without any burrs. The mold is designed to be used with an injection molding machine (IMM) with a tonnage of 110T. The part to be produced using this mold is made from PC+ABS material, with a weight of 20g and dimensions of 154.34 x 45.23 x 58.10mm. |
Display diagram
