OEM / ODM ： ABS Injection Molding & Transparent Front Housing (1*1) No.22724-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 500 X 511 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 611kg | Type | Three-plates Mold |
| Standard | LKM | Surface Finish | VDI27# (Makino)/VDI18# (Makino) |
| Design Software | 3D-UG 4.0/ 2D-CAD | ||
| High Light | Cold Runner Three Plates Mold,Transparent Front Housing Plates Mold |
||
Product Description
Transparent Front Housing (1*1)
No.22724-B

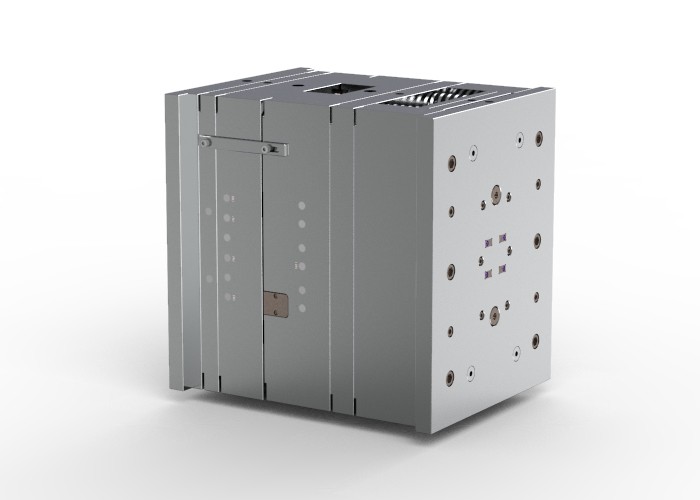

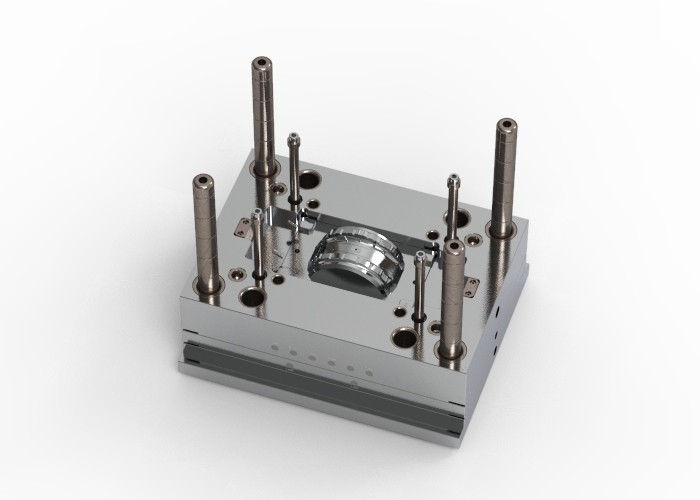

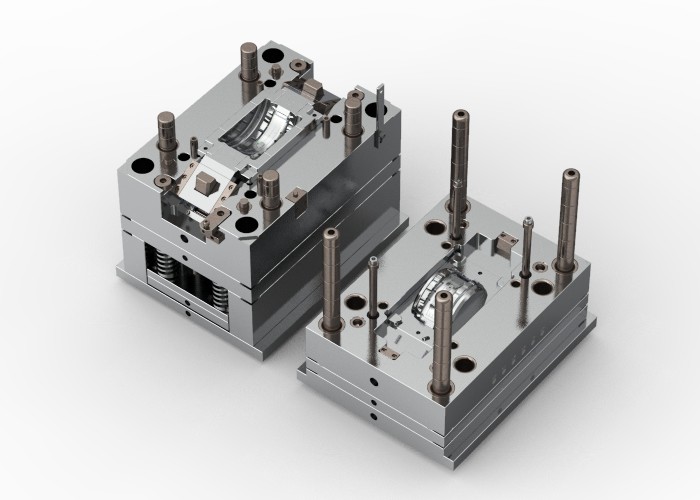

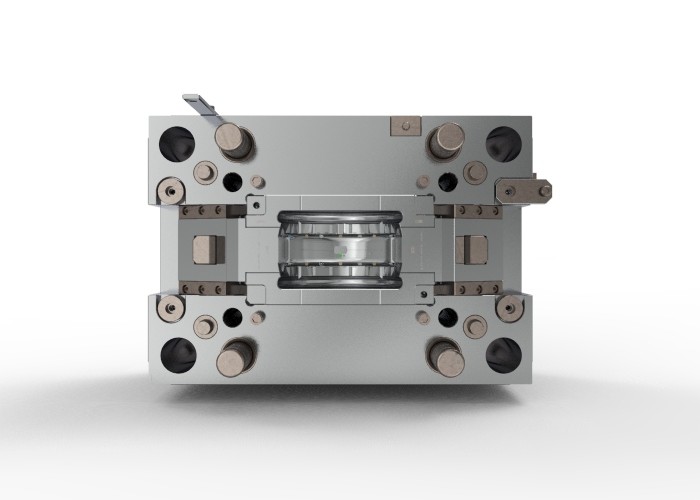

| Introducing our meticulously crafted three-plates mold, designed to perfection. Featuring a pin point gate and a cold runner system, this mold is optimized for precision injection molding. With a tool life of 500,000 shots, it is built to endure extensive production cycles while maintaining exceptional quality. |
| Our mold adheres to the LKM mold standard, ensuring compatibility and reliability. The cavity and core are constructed from hardened steel (1*1/S136), providing superior durability and wear resistance. The surface finish is meticulously executed, with the inner surface treated using EDM VDI27# (Makino) and partial surfaces finished with EDM VDI18# (Makino), resulting in a flawless appearance. |

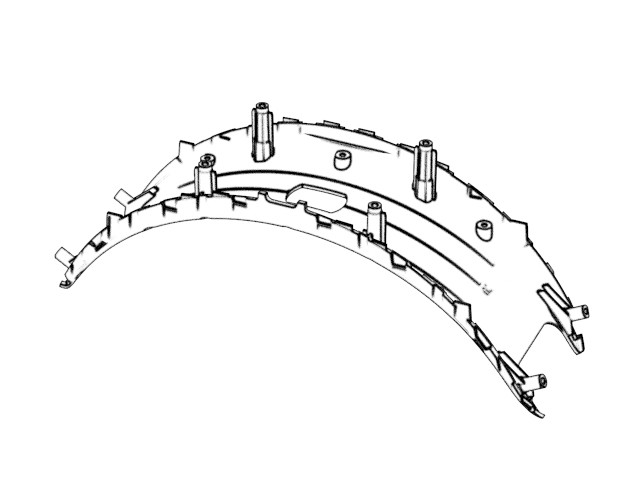

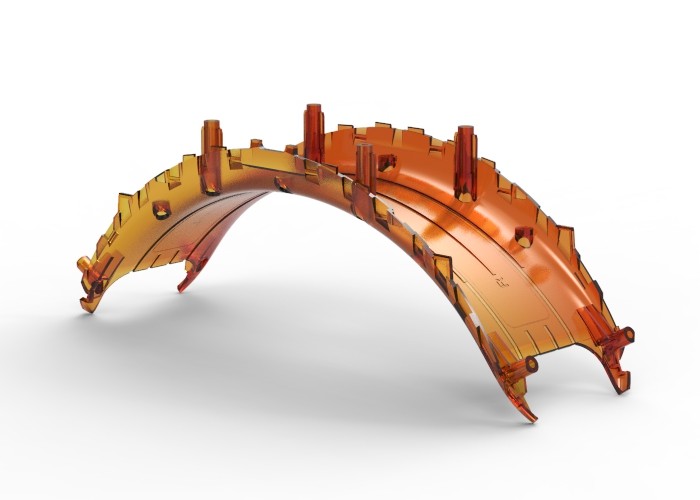

| With a size of 400 x 500 x 511mm and a net weight of 611kg, this mold is meticulously crafted to ensure a perfect fit without any burrs. It is designed to be used with an injection molding machine (IMM) with a tonnage of 110T. The part to be produced using this mold is made from PC+ABS material, weighing 20g, and measuring 154.34 x 45.23 x 58.10mm. Experience the seamless combination of precision, durability, and aesthetic appeal with our exceptional mold. |

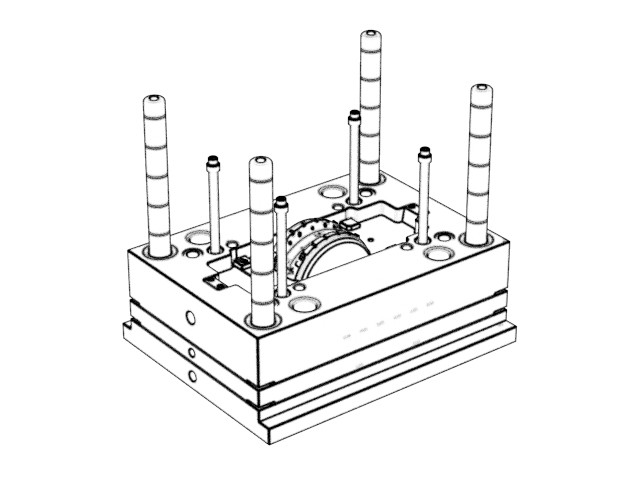

Display diagram
