OEM / ODM ： ABS Injection Molding & POA Knob Tail Cover (1*8) No.22727-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250 X 200 X 231 | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 70kg | Injection/runner Type | Cold Runner |
| Gate | Sub Side Gate | Mold Weight | 70 Kg |
| Part Material | PC+ABS | ||
| High Light | POA Knob Tail Cover,POA Two Plates Mold |
||
Product Description

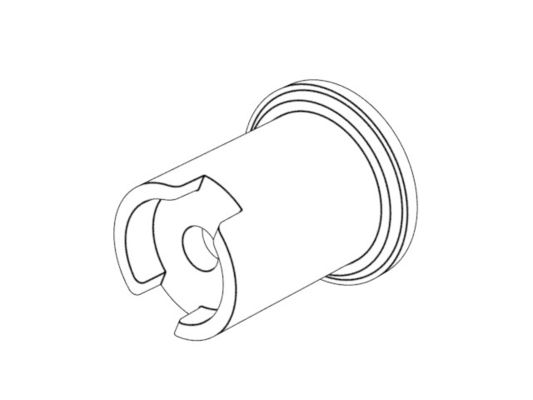

POA Knob Tail Cover (1*8)
No.22727-B

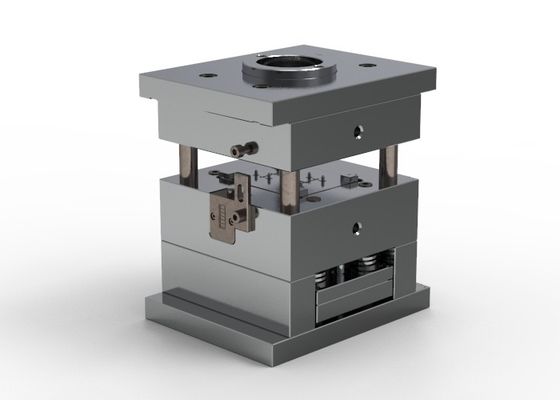

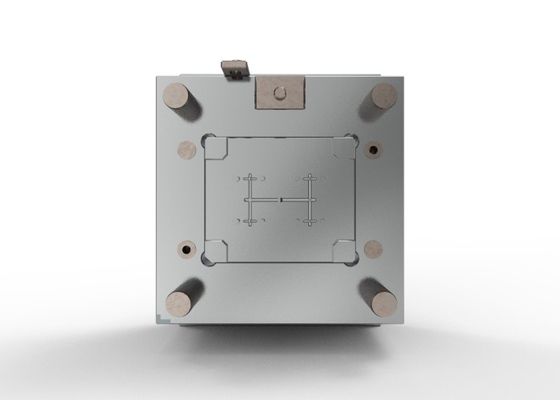

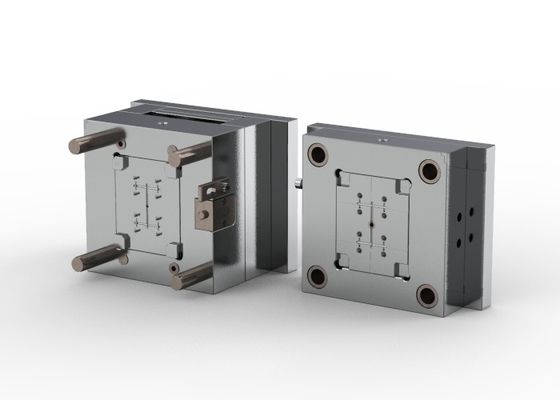

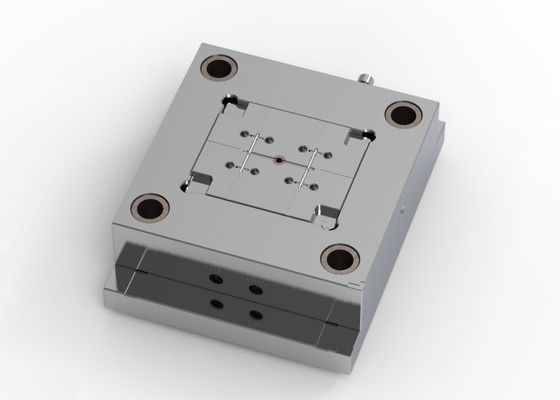

| This high-precision two-plates mold has a size of 250 X 200 X 231mm and features a sub side gate for injection. The mold is designed for a tool life of 500k shots and is made with a surface polished to 600# sandpaper. It utilizes a cold runner system and is built on an LKM mold base to ensure quality. |

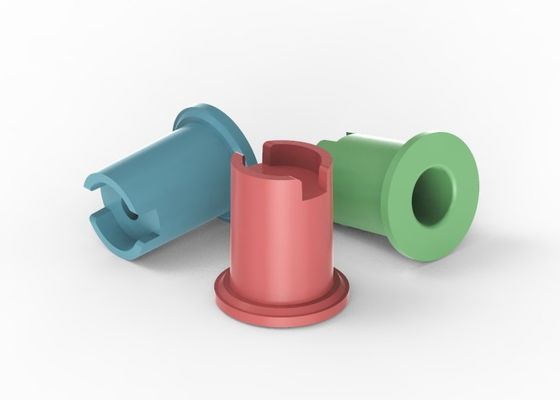

| The injection part size is φ12 * 8.5mm, with a weight of 0.1g. The material used for the injection part is PC+ABS. The overall weight of the mold is 70 kg, and it is suitable for use with an 80T machine. |

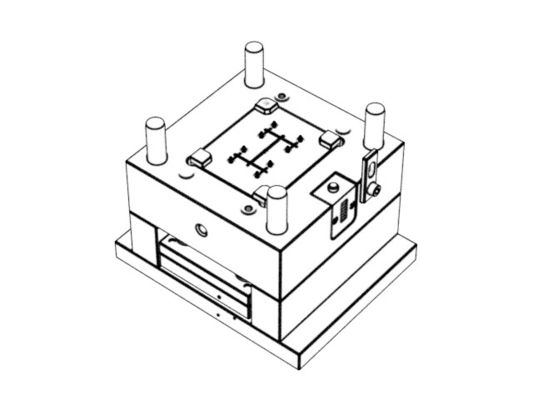

Display diagram
