OEM / ODM ： ABS Injection Molding & POA Side Guide Bracket 1x2 No.22728-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450 X 450 X 416 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 536kg | Injection/runner Type | Cold Runner |
| Part Material | PC+ABS | Type | Three-plates Mold |
| Tool Life | 500,000 Shots | ||
| High Light | POA Side Guide Bracket,POA Side Guide Bracket Mold |
||
Product Description
POA Side Guide Bracket (1*2)
No.22728-B
|

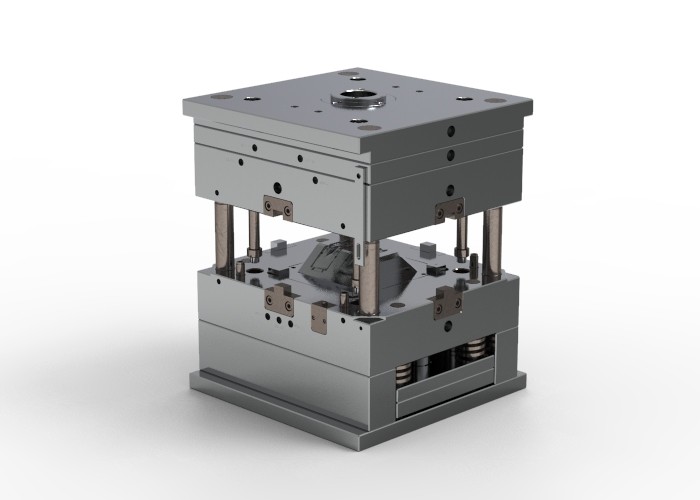

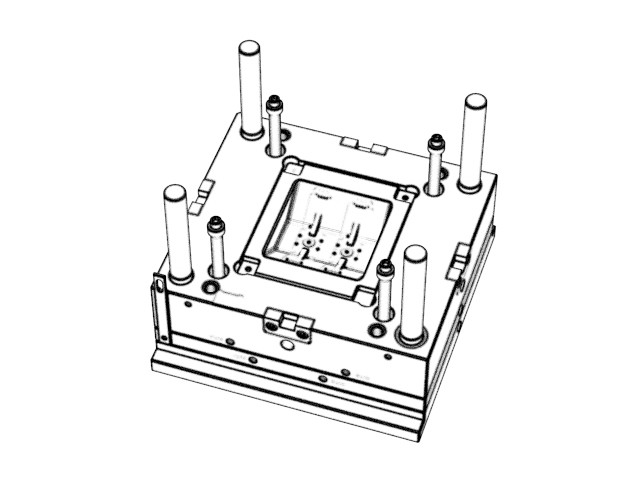

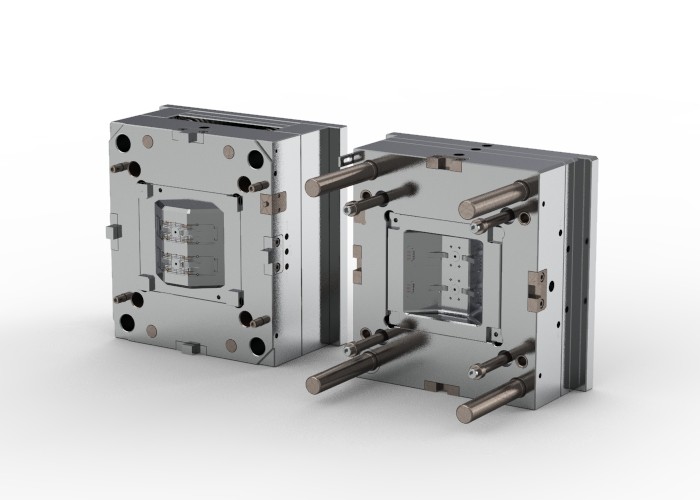

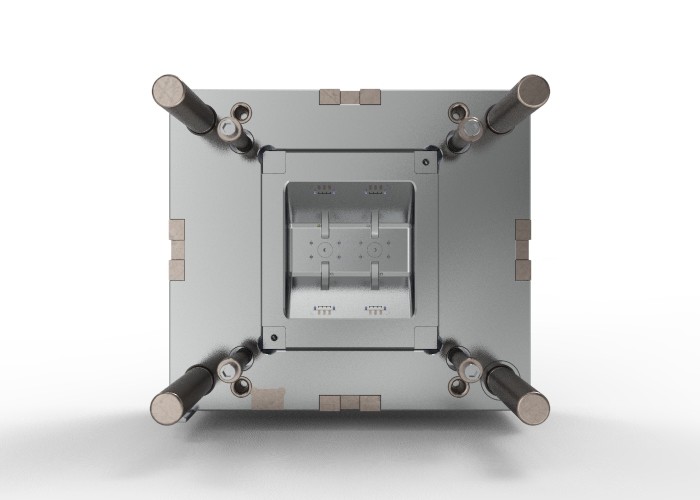

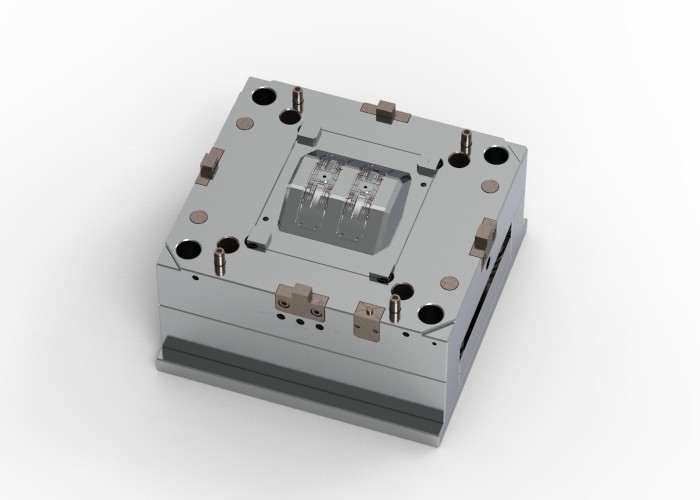

Mold Part: The mold part is a high-precision three-plates mold with a pin point gate. It utilizes an LKM mold base and has a tool life of 500,000 shots. The mold features two slides and has a size of 450 x 450 x 416mm, weighing 482kg. The cavity and core are hardened, ensuring durability. The surface finish is smooth without any pits, and certain surfaces are EDM with VDI18# (Makino). It is compatible with an injection molding machine with a tonnage of 110T. |

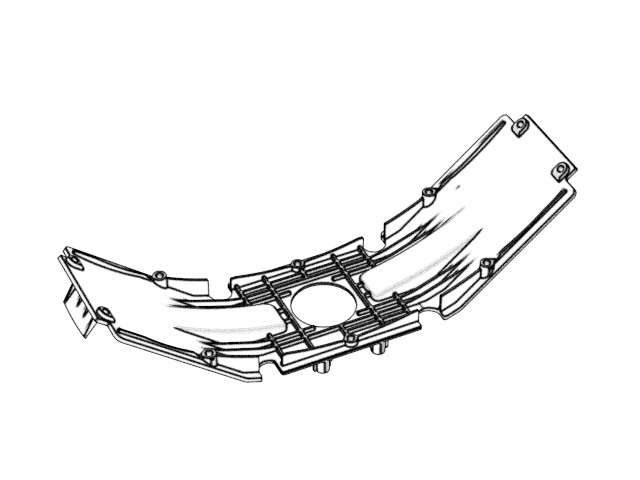

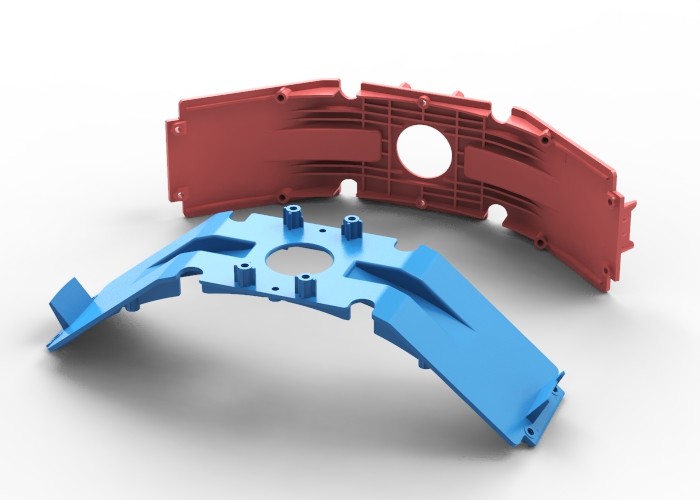

| The injection molded parts are made from a PC+ABS material blend, offering a combination of strength and impact resistance. Each part weighs 14.5g and measures 152.36 x 41.12 x 42.59mm. These parts are manufactured with high precision using the above-mentioned mold, ensuring consistent quality and dimensional accuracy. |
Display diagram
