OEM / ODM ： ABS Injection Molding & Back Cover 1*1 No 22958-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450 X 500 X 431 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weigh | 877kg | Gate | Pin Point Gate |
| Part Material | PC+ABS | Tool Life | 500k Shots |
| Part Weight | 33.8g | Design Software | <3D:UG 4.0>/ <2D:CAD> |
| Highlight | cold runner abs injection molding,two plates abs injection molding,abs cold runner injection molding |
||
Product Description

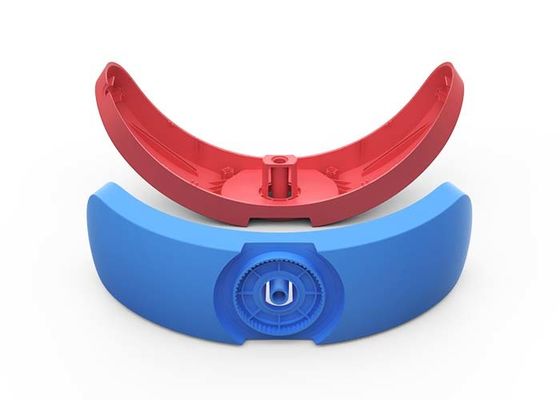

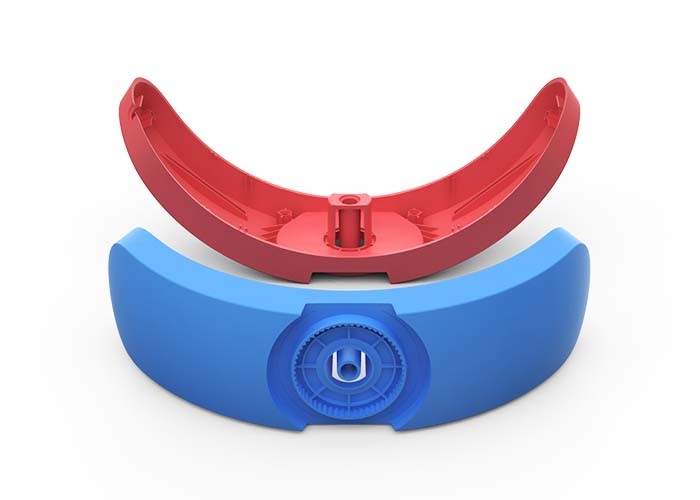

Back cover (1*1)
No.22958-B

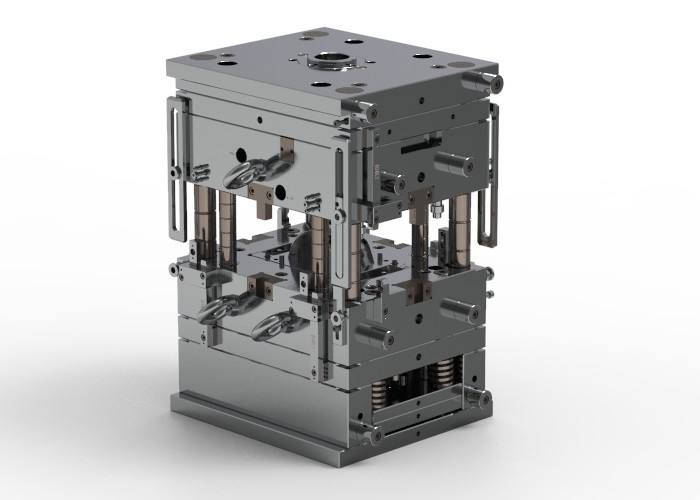

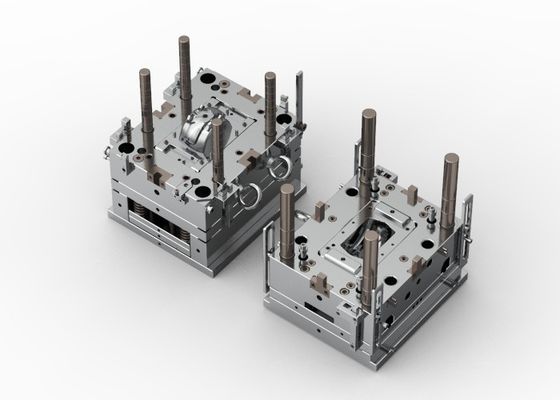

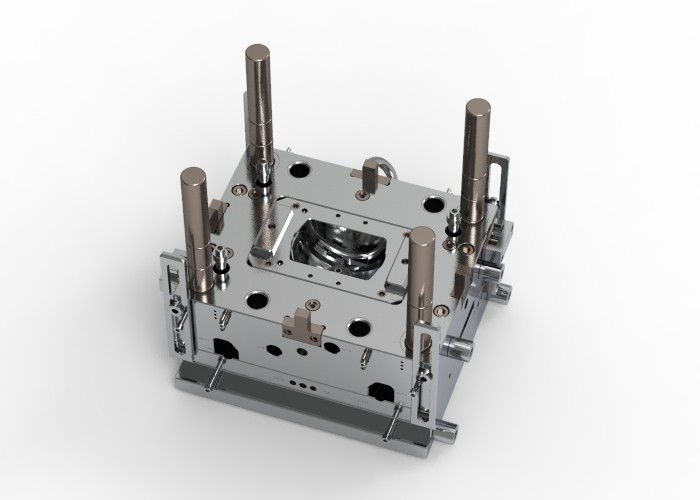

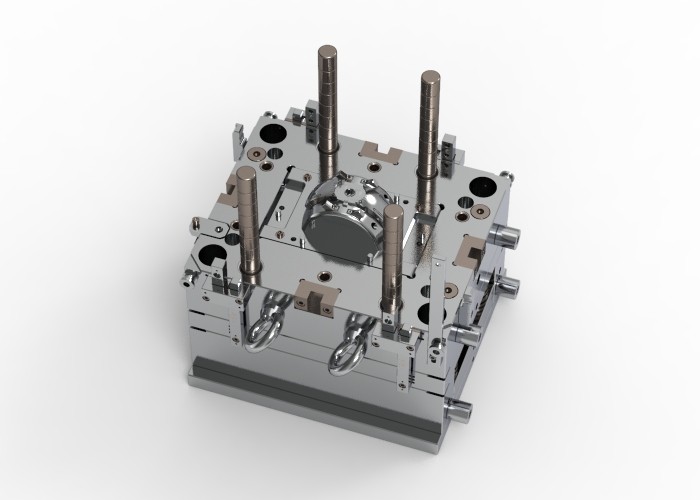

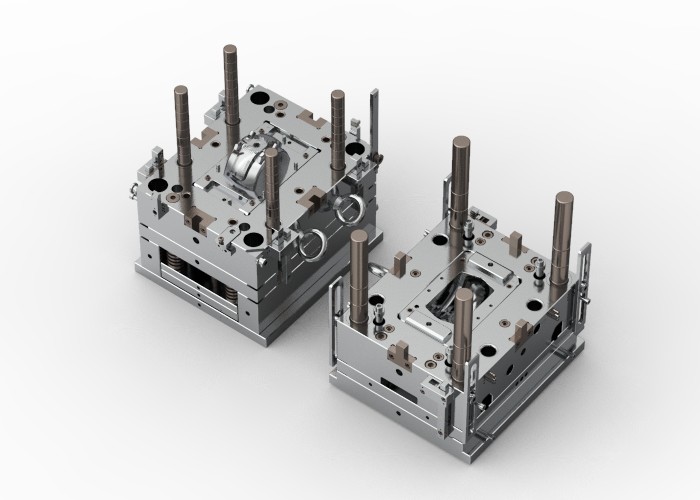

| The mold is designed with the standard mold base DAI4050 A = 145, B = 125, and C = 120. It has a mold size of 450 x 500 x 431mm and weighs 877kg. This mold is suitable for a 140T machine. It is a three-plate mold with a blue A surface that has been etched with MT11010. The injection part material used is PC+ABS, and it has a pin point gate. The weight of the injection part is 33.8g, and the tool life is 500k shots. |

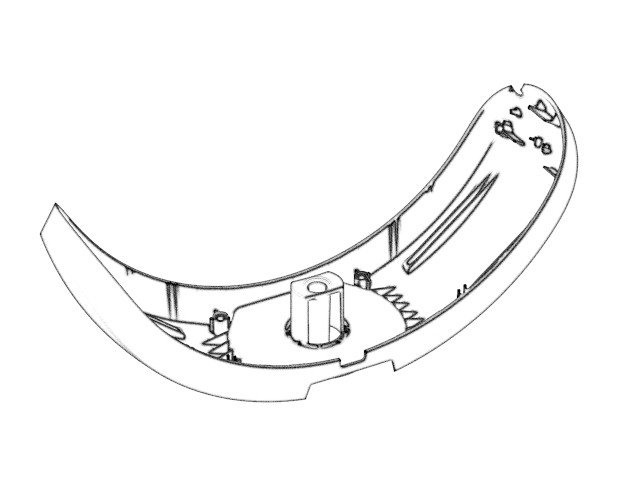

| The mold is designed with a cold runner system, and the size of the molded part is 172.56 x 49.70 x 72.85mm. It complies with the LKM standard and has hardened cavity and core. The strict surface finish process ensures that the molded part has high precision and is free of burrs. |

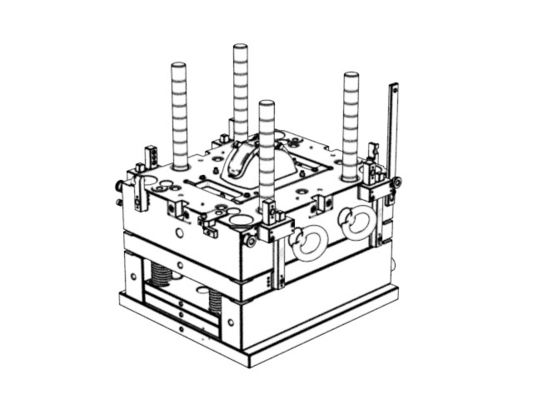

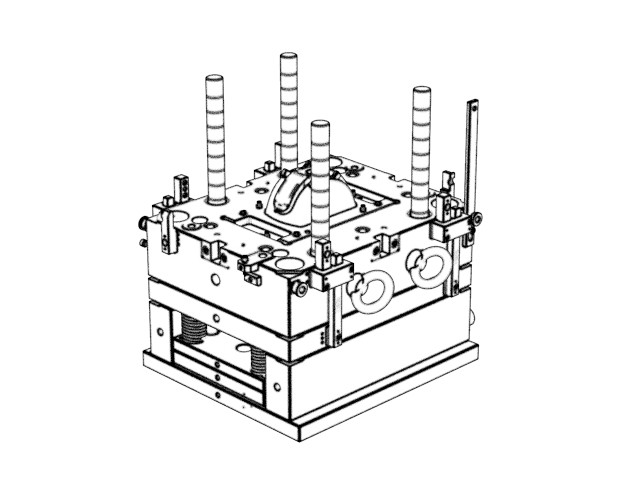

Display diagram
