OEM / ODM ： Custom Household Appliance Molds / On-Board Clamp Bracket (1*8) No.24119-B
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 350.000 X 452 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 141kg | Mould Life | 500000 Shots |
| Mould Base | LKM | Design Software | (3D)UG 4.0/ (2D）CAD |
| Injection/runner Type | Hot Runner | ||
| High Light | OEM Multi Cavity Injection Mold,Clamp Bracket Multi Cavity Injection Mold |
||
Product Description

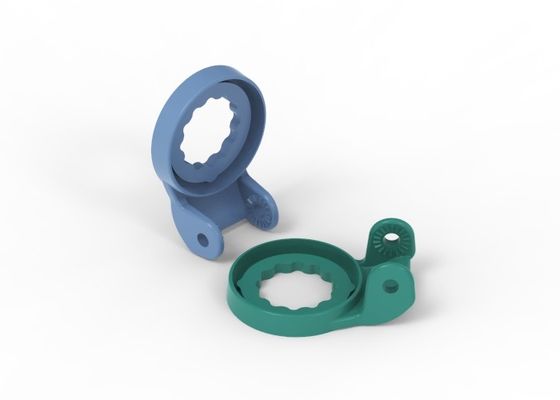

On-board Clamp Bracket (1*8)
No.24119-B
Description:
| Our company's Multi Cavity Injection Molds are engineered with precision to ensure consistent part quality and uniformity across all cavities. This design maximizes production efficiency and reduces cycle times by allowing the simultaneous production of multiple identical parts within a single molding cycle. The durable construction of our molds ensures longevity and reliability, contributing to cost savings and sustained high-volume manufacturing capabilities. Additionally, our molds are customizable to accommodate diverse part geometries and material specifications, providing adaptability to meet a wide range of production needs. |
Application:
fixture bracket
Plastic connector
Features:
| Mold base P/N | FCI3035 6012090 |
| Mold size | 350 X 350 X 452mm |
|

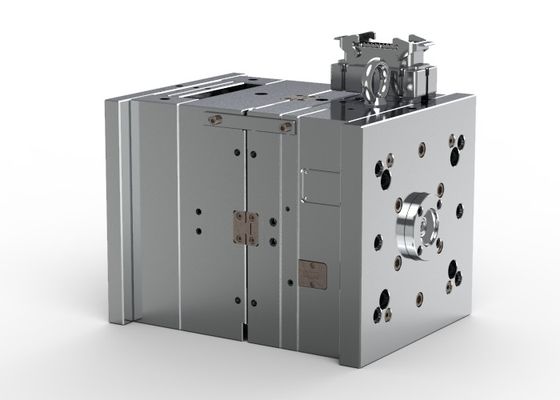

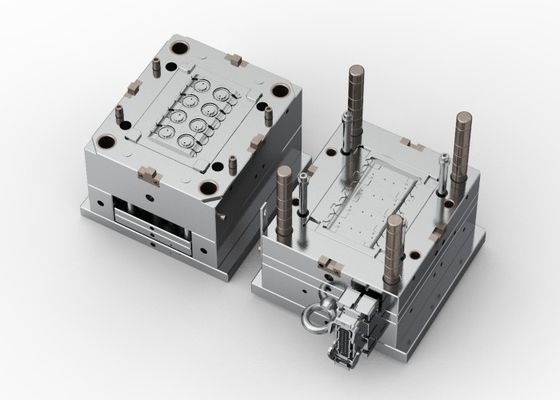

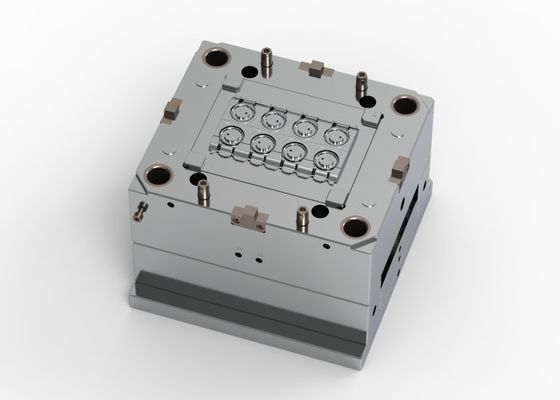

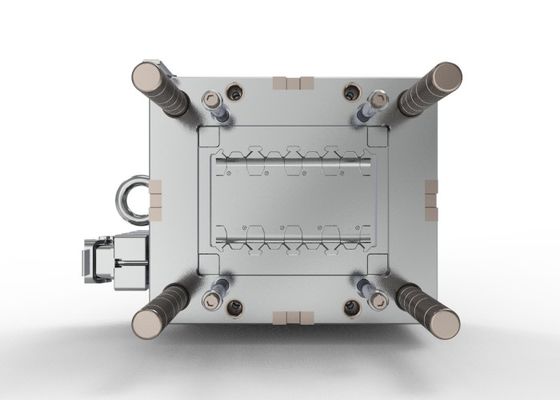

The mold build with LKM standard, three-plates structure. The gate is flexible in position, and self-degating, with small gate mark.Mold net weight 141kg, fits 100T tonnage IMM. |
|
| Lifter | 2 |
| Mold life | Up to 500K shots |
| Injection/runner type | Hot runner |
| Surface finish | A surface EDM with Charmilles VDI24# |
| Steel of cavity & core | Harden (1*8/S136) |
| Part material | PC |
| Part weight | 0.08g |
| Part size | 12.19 X 12.16 X 2.00mm |
Advantage:
| Our company's Multi Cavity Injection Molds are meticulously designed to revolutionize the manufacturing process. By enabling the simultaneous production of multiple identical parts within a single molding cycle, these molds significantly enhance production efficiency and reduce lead times. The precision engineering of our molds ensures consistent part quality across all cavities, resulting in high-quality finished products. Moreover, the robust construction of our Multi Cavity Injection Molds guarantees longevity and reliability, leading to cost savings and sustained high-volume manufacturing capabilities. Additionally, the customizable nature of our molds allows for the accommodation of diverse part geometries and material specifications, providing adaptability to meet a wide range of production needs. |

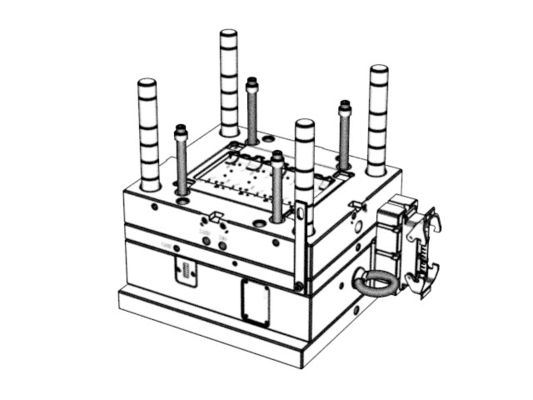

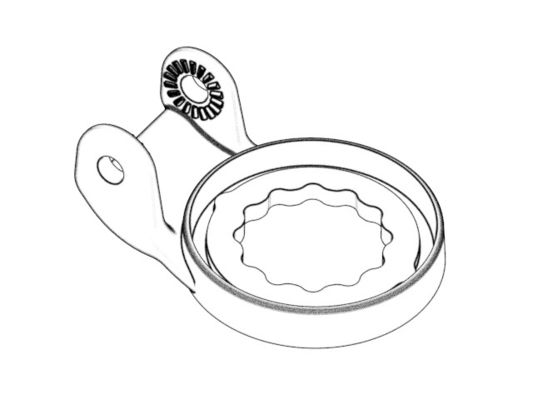

Display diagram
| [Mold life] | Up to 500K shots | ||||
| [Injection/runner type] | Hot runner |
||||
