OEM / ODM ABS Injection Molding Front Housing (1*1) No.22724-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mold Size | 400 X 500 X 511 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 611kg | Gate | Pin Point Gate |
| Tool Life | 500k Shots | Steel Of Cavity And Core | Harden (1*1/S136) |
| Type | Three-plates Mold | ||
| High Light | 1*1 Front Housing Injection Molding,ABS Injection Molding Front Housing |
||
Product Description
Front Housing (1*1)
No.22724-C
| In my role as a marketing manager, I am committed to delivering a polished and precise overview of the mold, taking into account the provided specifications. This particular mold is a three-plates mold, meticulously designed to ensure optimal performance and productivity. It incorporates a pin point gate for injection and operates on a cold runner system. With a remarkable tool life of 500,000 shots, this mold is specifically engineered to endure extensive high-volume production. |
| The LKM mold standard is strictly followed by the mold, guaranteeing top-notch quality and compatibility. To enhance its durability and resistance to wear, the cavity and core are constructed using hardened steel (1*1/S136). The mold's surface finish is meticulously crafted, with the inner surface being treated with EDM VDI27# (Makino) and certain areas finished with EDM VDI18# (Makino). |

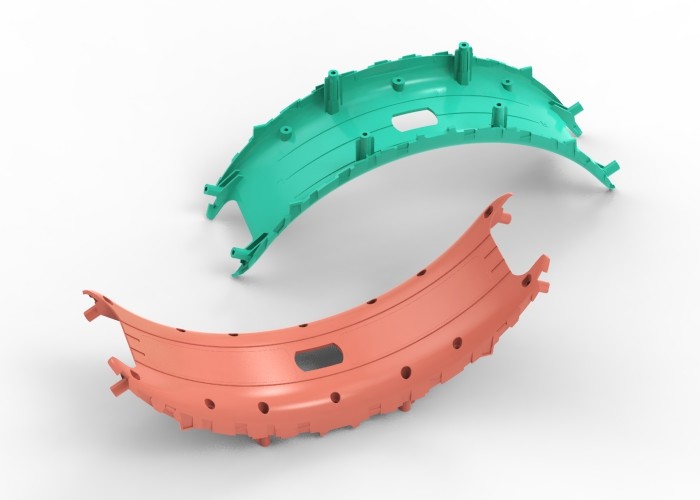

| The dimensions of the mold are 400 x 500 x 511mm, weighing 611kg. It is carefully constructed to guarantee a seamless fit with no rough edges. This mold is intended for use with an injection molding machine (IMM) that has a tonnage of 110T. The product created with this mold is composed of PC+ABS material, weighing 20g, and measuring 154.34 x 45.23 x 58.10mm. |

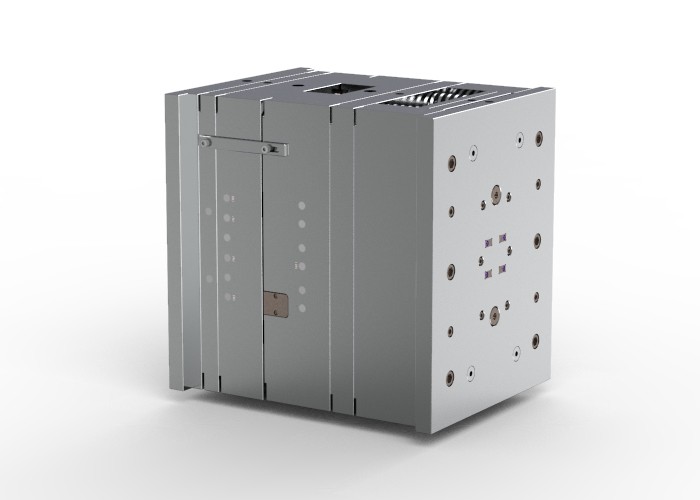

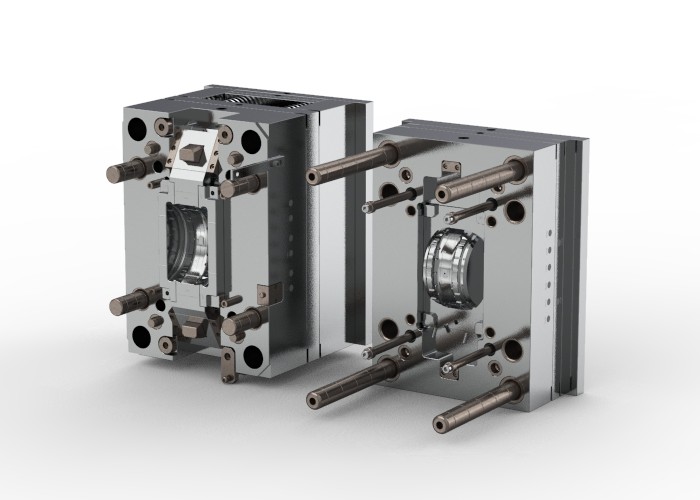

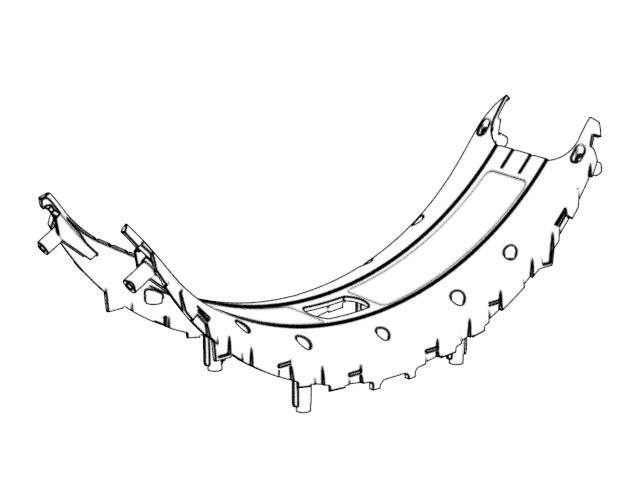

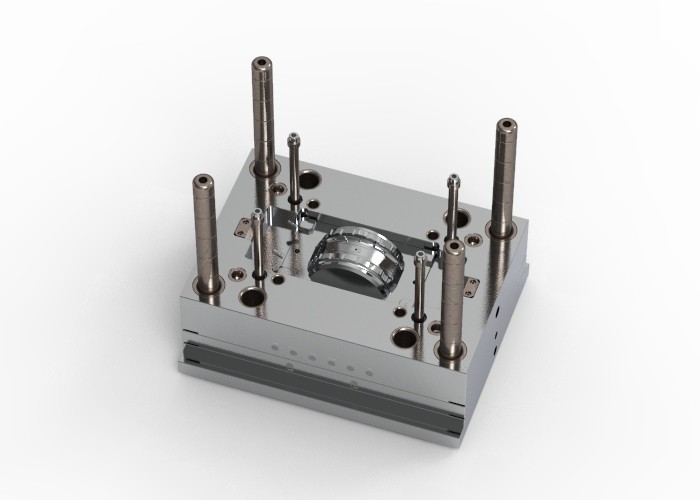

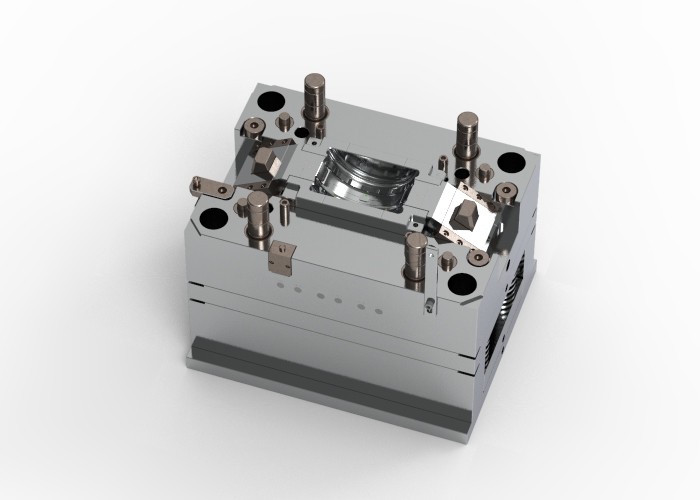

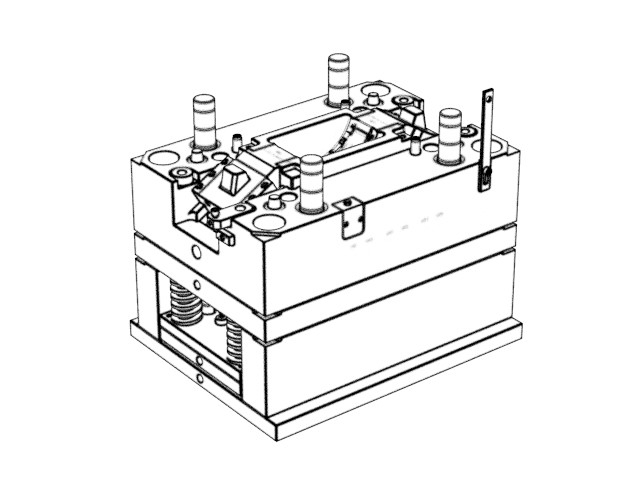

Display diagram
