OEM / ODM ： Insert Injection Molding & Three-proof Phone Housing (1*2) No.23689
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Slides & 6 Lifters | Size | L 450 X W 600 X H 534.6 |
|---|---|---|---|
| IMM Tonnage | 180T | Mold Weight | 977kg |
| Part Weight | 12.6g | Part Size | 77.63 X 169.25 X 9.33mm |
| Standard | LKM | Part Material | PC+GF10% |
| Type | Three-plates Mold | ||
| High Light | Phone Housing Insert Injection Molding,PC Insert Injection Molding,LKM PC Injection Molding |
||
Product Description
Three-proof Phone Housing (1*2)
No.23689
| ★ Mold base P/N: FCI4060 75110100 | |||||
| ★ Mold information: | |||||
| ① Size | L 450 X W 600 X H 534.6 | ||||
| ② Gate | Pin point gate (the pin point gate turns to the side gate) | ||||
| ③ Mold life | ≥ 500k shots | ||||
| ④ Mold weight | 977kg | ||||
| ★ Mold features: | |||||
| ① 4 slides | ② 6 lifters | ||||
| ★ Mold details: | |||||
| ① Type | Three-plates mold | ||||
| ② Part material | PC+GF10% | ||||
| ③ Surface finish | ⑴ A surface EDM with VDI24# ⑵ Other surfaces polished with 1000# |
||||
| ④ Standard | LKM | ||||
| ⑤ Steel of cavity & core | Harden (1*2/S136) | ||||
| ⑥ Injection/runner type | Hot runner | ||||
| ⑦ IMM Tonnage | 180T | ||||
| ⑤ Part weight | 12.6g | ||||
| ⑨ Part size | 77.63 X 169.25 X 9.33mm | ||||

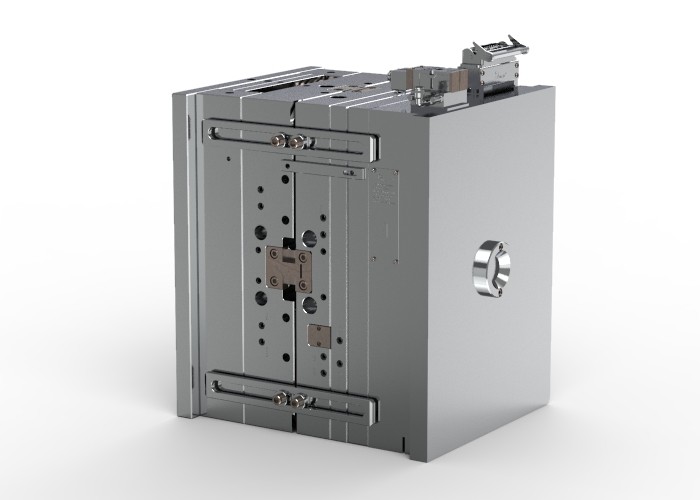

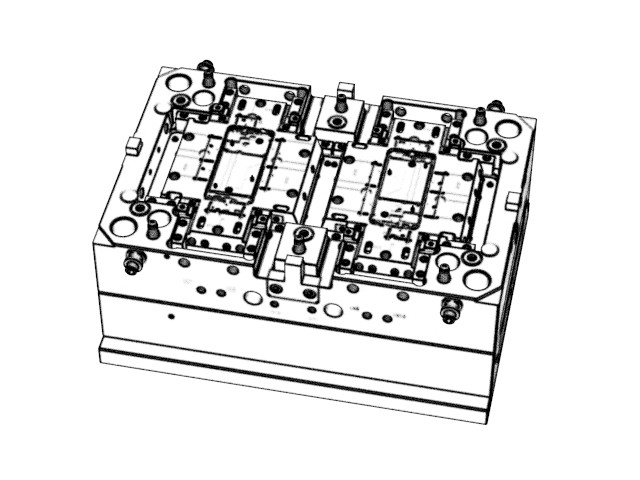

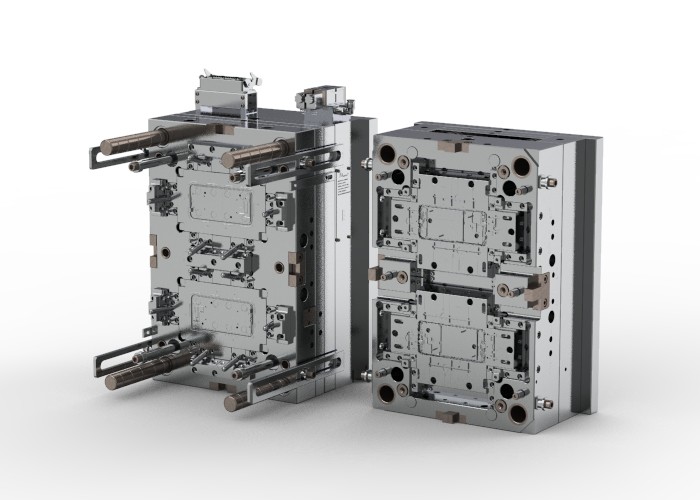

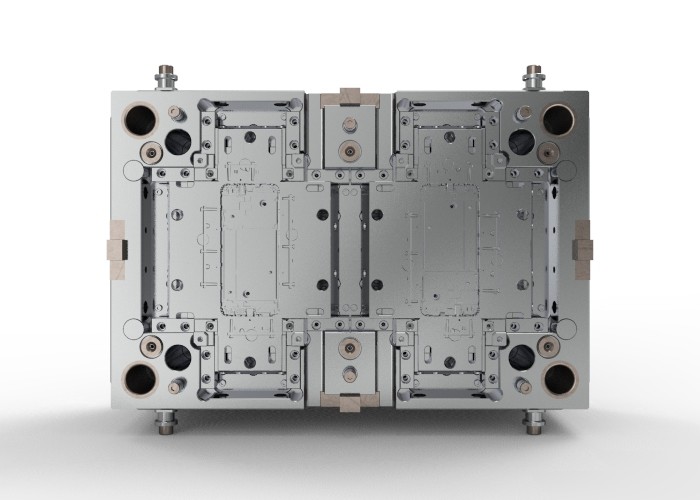

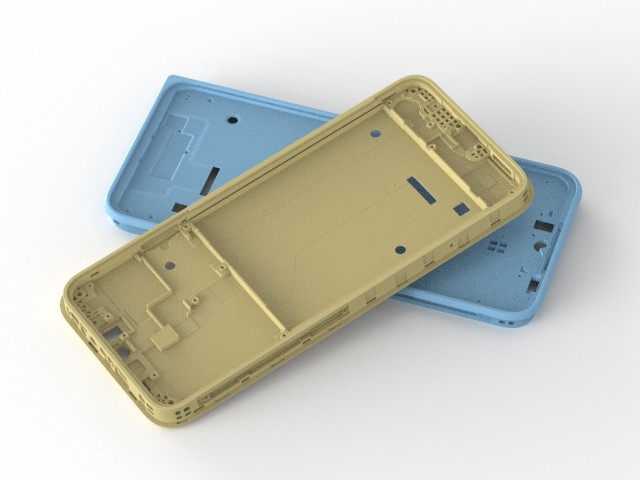

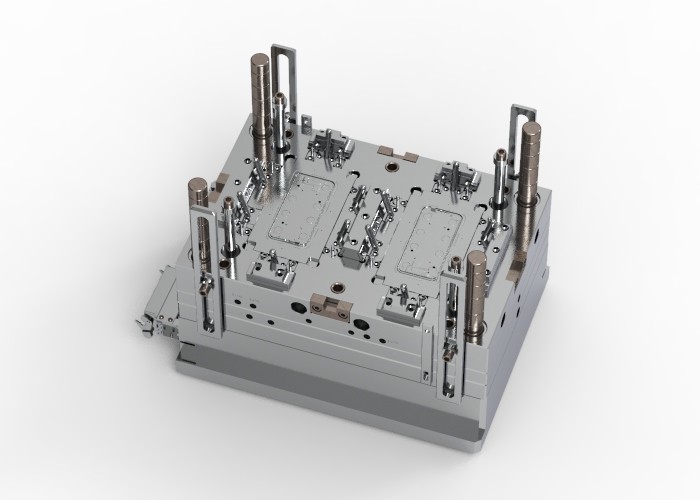

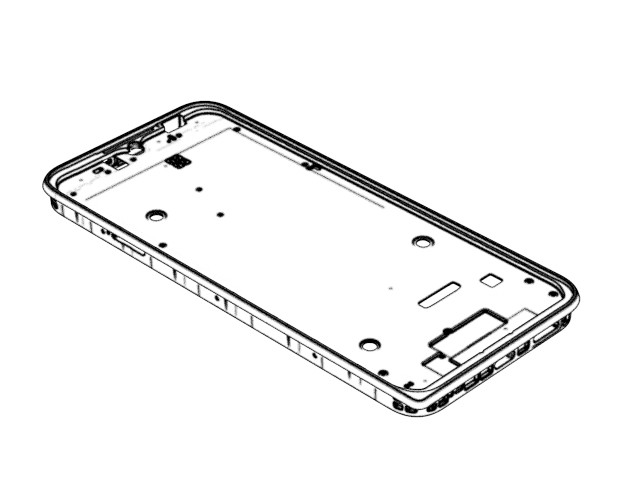

Display diagram
