OEM / ODM Insert Injection Molding Transparent Middle Frame (1*1) Mold Making No.22448-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Phone Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 450 X 426 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 470kg | Runner | Cold Runner |
| Mould Life | ≥500000 Shots | Design Software | 3D:UG 4.0, 2D:CAD |
| Mold Base | Custom Mold Base | Gate Type | Side Gate |
| Highlight | OEM Transparent Middle Frame Mold,Transparent Frame Insert Injection Molding,Insert Injection Molding Middle Frame |
||
Product Description
Transparent middle frame (1*1)
No.22448-C
| The mold has been meticulously engineered with a well-designed structure to ensure even pressure distribution and minimize the concentration of stress. It is expertly crafted using high-quality steel, featuring a hardened cavity and core that provide exceptional hardness and resistance to wear. With an impressive tool life, this mold can last for 5-10 years or withstand up to 50,000 shots. |

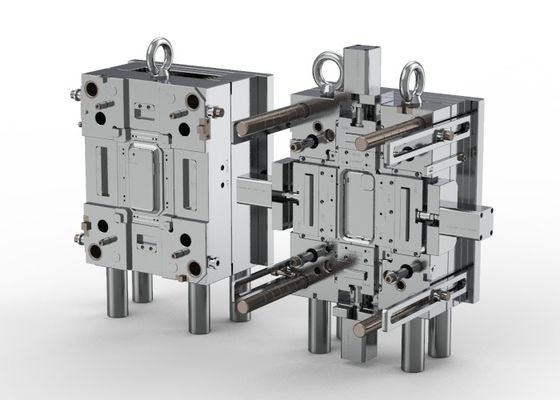

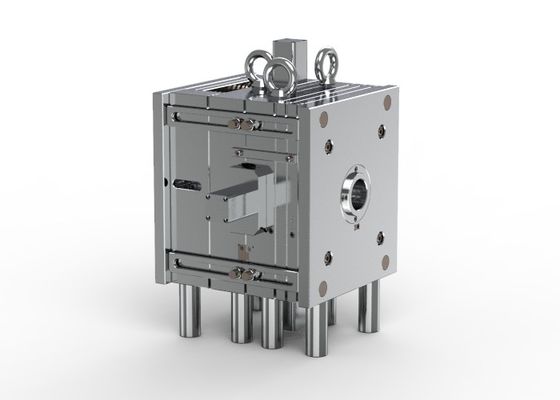

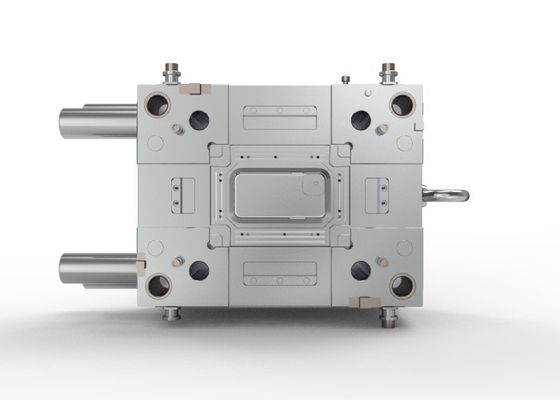

| Additionally, this particular mold is designed with a customized mold base to perfectly accommodate specific needs. It is a three-plates mold equipped with a side gate, enabling efficient and accurate injection molding procedures. The mold strictly adheres to the LKM mold standard, ensuring exceptional quality and dependability. Measuring 400mm in length, 450mm in width, and 426mm in height, and weighing 470kg, this mold is a durable and sturdy tool. |

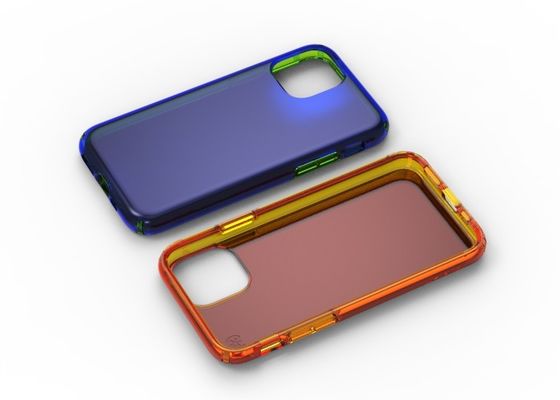

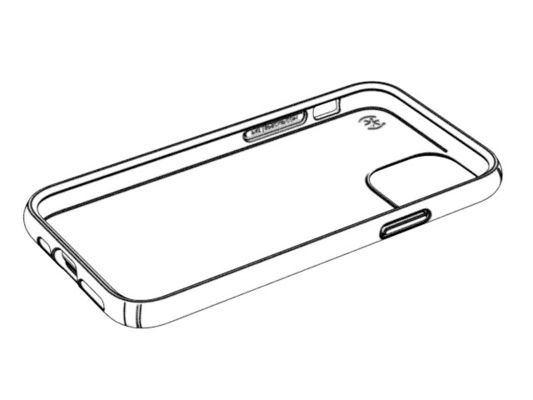

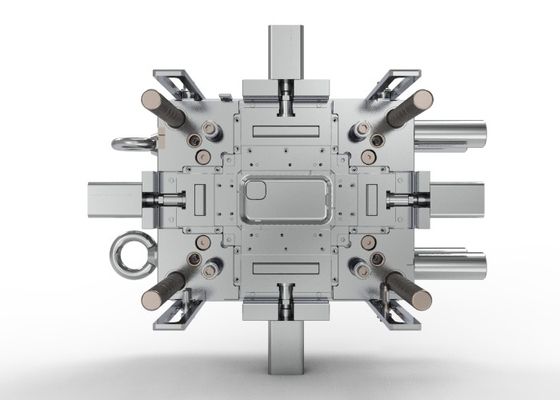

| The mold is equipped with a smooth surface finish, meeting the strict SPI-A1 standards. It employs a cold runner injection/runner type, ensuring efficient material flow and minimizing wastage. Notably, it incorporates 4 slides (cylinders) and the cavity and core hardness surpasses 50HRC, ensuring precision and durability. This mold is specifically designed for TPE material injection molding, with an injection part size measuring 150.4mm in length, 78.5mm in width, and 11.8mm in height. The injection part has a weight of 10g, making it suitable for a wide range of applications. |

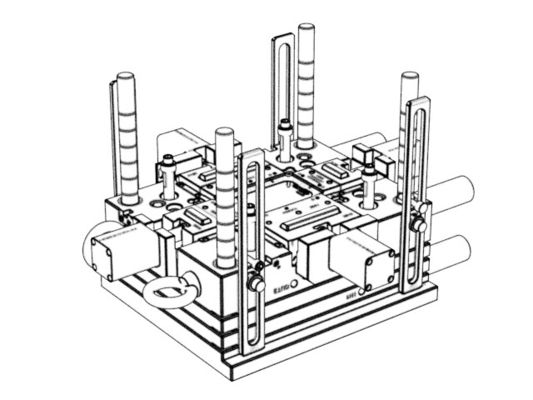

Display diagram
