Transparent Front Housing (1*2) / hot runner turns to cold runner / Three-plates mold No.21774
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | AD | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 550kg | Runner | Hot Runner Turns To Cold Runner |
| Mould Life | ≥500000 Shots | Mold Base | LKM |
| Type | Three-plates Mold | Slides | 4 |
| Lifters | 6 | ||
| High Light | Hot Runner Plastic Insert Molding,500k Shots Plastic Insert Molding,LKM Hot Runner Plastic Molding |
||
Product Description

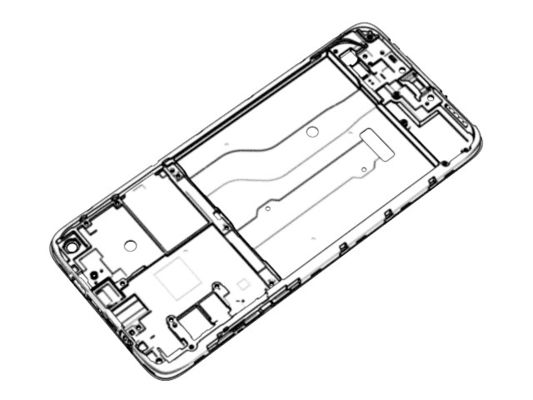

Transparent Front Housing (1*2)
No.21774
The mold is designed with LKM standard, hot runner turns to cold runner,
saving materials, stable molding, shorter cycle time
| Mold base | Standard | FCI4060.6090100 | ||
| Size | 450 X 600 X 501mm | 4 slides and 6 lifters | ||
| Type | Three-plates mold | |||
| Injection/runner type | The hot runner turns to the cold runner | IMM Tonnage | 180T | |
A surface polished to 1000# sandpaper, the gluing surface (jet) EDM with VDI27#, and other
surfaces EDM with VDI24#. The tool life of is up to 500k shots. Harden the cavity and core
with 1*2/S136 to have high hardness and good anti-wearing performance.

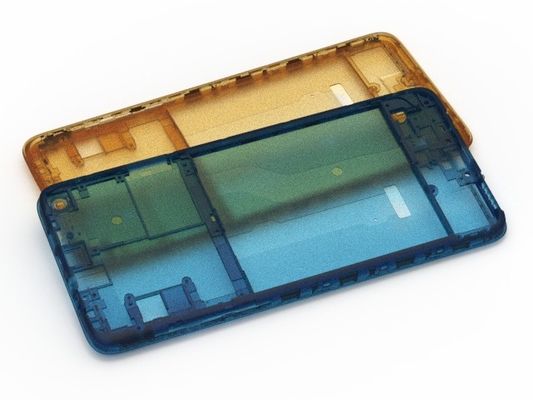

The part material is
PC+10% GF, with good strength. The part weight is 6g, and the part size is
160.37 X 75.00 X 7.50mm.

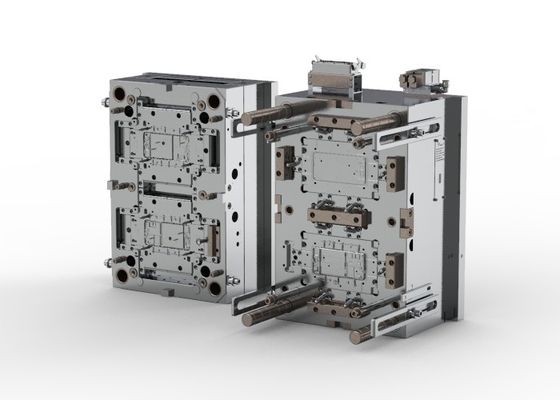

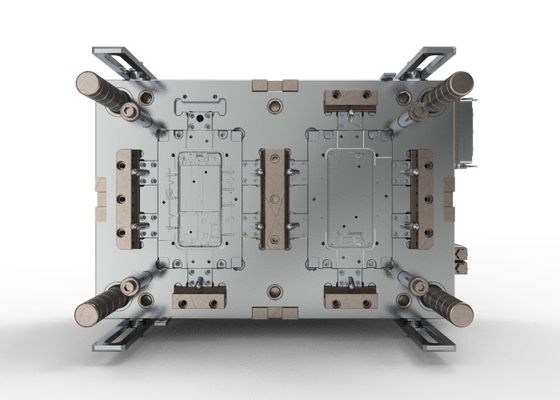

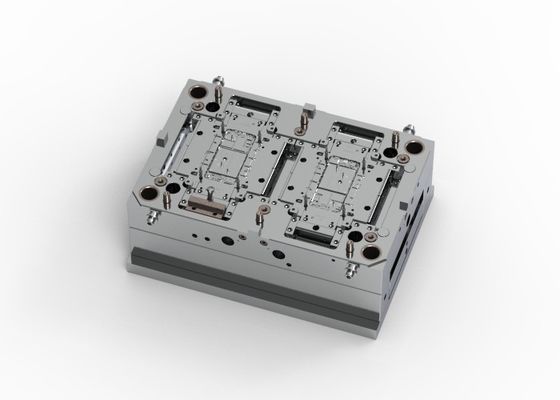

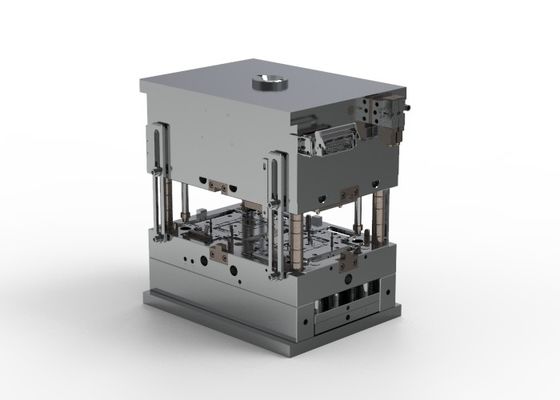

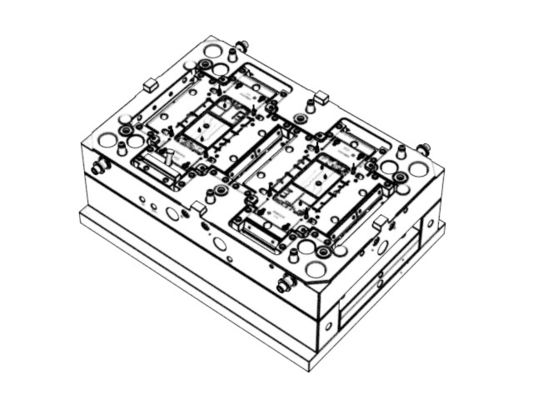

Display diagram
