OEM / ODM Insert Injection Molding Middle Frame (1*1) No.22448-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Phone Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | AD | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 470kg | Part Material | TPE |
| Part Weight | 10g | Surface Finish | Polished To SPI-A1 |
| Gate | Side Gate | Standard | LKM |
| Mold Base | Custom Mold Base | ||
| High Light | ODM Injection Molding middle Frame,OEM Injection Molding middle Frame,middle Frame Insert Injection Molding |
||
Product Description
Middle frame (1*1)
No.22448-B
|
The mold has been crafted with a well-thought-out design to guarantee even pressure distribution and reduce the risk of stress concentration. Made from high-quality steel, it boasts a hardened cavity and core, leading to superior hardness and outstanding resistance to wear. This mold is engineered to last between 5 to 10 years or up to 50,000 shots, making it durable enough to endure heavy usage.
|
| The custom mold base supports the three-plates mold type, featuring a side gate for injection following the LKM mold standard. This sturdy mold measures 400 x 450 x 426mm and weighs 470kg, ensuring reliability. It boasts a polished surface finish meeting SPI-A1 standards for a sleek appearance. Equipped with a cold runner injection/runner type and four slides (cylinders), the mold's cavity and core hardness exceed 50HRC for longevity. The injection part, crafted from TPE material, is 150.4 x 78.5 x 11.8mm and weighs 10g. |

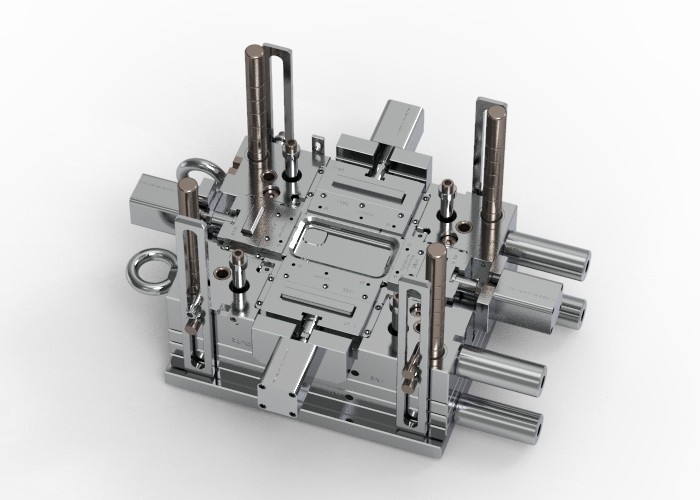

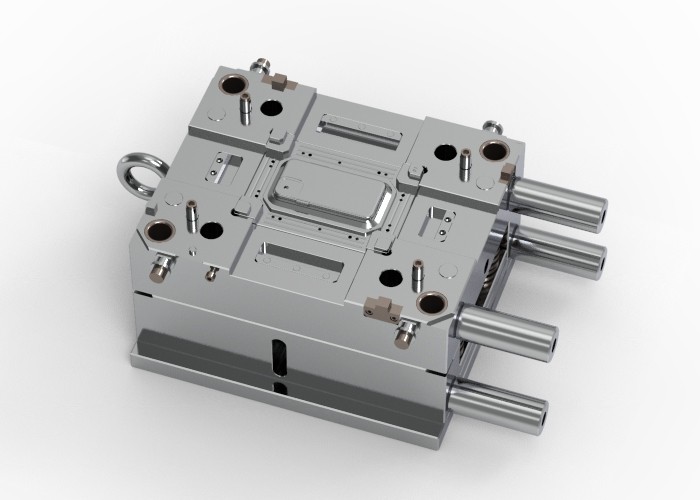

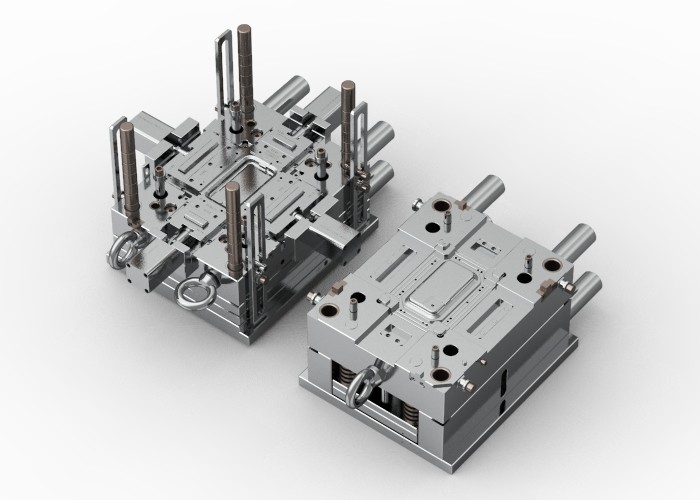

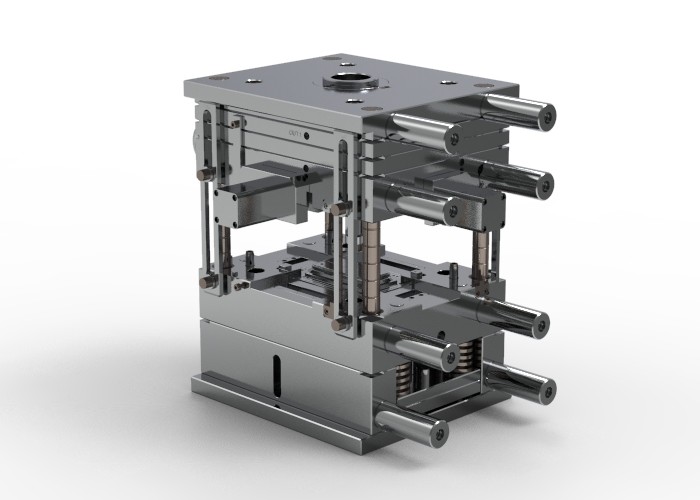

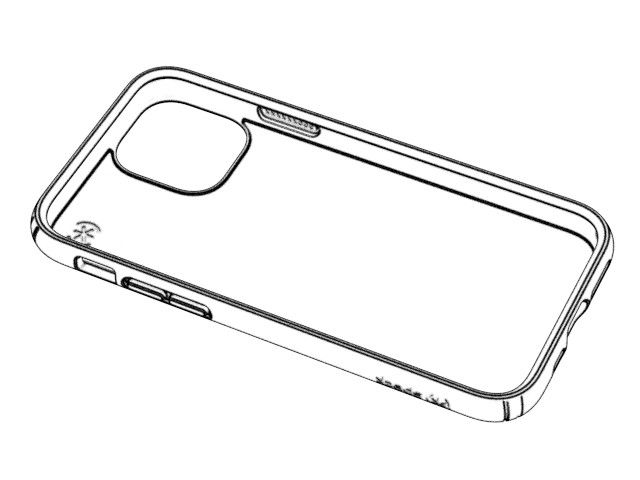

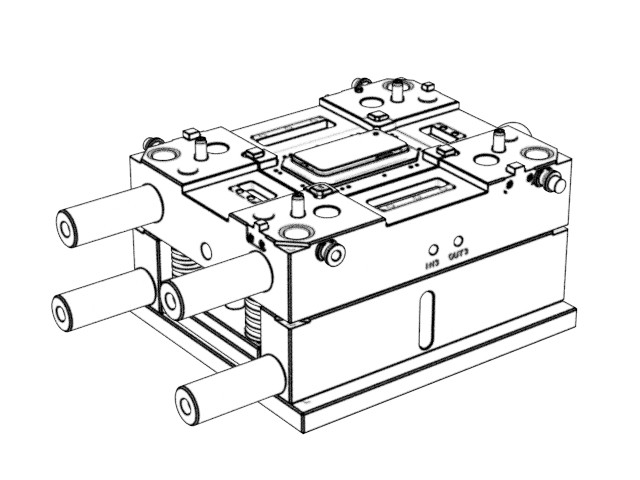

Display diagram
