Transparent middle frame (1*1) / Cold runner / Three-plates mold No.22448
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Phone Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 450 X 426 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 470kg | Runner | Cold Runner |
| Mould Life | ≥500000 Shots | Design Software | 3D:UG 4.0, 2D:CAD |
| Mold Base | Custom Mold Base | Gate Type | Side Gate |
| Highlight | Three Plate Insert Injection Molding,500k Shots Insert Injection Molding,Cold Runner metal insert molding |
||
Product Description

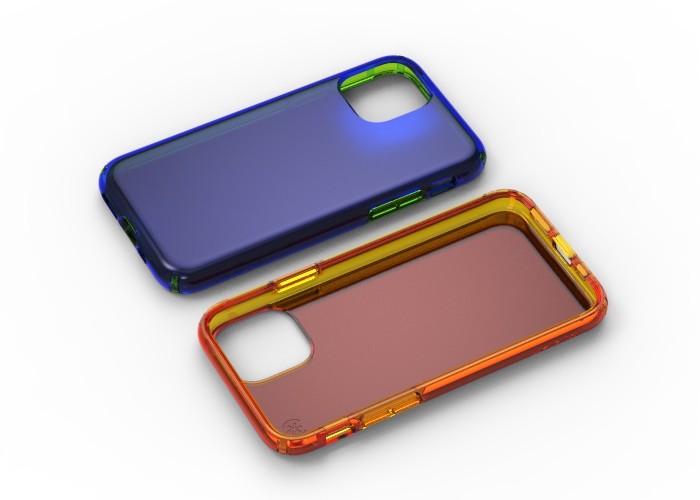

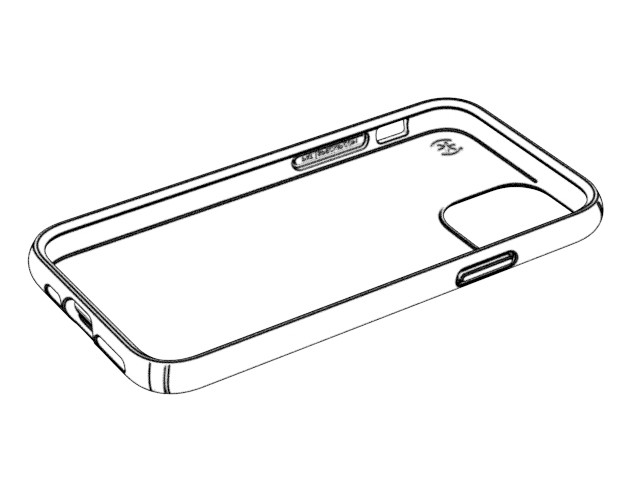

Transparent middle frame (1*1)
No.22448
The mold has a reasonable structure to ensure uniform pressure and minimized stress concentration.
The tool life is up to 5-10 years (50 K shots). It is made from clean steel, with hardened cavity and core,
so that it has high hardness and anti-wearing performance.
Injection/Runner Type: Cold runner
| Mold base | Custom mold base |
| Type | Three-plates mold |
| Gate | Side gate |
| Standard |
LKM |
| ★ Mold size: | 400 X 450 X 426mm |
| ★ Mold weight: | Net weight 470 kg |
| ★ Surface finish: | Polished to SPI-A1 |
| ★ Part size: | 150.4X 78.5X 11.8mm |
| ★ Part weight: | 10g |
| ★ Part material: | TPE |

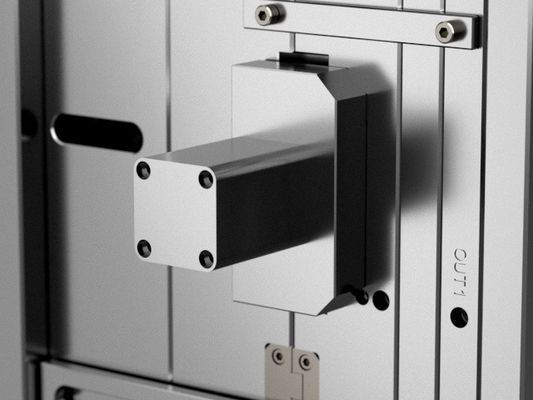

Features: Designed with 4 slides (cylinders), cavity and core hardness > 50HRC

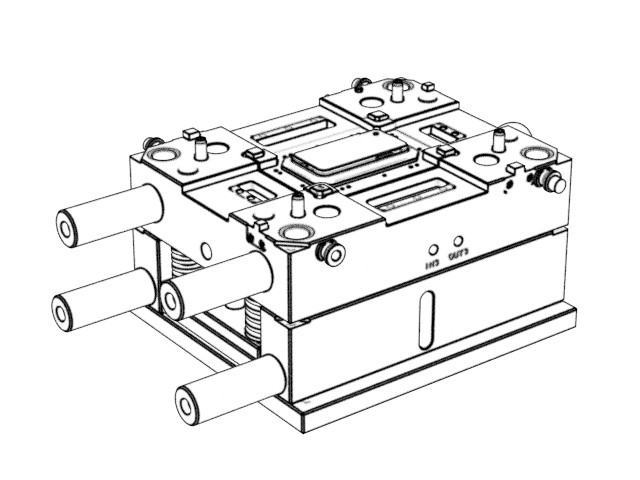

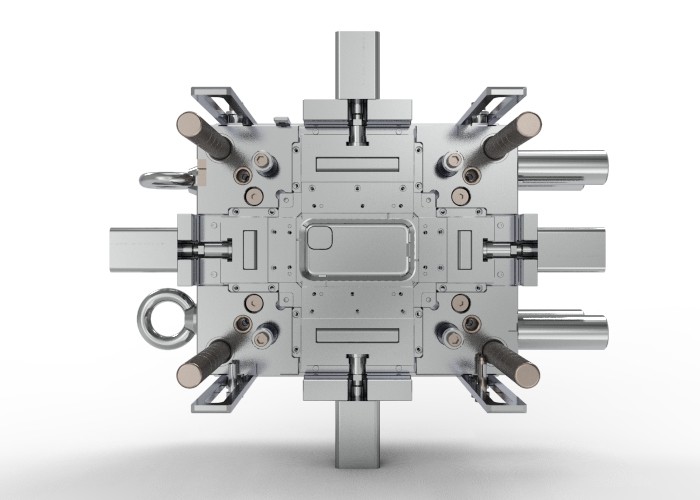

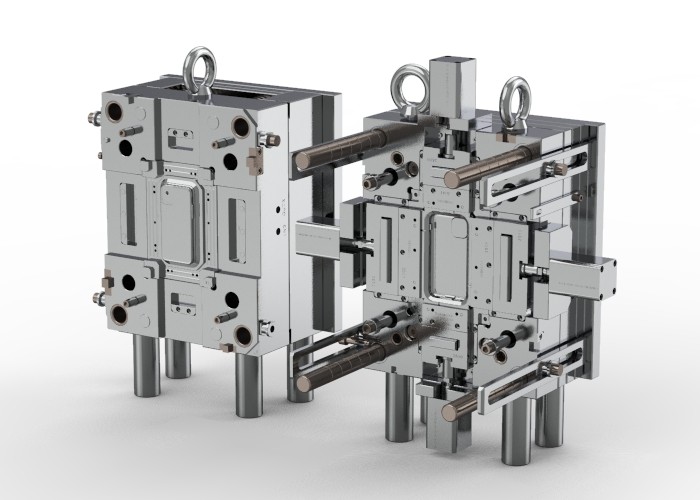

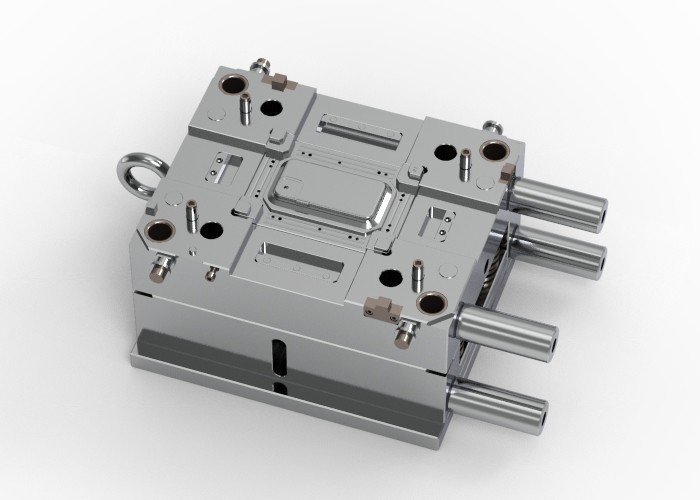

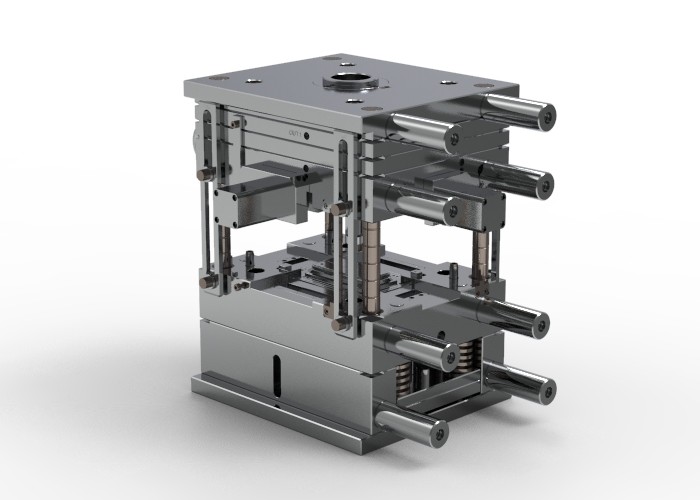

Display diagram
