Transparent Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Digital Pen |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 150.000 X 220.000 X 177.000mm | IMM Tonnage | BOY10(T) |
|---|---|---|---|
| Mold Weight | 47(KG) | Type | Two-plates Mold |
| Standard | LKM | Tool Life | 500k Shots |
| Part Material | PA | Gate | Sub Gate |
| High Light | Stylus Tip Insert Injection Molding,500k Shots Insert Injection Molding,LKM Insert Moulding |
||
Product Description
Transparent Stylus Tip (1*8)
No.24848
| Brand | Chitwing | Standard | Type | Part material | Mold weight | |
| Origin | Guangdong, China | LKM |
Two-plates mold |
PA | 47kg | |
| Injection/runner type | Cold runner | |||||
| Tool length/width/height | IMM Tonnage | ||||
| 150/220/177 | BOY10T |

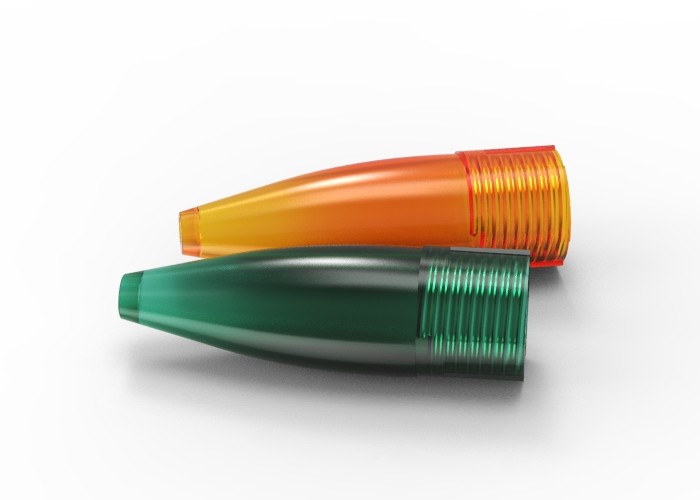

☆ Part size:Φ6.0*10.0mm
☆ Part weight:0.1g
☆ Features: In-mold unscrewing
| A surface EDM with Charmilles VDI18; harden the cavity and core with 1*8/S136, so that their hardness ≥ 50HRC, and the hardened surface > 600HV; the mold surface is smooth and free of roughness; with high hardness and anti-wearing performance, good strength, and uniform wall thickness. The molded part is easy to unscrew, with precise thread and clear details w/o flow marks and gas marks; suitable for mass production with high quality. | |||||||

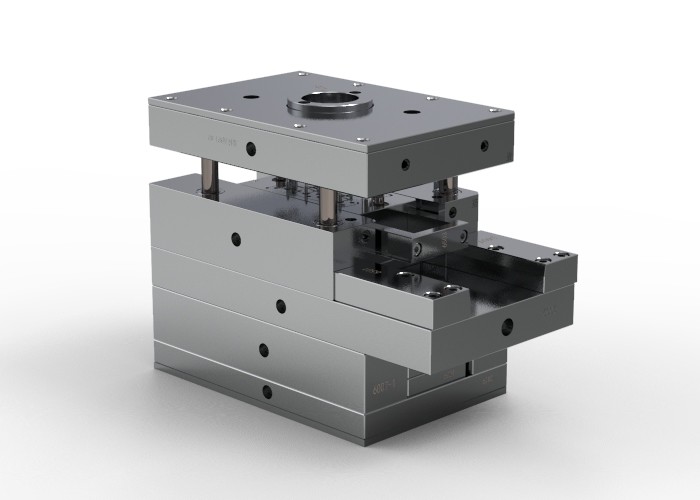

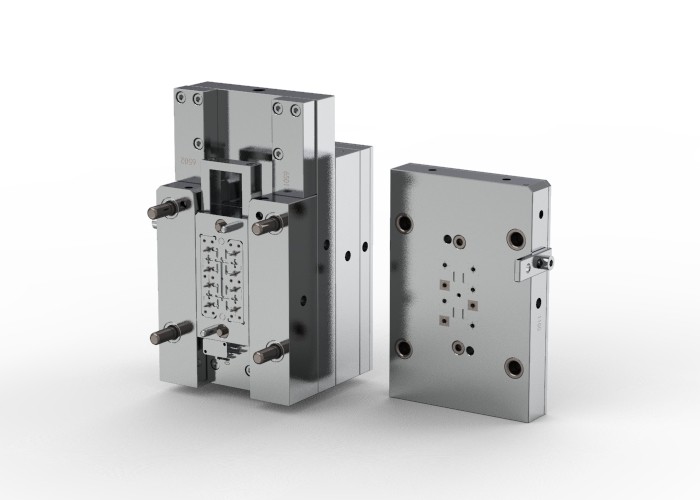

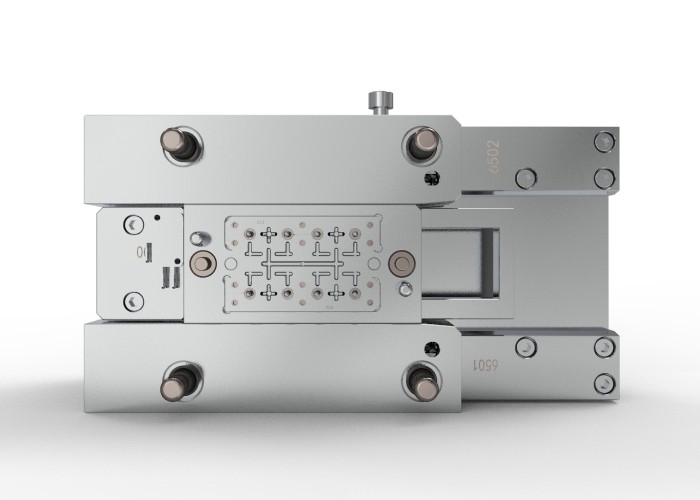

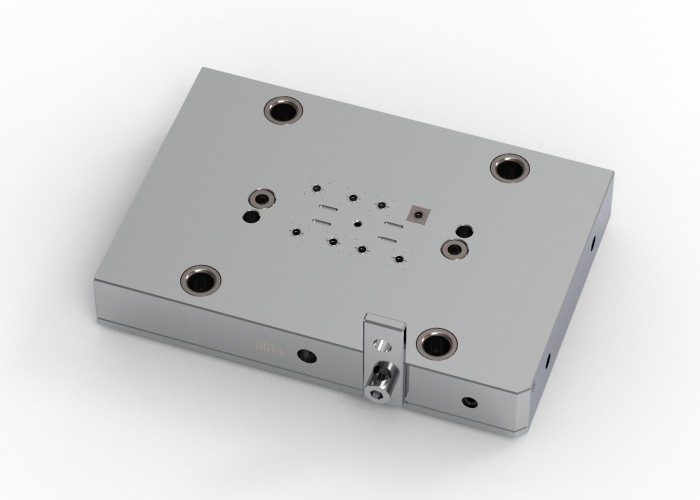

Display diagram
