Transparent Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Watch |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350 X 500 X 346 | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 373kg | Part Material | PC |
| Type | Three-plates Mold | Standard | LKM |
| Gate | 3 Pin Point Gates+1 Sub Gate | Part Weight | 1.5g |
| High Light | Smartwatch Bracket Insert Injection Molding,LKM Insert Injection Molding,Molding Three Plate 500k Shots |
||
Product Description

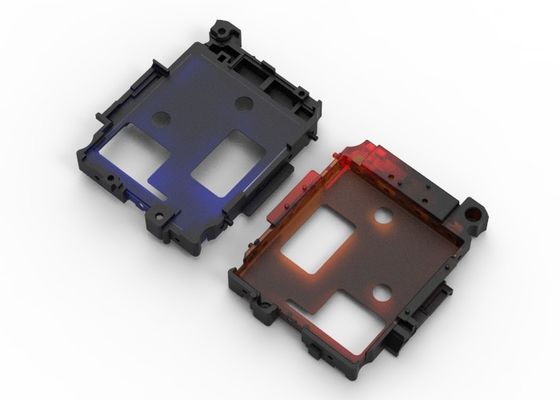

Transparent Smartwatch
Middle Frame Bracket (1*2)
No.22401
| Brand: Chitwing | Gate: 3 pin point gates+1 sub gate |
| Origin: Guangdong, China | Standard mold base |
| Standard: LKM | Injection/Runner Type: Cold runner |
| Type: three-plates mold | Part material: PC |
The large surface EDM with Charmilles VDI24#, and harden the cavity and core with 1*2/S136,
so that the mold has higher toughness and anti-wearing performance. Insert molding with steel
sheet, 4 slides, better mold opening and higher efficiency.
| [Mold size] | [Mold net weight]: |
| 350 X 500 X 346mm | 373kg |
| [Part size]: | [Part net weight]: |
| 33.3*41.7*6.6 | 1.5g |
| [IMM tonnage]: | 80T |

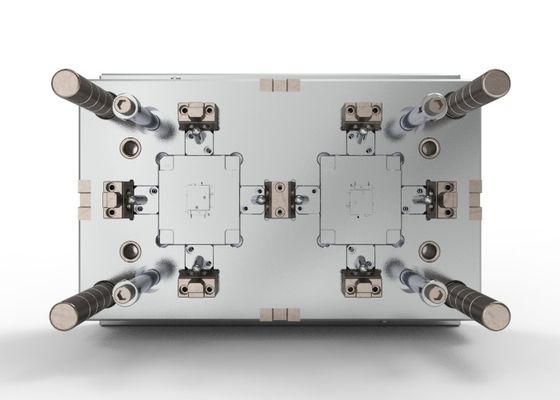

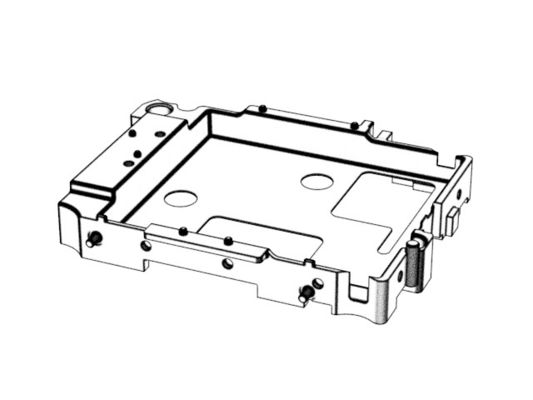

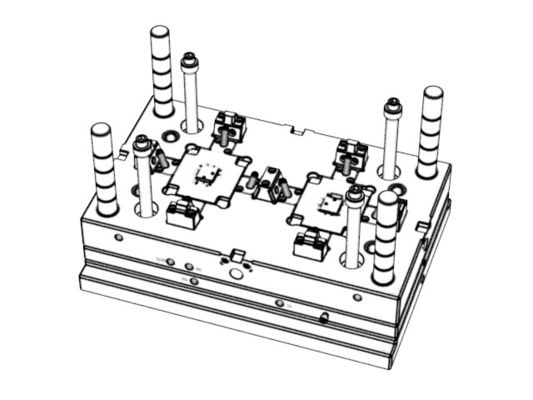

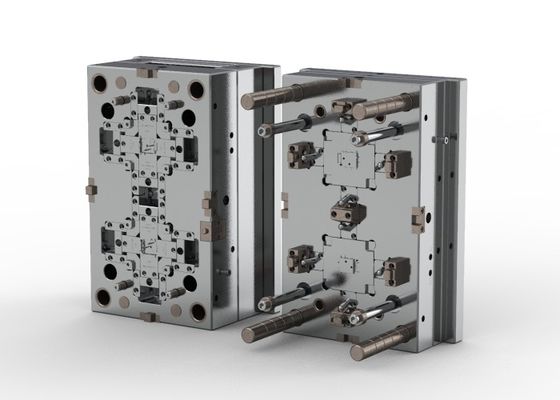

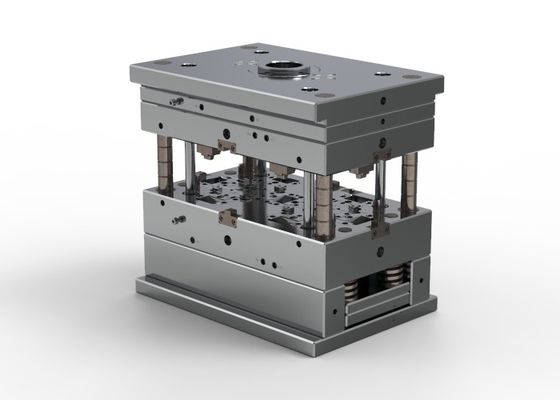

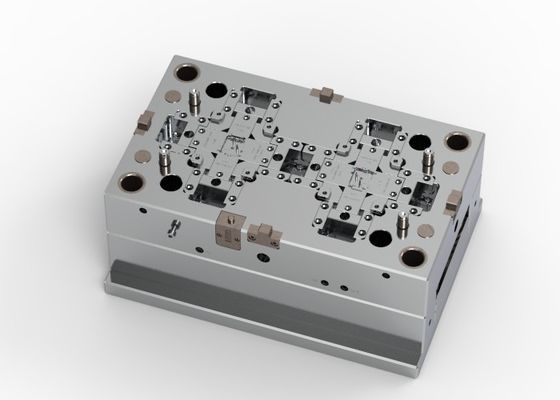

Display diagram
