OEM / ODM ： Insert Injection Molding & Transparent Three-proof Phone Housing (1*2) No.23689
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.00 X 600.00 X 534.60 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 977kg | Gate | Pin Point Gate |
| Mold Life | ≥ 500k Shots | Mold Features | 4 Slides + 6 Lifters |
| Type | Three-plates Mold | Part Material | PC+GF10% |
| Standard | LKM | Injection/runner Type | Hot Runner |
| High Light | 500k Shots Metal Insert Plastic Injection Molding,LKM Metal Insert Plastic Injection Molding,Hot Runner Metal Insert Plastic Injection Molding |
||
Product Description

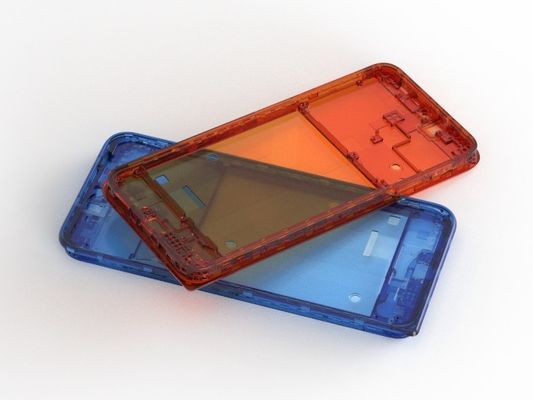

Transparent Three-proof Phone Housing (1*2)
No.23689
＞Mold base P/N: FCI4060 75110100

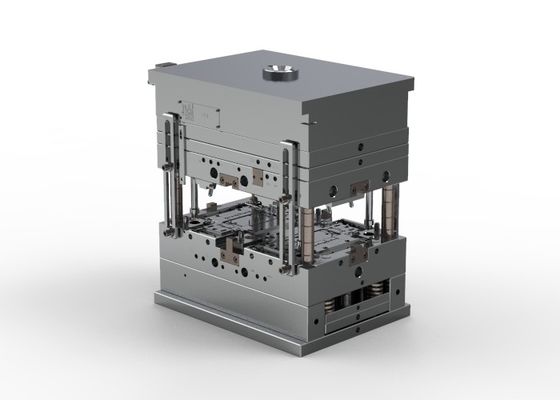

| ☆ Mold size (L) 450 (W) 600 (H) 534.6 |
☆ Gate (pin point gate to side gate). It is flexible in position, and the sprue bushing does not need to be off center of mold base. |
||||
| ☆ Tool life More than 500K shots |
☆ Type Three-plates mold |
||||
| ☆ Injection/runner type Hot runner |
☆ Part material PC+GF10% |
|
☆ Surface finish |
☆ Standard LKM |
||||
| ☆ Steel of cavity & core Harden (1*2/S136) |
|||||
| ☆ Mold weight 977kg |
☆ IMM Tonnage 180T |
||||
| ☆ Part weight 12.6g |
☆ Part size 77.63 X 169.25 X 9.33mm |
||||
☆ Features:4 slides+6 lifters

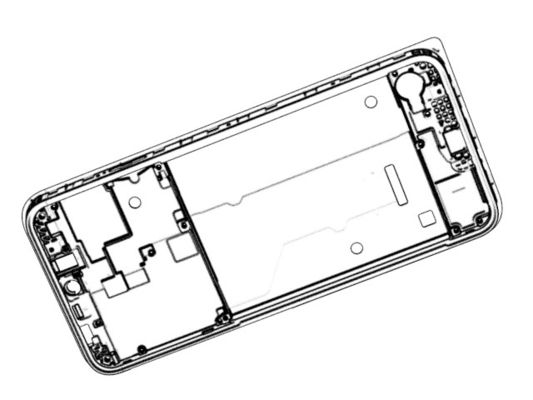

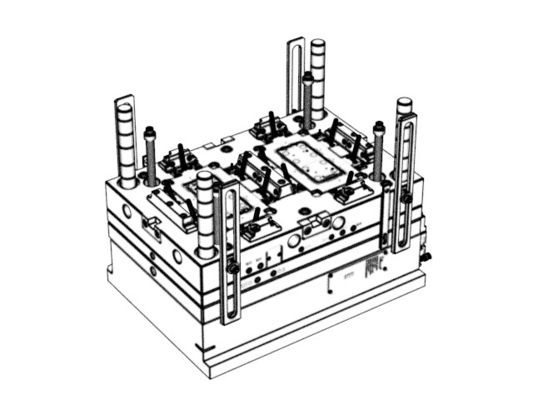

Display diagram
