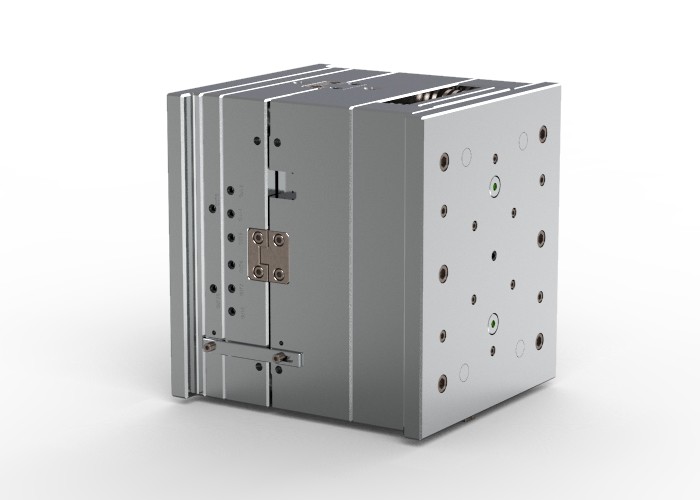

POA Rear Pad (1*1)/ Cold runner /Three-plates mold No.22729
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 450 X 429 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 482kg | Mould Material | S136 |
| Material | PC+ABS | Mould Life | 500，000 Shots |
| Mould Base | LKM | Design Software | 3D:UG 4.0/2D:CAD |
| High Light | 110T Cold runner Injection Molding,LKM Cold runner Injection Molding,500k Shots Cold runner Injection Molding |
||
Product Description

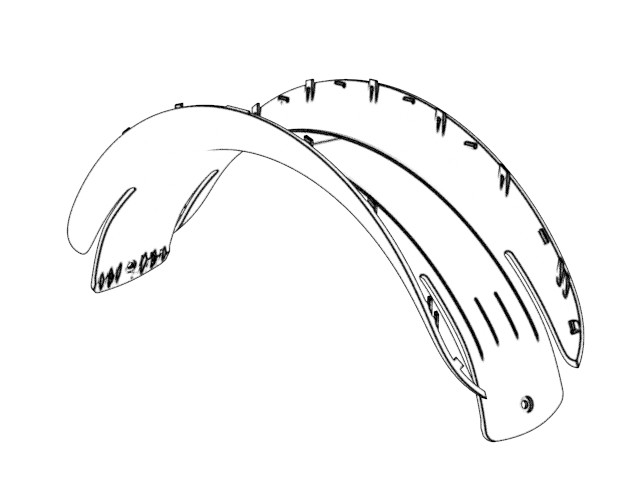

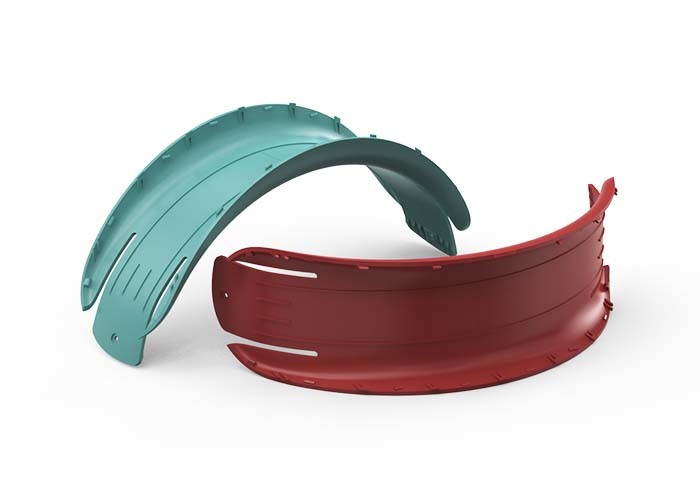

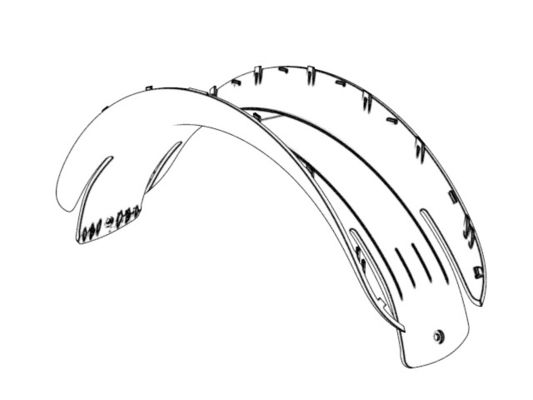

POA Rear Pad (1*1)
No.22729
The mold is designed with cold runner. A surface with MT11010 etch; partial surfaces EDM with
VDI27# (Makino), LKM standard
| Length | Width | Height |
| 400 | 450 | 429 |
| Gate | Pin point gate | |
| Tool life | 500k shots | |

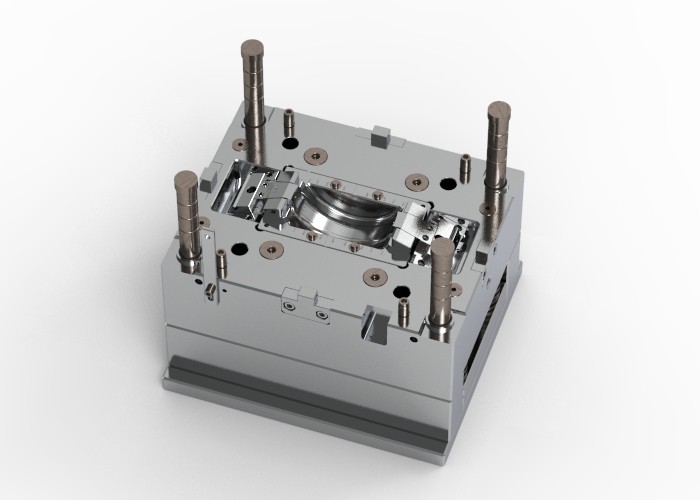

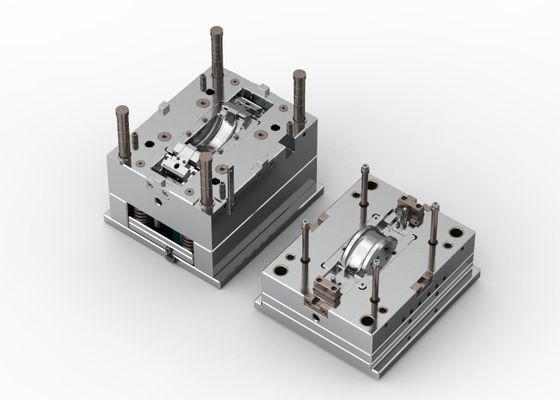

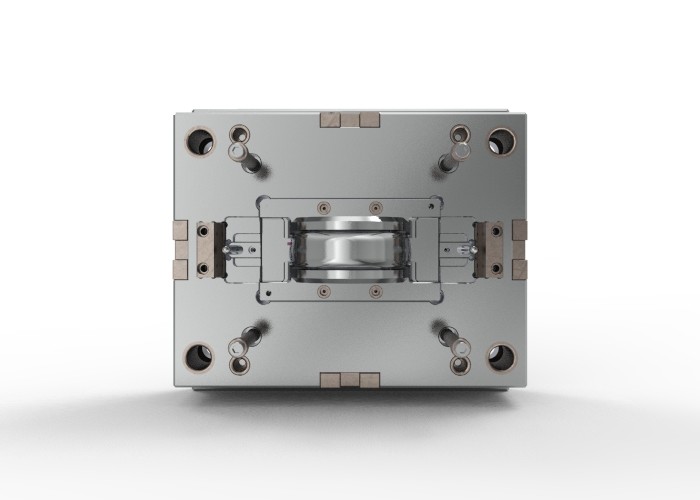

Three-plates mold structure, harden cavity+core (1*1/S136) with hardened surface,
hardness > 600HV
| Part material | PC+ABS | |||||
| Features | 2 slides and 18 lifters | |||||
| ★ Mold net weight: 482 kg (IMM tonnage: 110T) |
| ★ Part net weight: 15g |
| ★ Part size: 158.51 X 47.92 X 70.83mm |

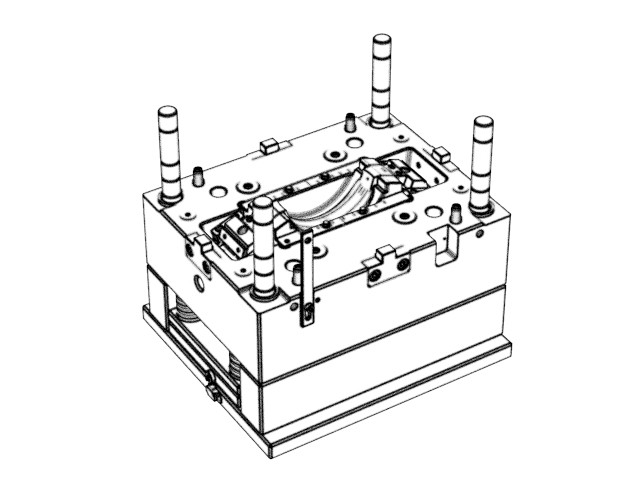

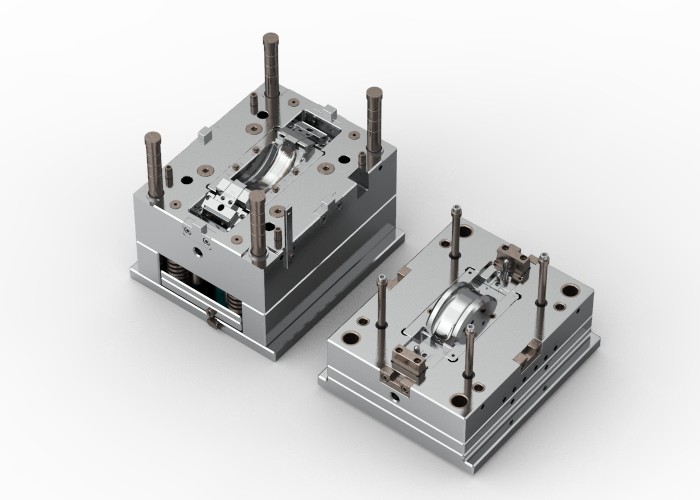

Display diagram
