VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300 X 300 X 306 | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 166kg | Product Material | PC+ABS |
| Mould Life | 500000 Shots | Runner | Cold Runner |
| Gate Type | Side Gate | Design Software | (3D)UG 4.0/ (2D）CAD |
| High Light | VR Shell Ring Cold runner Injection Molding,Cold runner Injection Molding,80T Injection Molding Cold Runner |
||
Product Description
VR Rear Shell Ring (1*2)
No.22731
| Mold base | Standard mold base P/N: FCI2530.608080 | ||||
| Length | Width | Height | Injection/runner type | Standard | |
| 300 | 300 | 306 | Cold runner | LKM | |
| Gate | Side gate | The pin point gate turns to the side gate | |||
| This is a three-plates mold, which requires no post-processing and can realize auto demolding | |||||
| Mold weight | 166kg | ||||
| Tool life | 500k shots | ||||
| Part material | PC+ABS | ||||
| Part weight | 1.5g | ||||
| Part size | 49.16X49.16X2.0mm | ||||
| Surface finish | 1. A surface with MT11010 etch | ||||
| 2. Other surfaces EDM with VDI18# (Makino) | |||||
| Steel of cavity and core | Harden (1*2/S136) | ||||

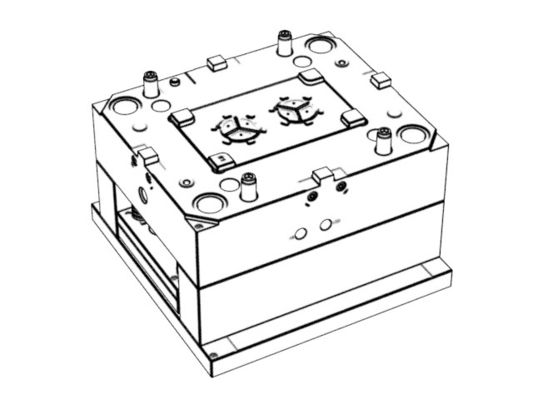

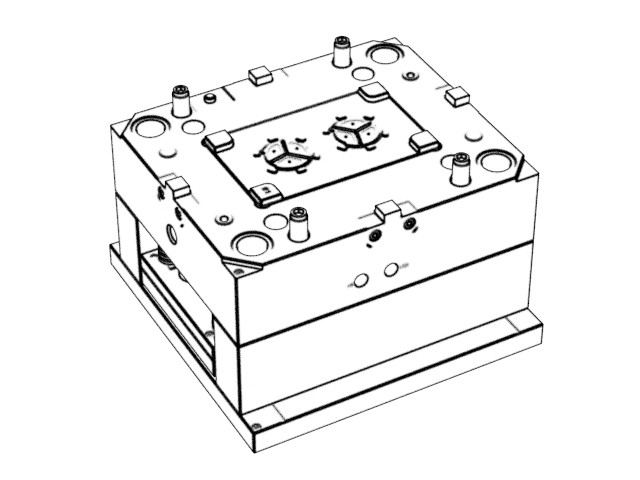

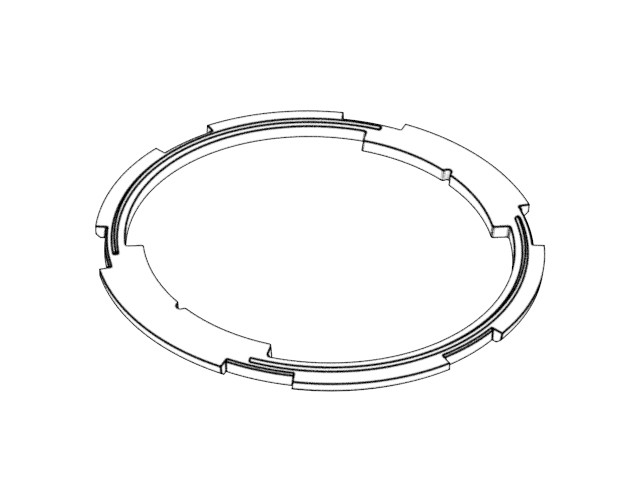

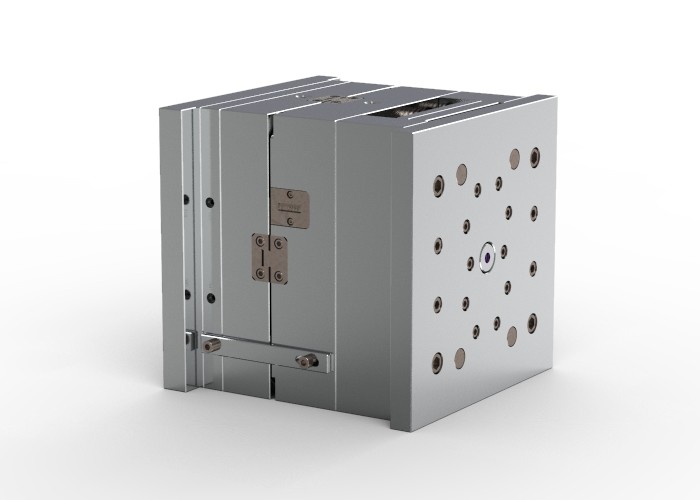

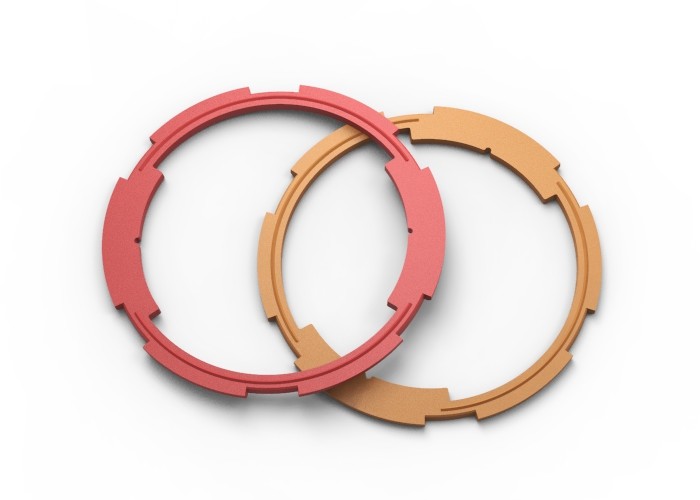

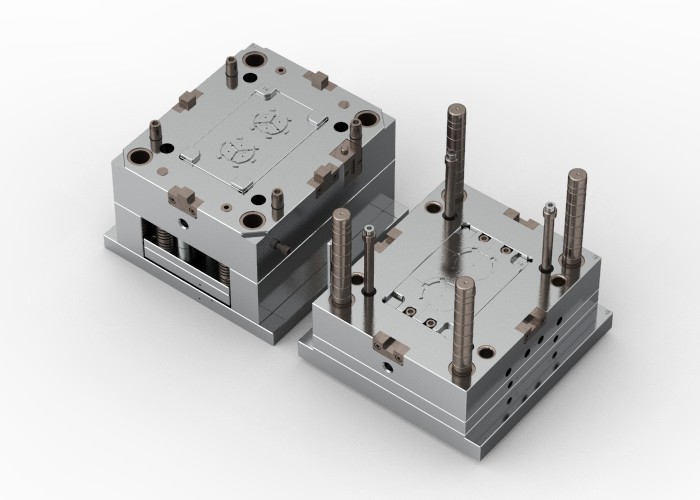

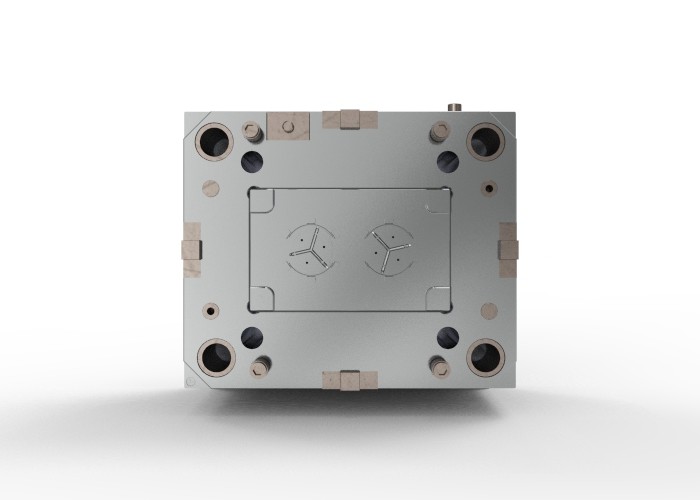

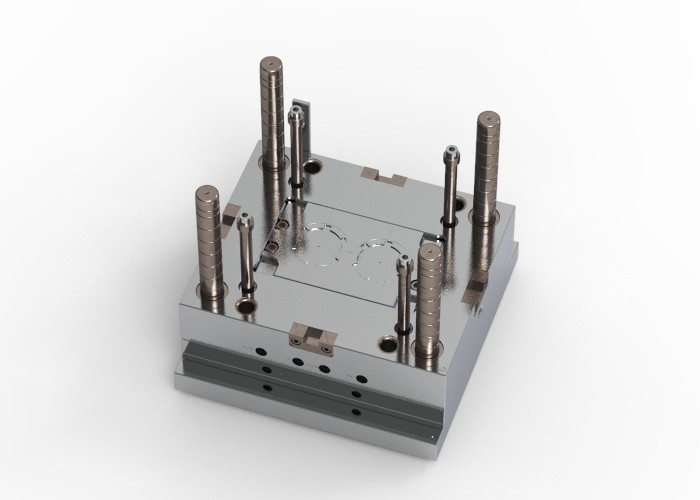

Display diagram
