POA Transparent Side Belt Guide Bracket (1*2) / Cold runner /Three-plates mold No.22728
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450 X 450 X 416 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 536kg | Part Material | PC+ABS |
| Part Weight | 14.5g | Mold Net Weight | 482kg |
| Design Software | 3D-UG 4.0/ 2D-CAD | ||
| High Light | POA Bracket ABS Injection Molding,110T ABS Injection Molding,500k shots two cavity mold |
||
Product Description

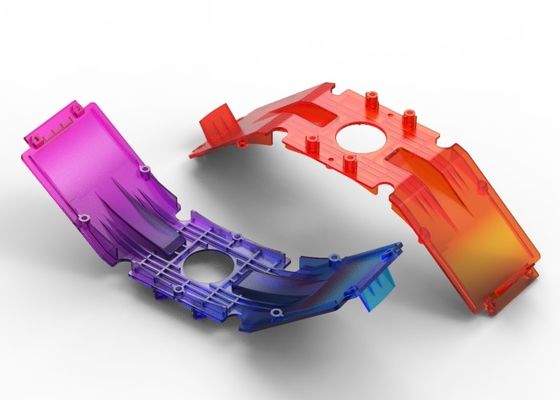

POA Transparent Side Belt
Guide Bracket (1*2)
No.22728
| Size | 450 X 450 X 416mm |
| Standard | Type |

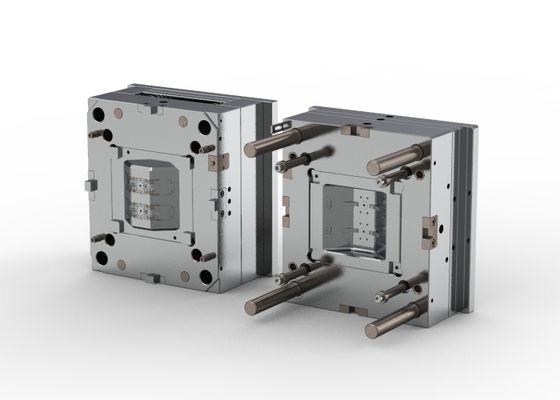

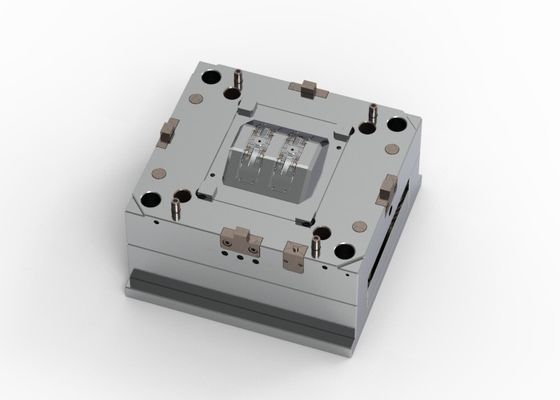

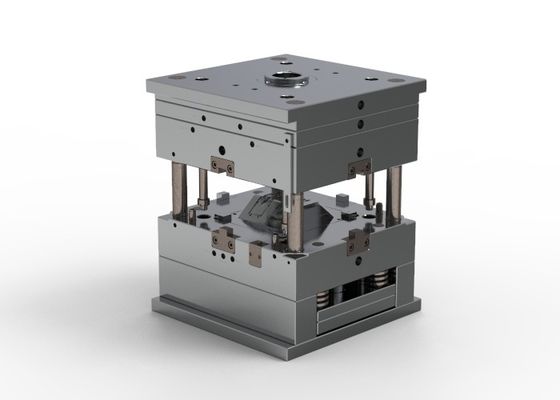

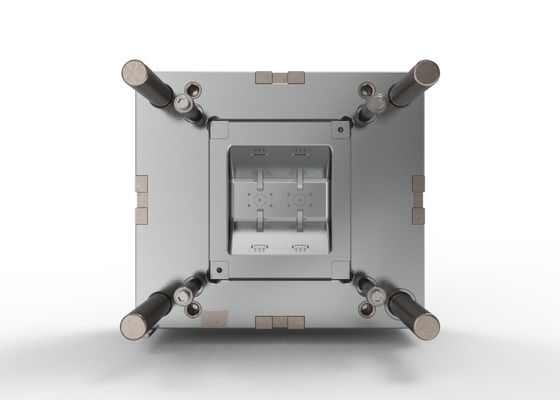

| LKM | Three-plates mold |
| Gate | Tool life |
| Pin point gate | 500k shots |
Surface finish has high precision, smooth w/o pits. Partial surfaces EDM with VDI18# (Makino);
harden the cavity and core
| Part material | PC+ABS |
| Part weight | 14.5g |
| Part size | 152.36X41.12X42.59mm |
| Mold size | 450 X 450 X 416mm |
| Mold net weight | 482kg |
| Mold features | 2 slides |
IMM tonnage: 110T

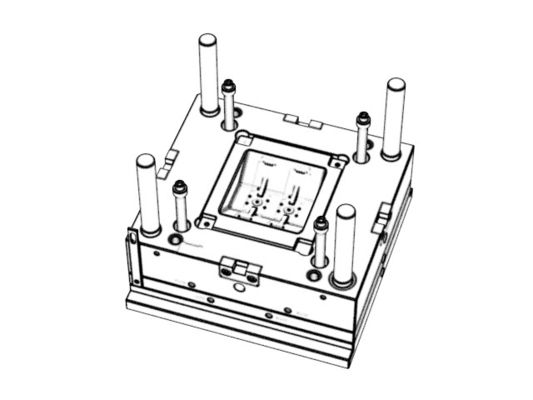

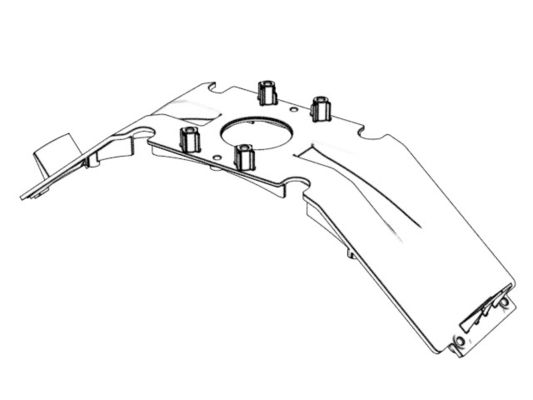

Display diagram
