Transparent VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300*300*306mm | IMM Tonnage | 80（T） |
|---|---|---|---|
| Mold Weight | 166（kg） | Standard | LKM |
| Injection Type | Cold Runner | Runner Type | Cold Runner |
| Steel Of Cavity | Harden (1*2/S136) | Steel Of Core | Harden (1*2/S136) |
| Type | Three-plates Mold | Tool Life | 500k Shots |
| Part Weight | 1.5g | ||
| High Light | VR Shell Ring ABS Injection Molding,ABS Injection Molding 500k Shots,LKM Multi Shot Injection Molding |
||
Product Description

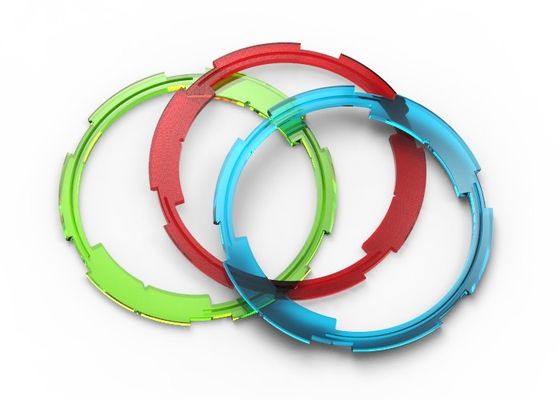

Transparent VR Rear Shell Ring (1*2)
No.22731
| Standard mold base P/N: FCI2530.608080 | ||
| Length | Standard: LKM | |
| 300 | ||
| Width | Three-plates mold | |
| 300 | ||
| Height | Cold runner | |
| 306 | ||
|
The mold is designed with side gate, the pin point gate turns to the side gate. It is flexible in position, and has uniform feeding |
||

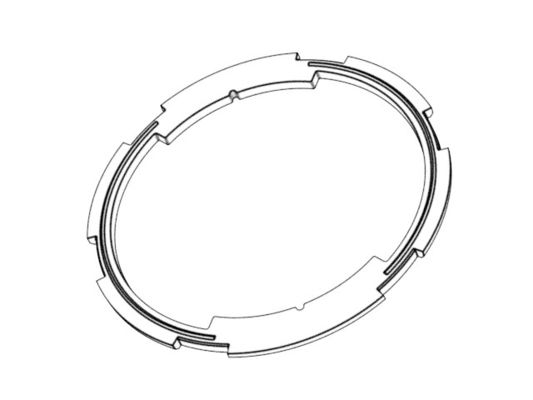

| [Mold weight]: 166kg [Tool life]: 500k shots [Part material]: PC+ABS [Part weight]: 1.5g [Part size]: 49.16 X49.16 X2.0mm |
|||||
| ☆ Surface finish | ① A surface with MT11010 etch | ||||
| ② Partial surfaces EDM with VDI18# (Makino) | |||||
| ☆ Steel of cavity and core | Harden (1*2/S136) | ||||

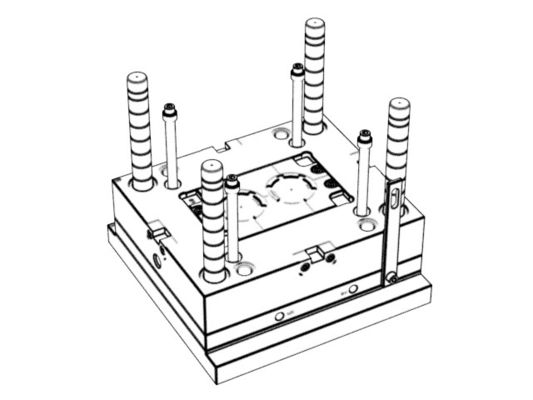

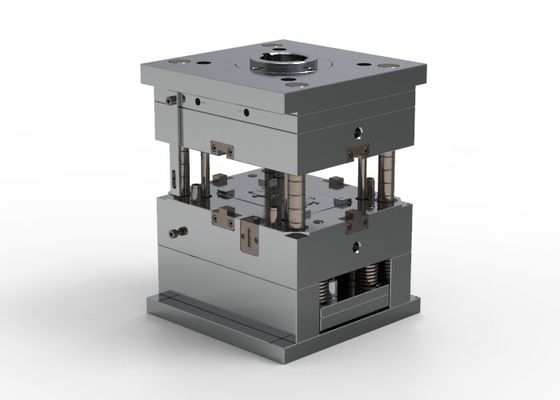

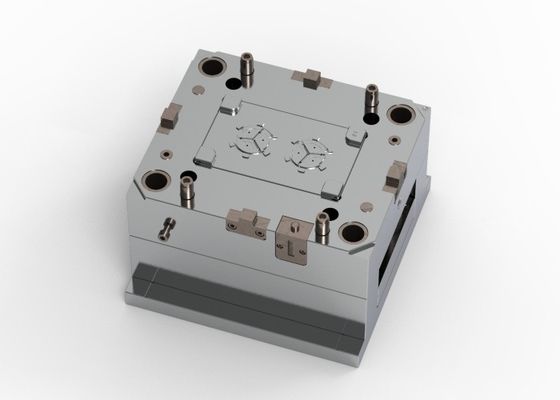

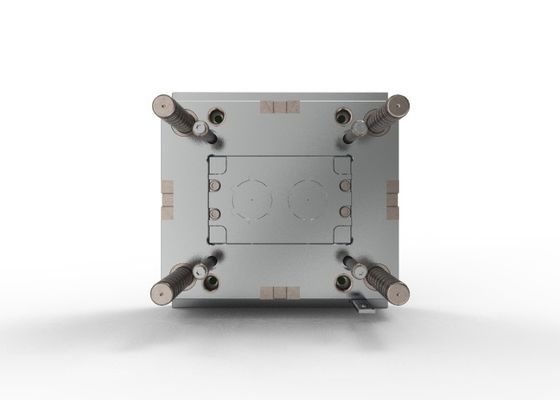

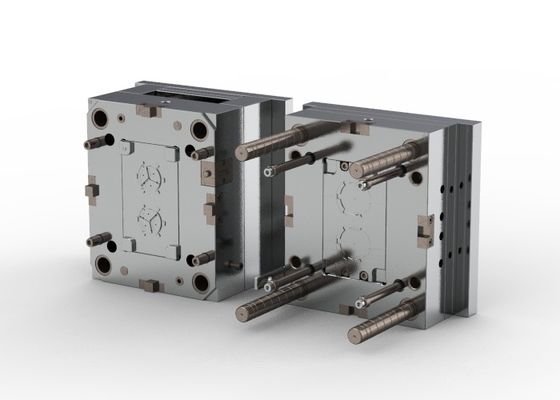

Display diagram
