OEM / ODM ： Insert Injection Molding & Clamshell Phone Back Cover (1*1) No.21870-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | AD | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 418kg | Tool Life | 500K Shots |
| Gate | Pin Point Gate | The Pin Point Gate Turns To The Side Gate | Type | Three-plates Mold |
| Mold Base P/N | DDI3540 70100100 | Slide | 7 |
| Lifter | 2 | Standard | LKM |
| Part Material | PC + 10% GF | ||
| High Light | Clamshell Phone Cover Injection Molding,110T Three Plates Mold |
||
Product Description
Clamshell Phone Back Cover (1*1)
No.21870-B
| Our 400mm x 400mm x 426mm injection mold, with part number DDI3540 70100100, is designed according to LKM standards to meet your precision manufacturing needs.The pin point gate can be converted to a side gate for flexibility in production and customization. As a three-plate mold with 7 slides and 2 lifters, it ensures smooth operation and precise molding of complex designs.Weighing 418kg, the mold is robust and durable with a tool life of 500,000 shots. It is compatible with 110T injection molding machines, suitable for various production requirements. |
The mold features:
① Pin point gate convertible to side gate
② Three-plate structure
③ 7 slides and 2 lifters
④ 418kg weight
⑤ 500,000 shot tool life
⑥ Compatible with 110T injection molding machines

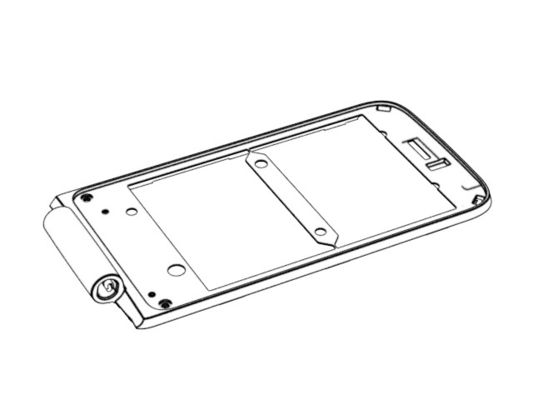

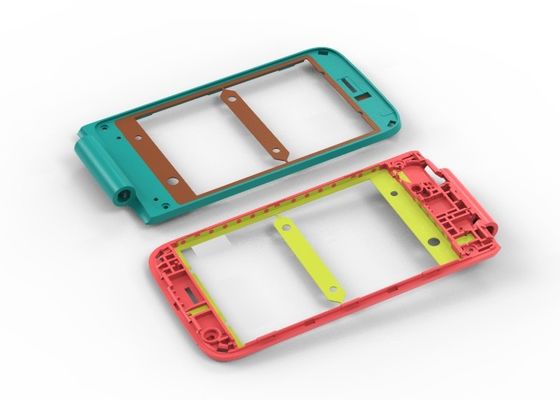

| The injection molded part is made of polycarbonide (PC) reinforced with 10% glass fiber. This composite material provides excellent impact performance, good toughness, excellent heat resistance to reduce thermal deformation, less surface fiber marks, uniform distribution of glass fibers, good paintability, and a low defective rate of painting. The part weighs 4.8 grams and measures 55.51 x 11.20 x 107.96 millimeters. |
| Surface finish: A surface EDM with VDI27# to improve the roughness, and the molded part has a smoother surface |
|||||
|
Steel of cavity & core: |
Harden with S136, with good comprehensive mechanical property, high polishing performance, high hardness, anti-wearing, anti-corrosion. |
||||
| Harden (1*2/S136) | |||||
Injection/runner type: Cold runner

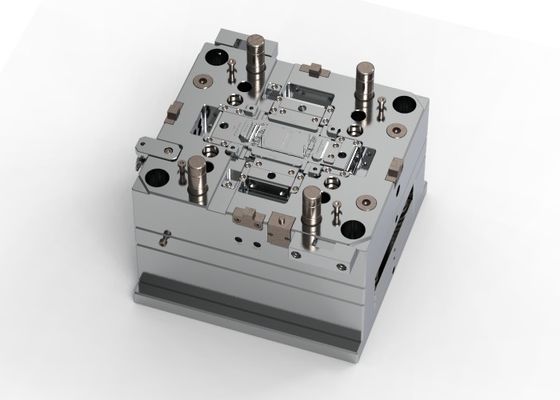

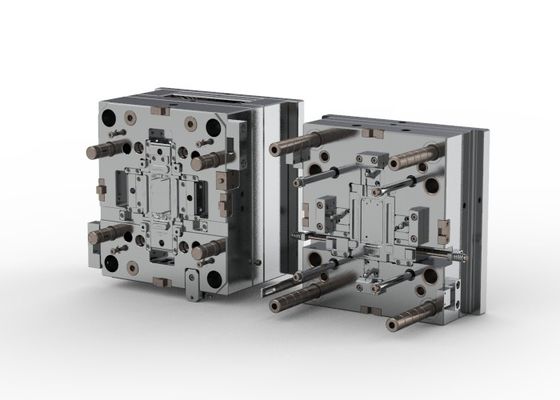

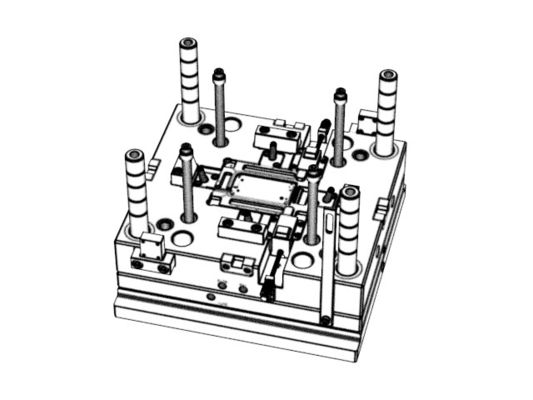

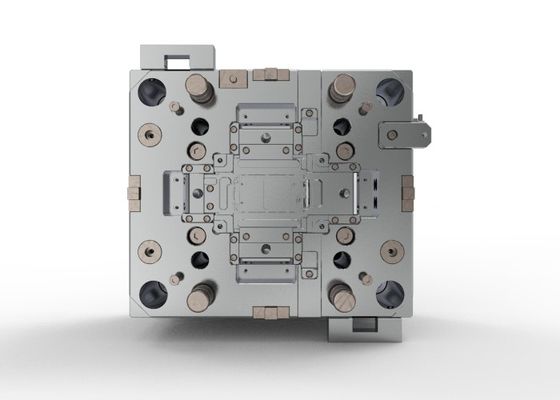

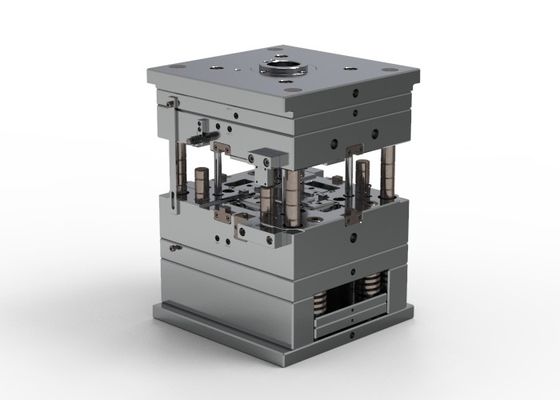

Display diagram
