OEM / ODM ： Insert Injection Molding & Transparent Clamshell Phone Back Cover (1*1) No.21870-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.00 X 400.00 X 426.00 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 418kg | Mold Base P/N | DDI3540 70100100 |
| Standard | LKM | Type | Three-plates Mold |
| Part Material | PC+10%GF | Slide/Lifter | 7/2 |
| Injection/runner Type | Cold Runner | Steel Of Cavity & Core | Harden (1*2/S136) |
| High Light | Clamshell Phone Cover Plates Mold,Phone Cover Insert Injection Molding |
||
Product Description

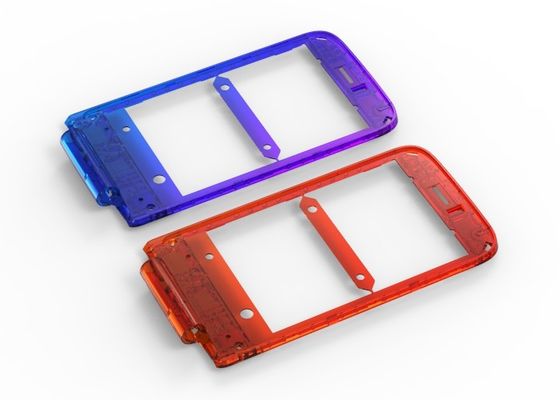

Transparent Clamshell
Phone Back Cover (1*1)
No.21870-B

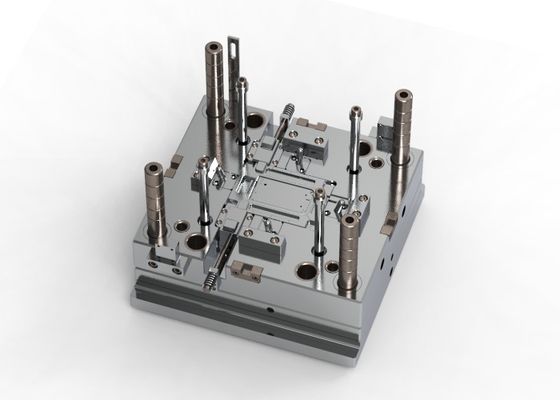

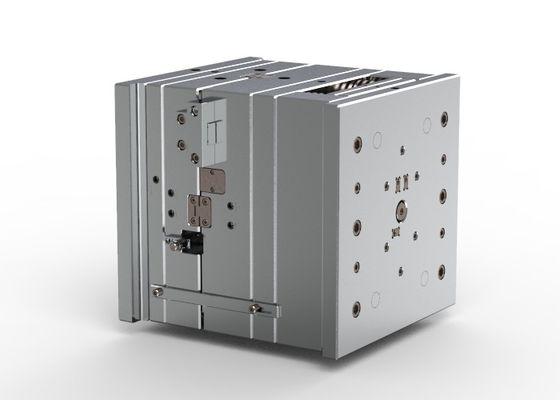

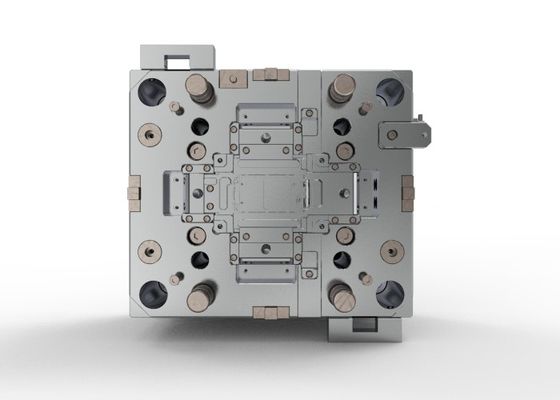

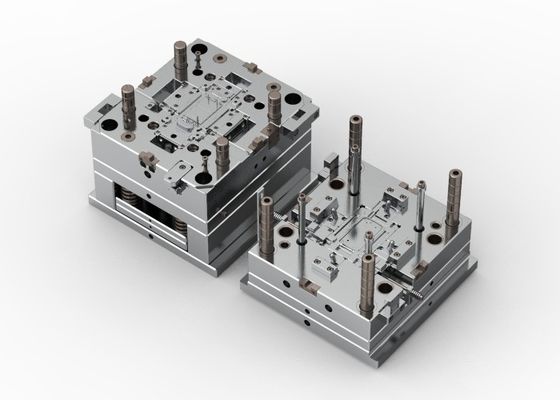

| The mold measures 400 x 400 x 426 millimeters with a base part number of DDI3540 70100100 and was manufactured to LKM standards. It is a three-plate mold with 7 slides and 2 lifters. The mold weighs 418 kilograms and uses a pinpoint gate that turns into a side gate filling system. The sprue bushing is located in the center of the mold base, giving the mold a more flexible structure. The mold surface was finished with EDM to a VDI27# roughness to make it smooth without pits, reducing surface friction and allowing the part to be molded with a smoother surface that is less likely to stick. The mold is rated for 500,000 shots and designed for use in a 110-ton injection molding machine to produce the injection molded part made of polycarbonide (PC) reinforced with 10% glass fiber, weighing 4.8 grams and measuring 55.51 x 11.20 x 107.96 millimeters. |
| Injection/runner type: Cold runner | |||||
| Steel of cavity & core | Harden (1*2/S136) | ||||
|
Harden with S136, with good comprehensive mechanical property, high polishing performance, high hardness, anti-wearing, anti-corrosion. |
|||||

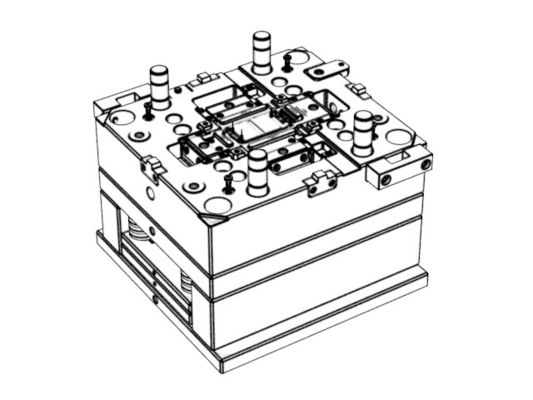

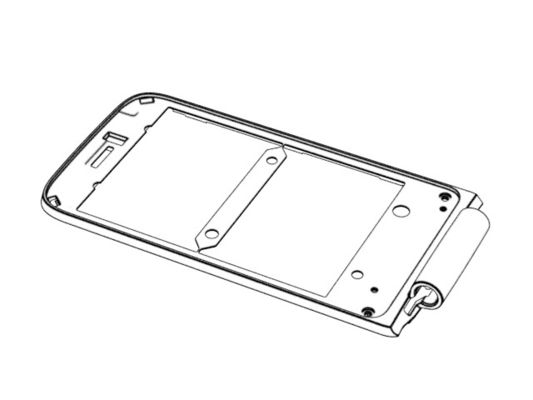

Display diagram
