OEM / ODM ： Insert Injection Molding & Middle Frame (1*1) No.22448-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Phone Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | AD | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 470kg | Part Material | TPE |
| Part Weight | 10g | Surface Finish | Polished To SPI-A1 |
| Gate | Side Gate | Standard | LKM |
| Mold Base | Custom Mold Base | ||
| High Light | LKM Three Plates Mold,Middle Frame Three Plates Mold,Middle Frame Insert Injection Molding |
||
Product Description
Middle frame (1*1)
No.22448-B
|
This mold is designed with a reasonable structure, ensuring uniform pressure distribution and minimizing stress concentration. It is manufactured using clean steel and features a hardened cavity and core, resulting in high hardness and exceptional anti-wearing performance. With a tool life of 5-10 years or 50,000 shots, this mold is built to withstand extensive usage.
|
| The mold is built on a custom mold base and follows the three-plates mold type. It incorporates a side gate for injection, adhering to the LKM mold standard. With dimensions of 400 x 450 x 426mm and a net weight of 470kg, this mold is robust and reliable. The surface finish is polished to SPI-A1 standards, ensuring a smooth and high-quality appearance. It utilizes a cold runner injection/runner type and is designed with four slides (cylinders). The cavity and core hardness exceed 50HRC, guaranteeing durability and longevity. The injection part, made from TPE material, measures 150.4 x 78.5 x 11.8mm and weighs 10g. |

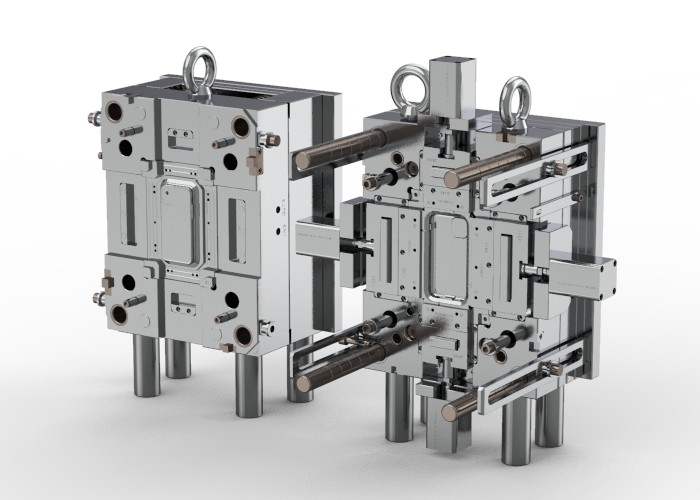

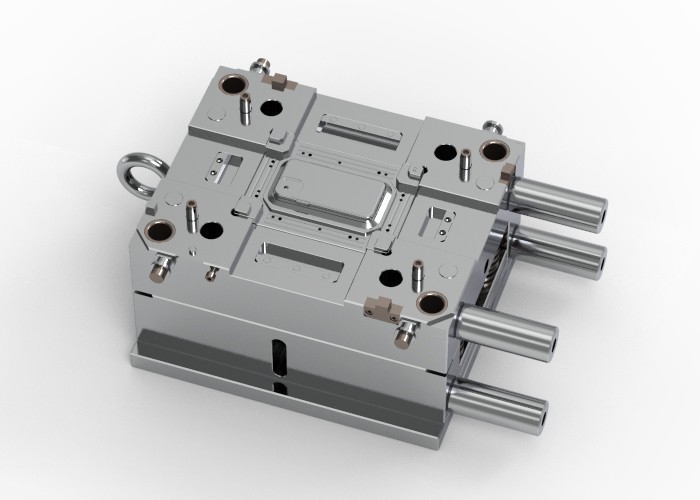

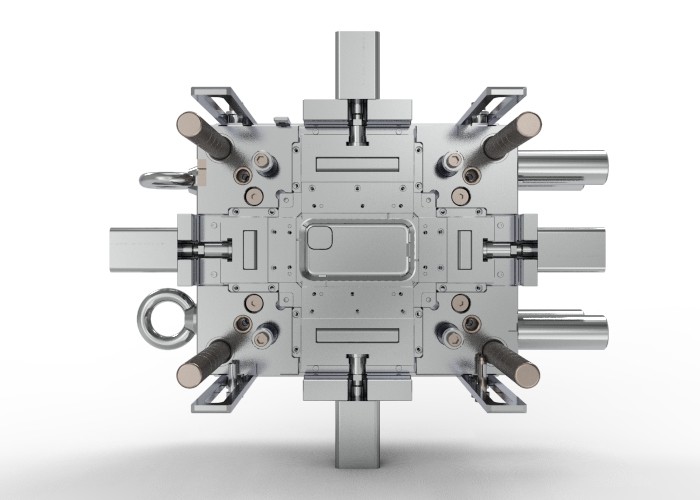

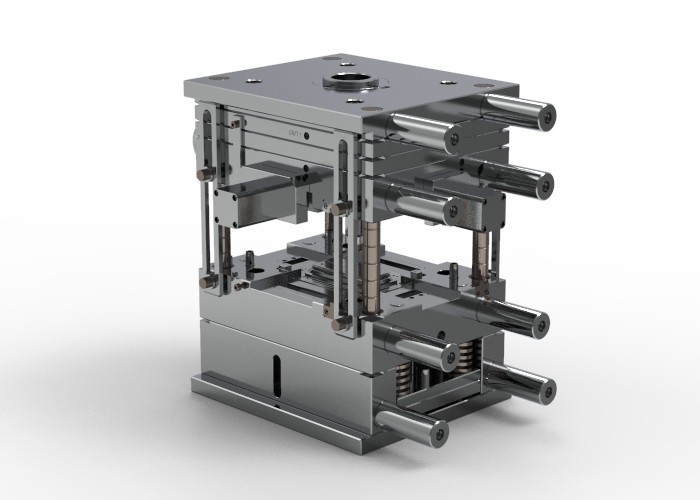

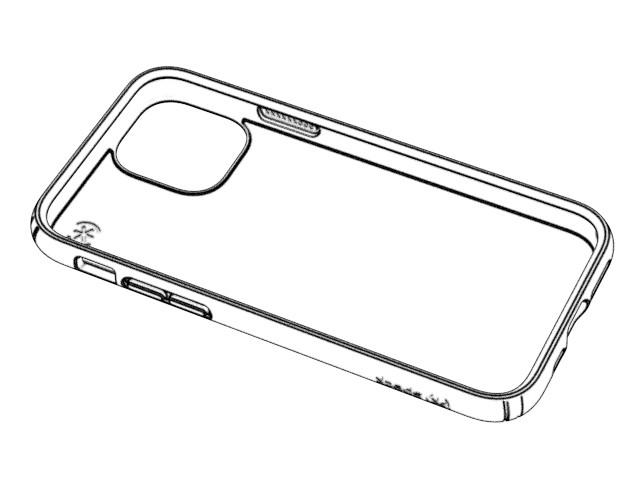

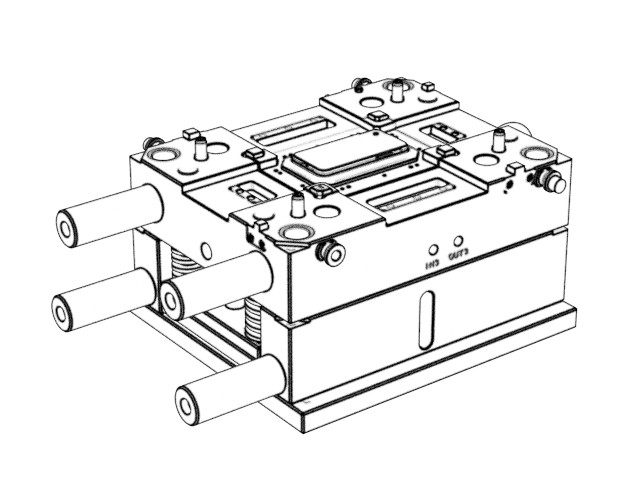

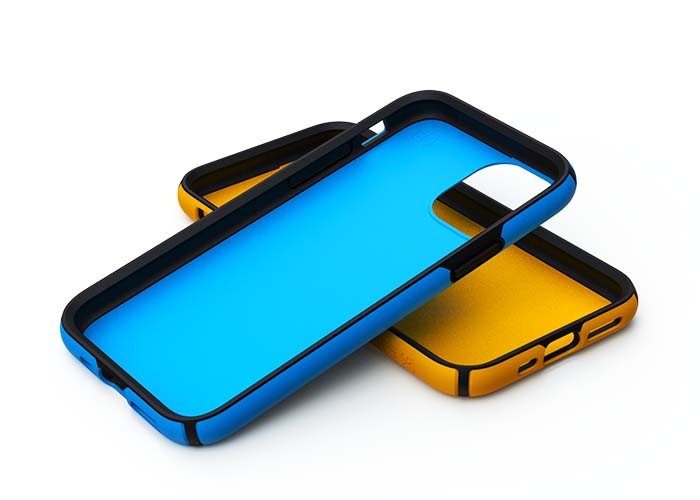

Display diagram
