POA Transparent Knob Tail Cap (1*8) No.22727-C ABS Injection Molding
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PC+ABS | Surface Finishing | Save Light 600# |
|---|---|---|---|
| Standard | LKM | Cavity/Core Material | 1*8/S136 |
| Injection | Cold Runner | IMM Tonnage | 80T |
| Mold Weight | 70kg | ||
| High Light | POA Transparent Knob Tail Cap,POA Knob Tail Cap,Knob Tail Cap Injection Molding |
||
Product Description

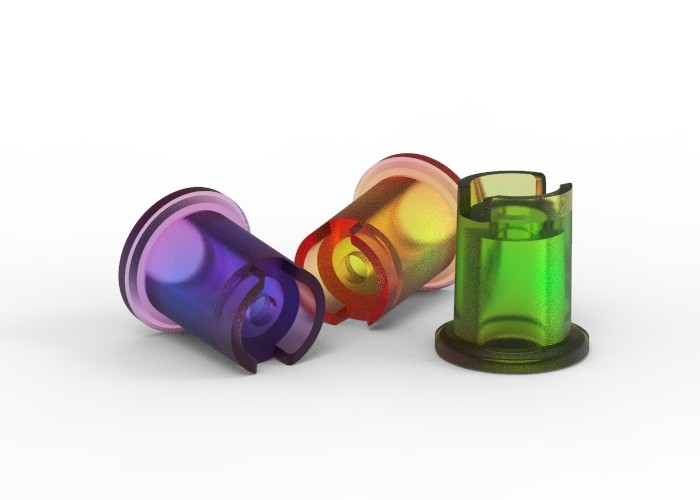

POA Transparent Knob Tail Cap (1*8)
No.22727-C

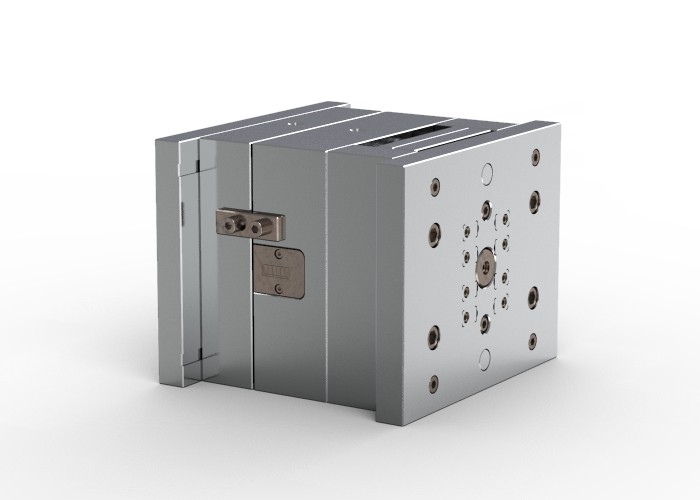

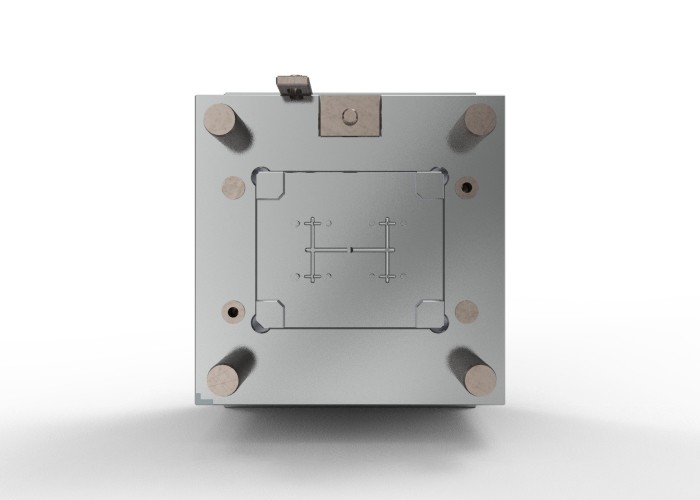

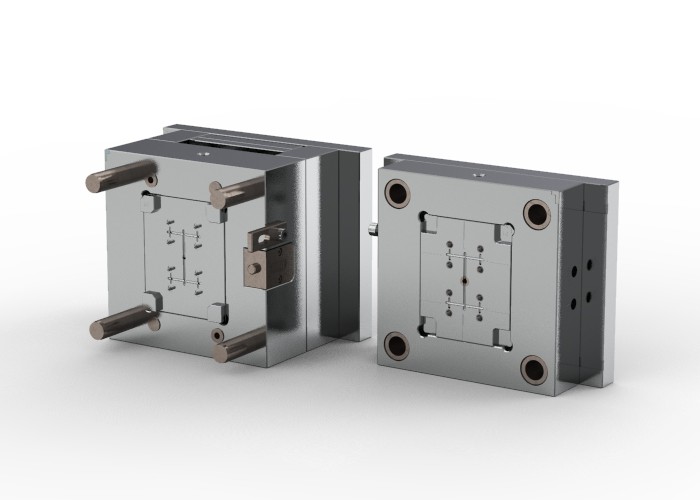

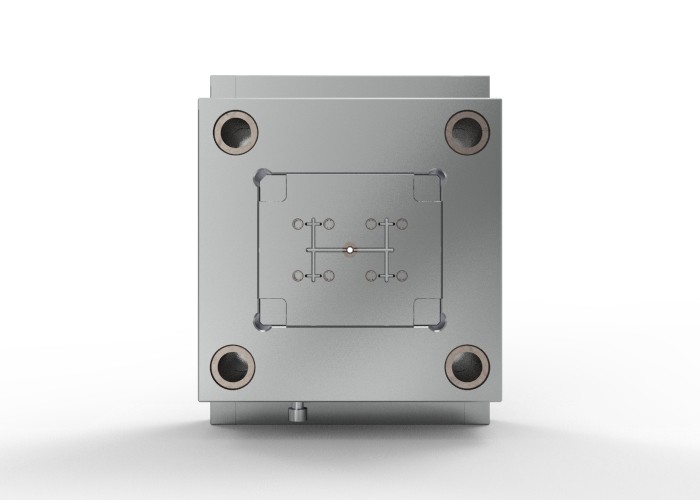

| This exquisitely designed precision two-plates mold, with dimensions of 250 X 200 X 231mm, exemplifies the seamless integration of aesthetics and functionality. Featuring a sub side gate for injection, it guarantees accurate and regulated flow. Built to endure 500k shots, this mold demonstrates remarkable durability. Its surface, meticulously polished to a level of smoothness akin to 600# sandpaper, radiates an air of elegance and refinement. |
| The LKM mold base, in conjunction with the cold runner system, ensures flawless operation with no excess material or spillage. The injection component, with dimensions of φ12 * 8.5mm and a weight of only 0.1g, is expertly crafted from the durable PC+ABS material. Weighing 70kg, the entire mold is intricately designed to perfectly complement an 80T machine, thereby creating a seamless and productive manufacturing process. |

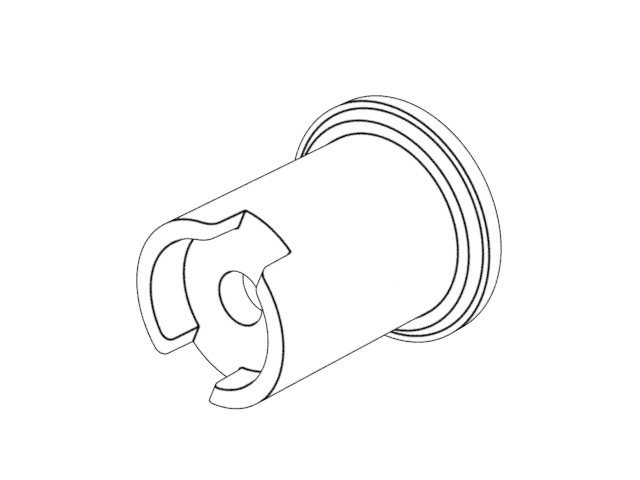

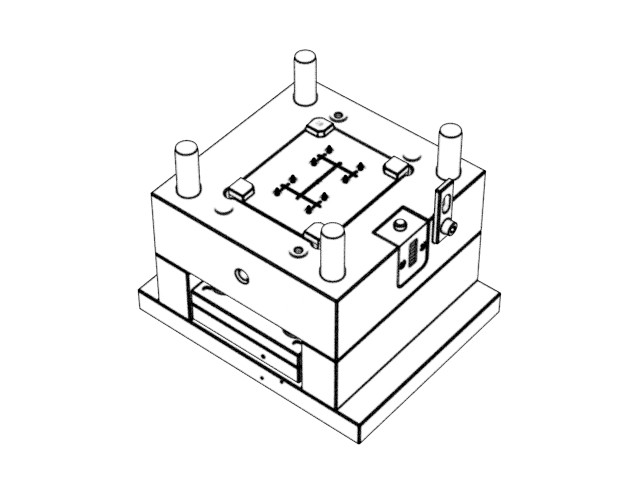

Display diagram
