OEM / ODM POA Rear Pad (1*1) No.22729-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 450 X 429 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 482kg | Mould Material | S136 |
| Material | PC+ABS | Mould Life | 500，000 Shots |
| Mould Base | LKM | Design Software | 3D:UG 4.0/2D:CAD |
| High Light | ODM POA Rear Pad,POA Rear Pad 1X1,ABS Injection Molding Rear Pad |
||
Product Description

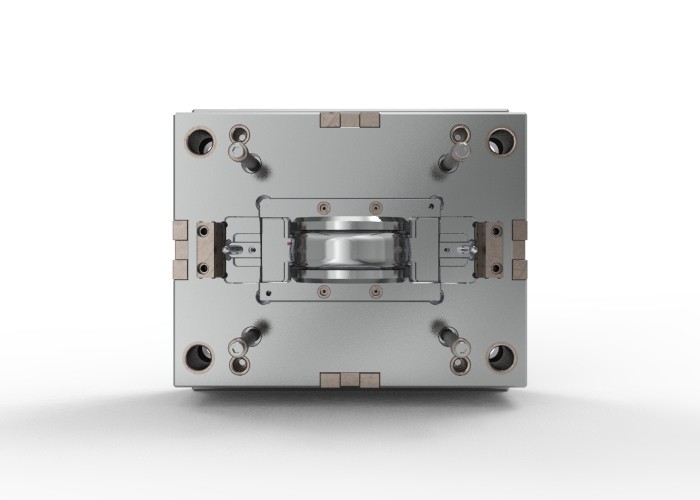

POA Rear Pad (1*1)
No.22729-C
|

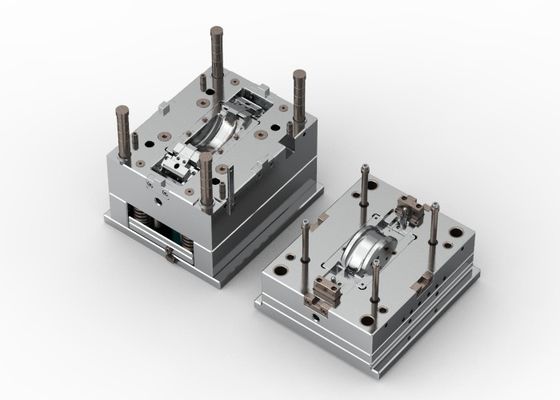

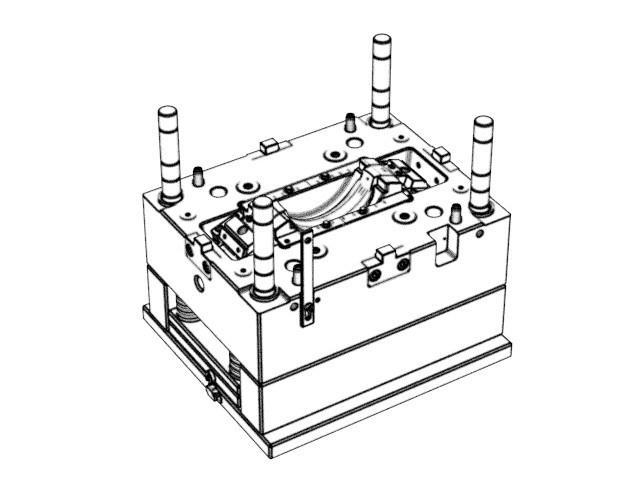

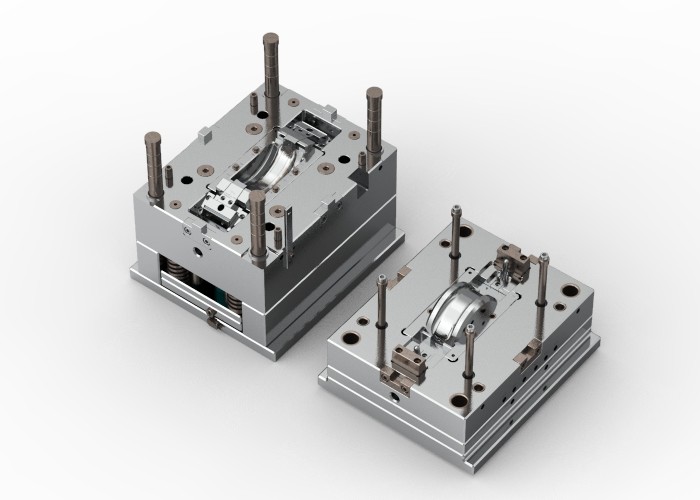

The LKM mold base is utilized to construct the mold part, which is specifically designed with a cold runner system. To enhance its surface, the mold has been etched with MT11010, and certain areas have undergone EDM (Electrical Discharge Machining) using VDI27# (Makino) and LKM standard. With dimensions of 400mm in length, 450mm in width, and 429mm in height, the mold incorporates a pin point gate for injection. It is anticipated that the mold will have a tool life of 500,000 shots. |

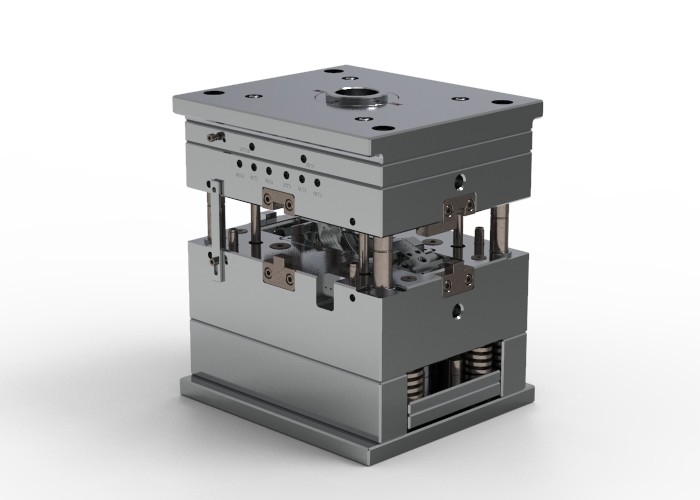

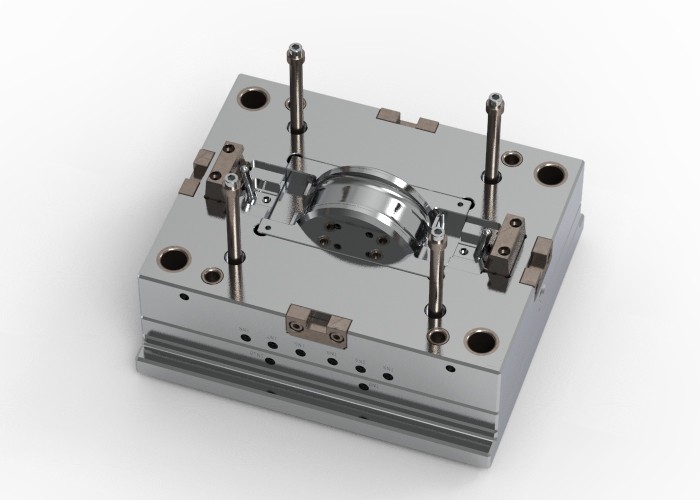

| The mold configuration comprises three plates, featuring a solid cavity and core crafted from S136 steel, along with a hardened surface boasting a hardness exceeding 600HV. Furthermore, the mold is equipped with 2 slides and 18 lifters. Weighing in at 482kg, this mold is compatible with an injection molding machine with a tonnage of 110T. |

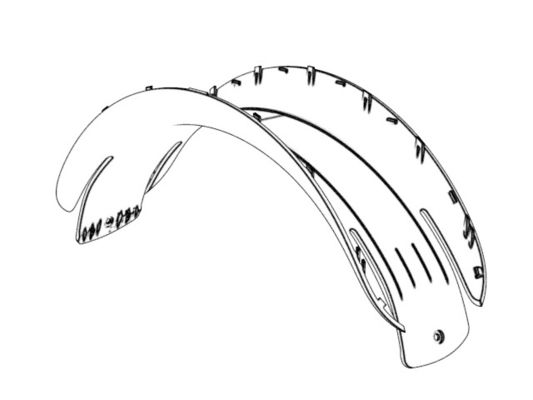

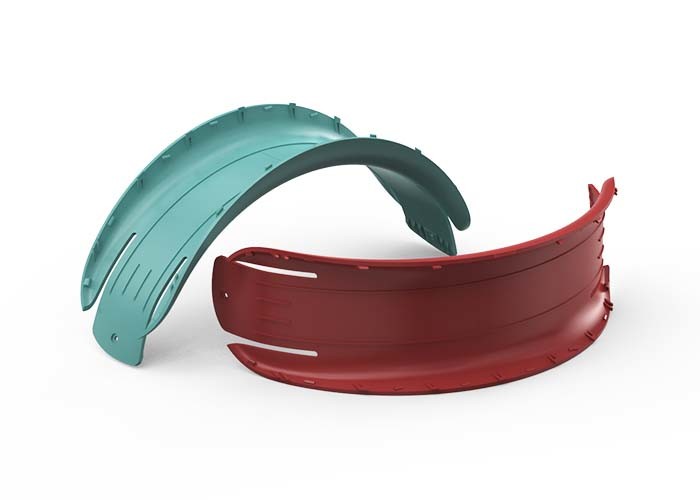

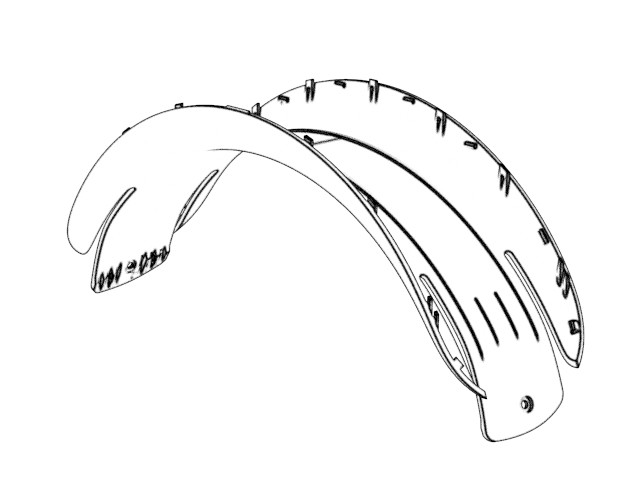

| The injection-molded components are manufactured using a PC+ABS composite material. The injection part has a net weight of 15g, with dimensions measuring 158.51mm x 47.92mm x 70.83mm. |
Display diagram
