OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 2 Slides And 18 Lifters | Size | 400 X 450 X 429 |
|---|---|---|---|
| IMM Tonnage | 110T | Mold Weight | 482kg |
| Gate | Pin Point Gate | Tool Life | 500k Shots |
| Net Weight | 482kg | Injection Type | Cold Runner |
| Runner Type | Cold Runner | ||
| High Light | ODM POA Transparent Rear Pad,POA Rear Pad,Rear Pad ABS Injection Molding |
||
Product Description
POA Transparent Rear Pad (1*1)
No.22729-C
|

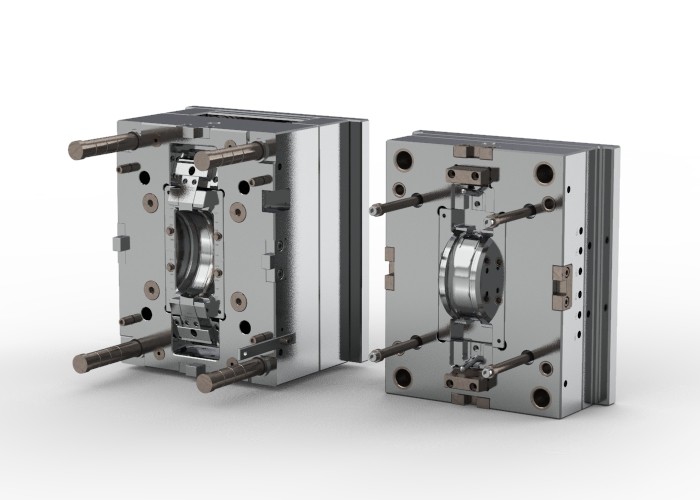

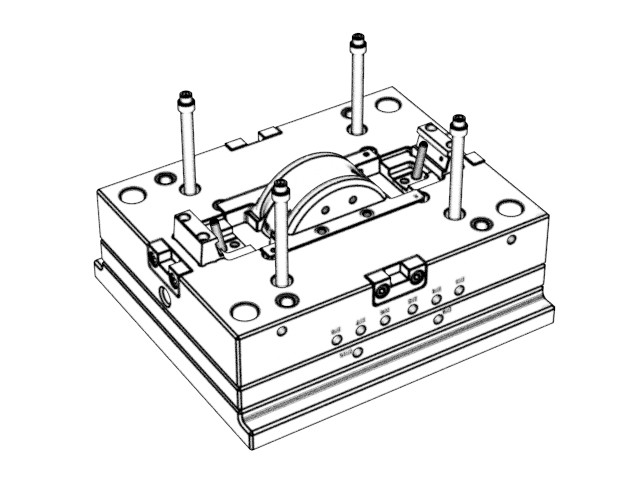

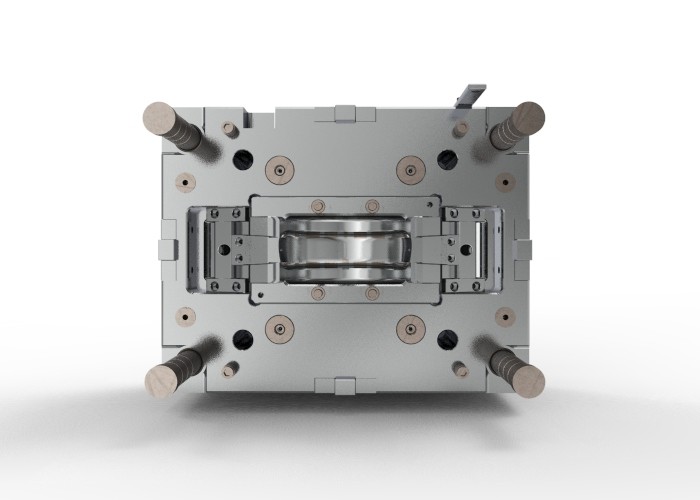

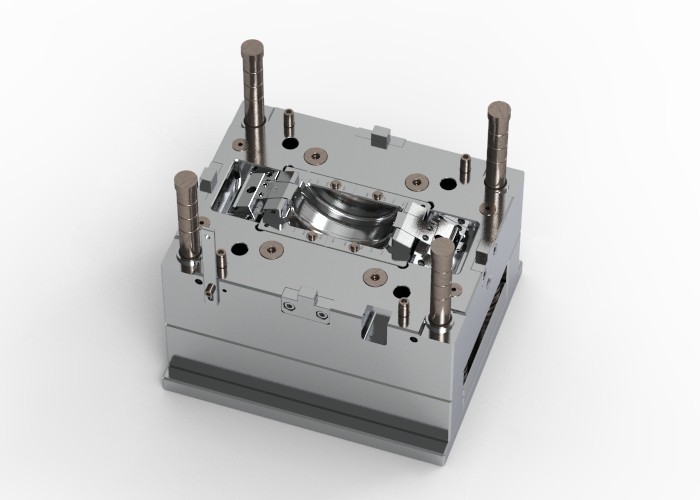

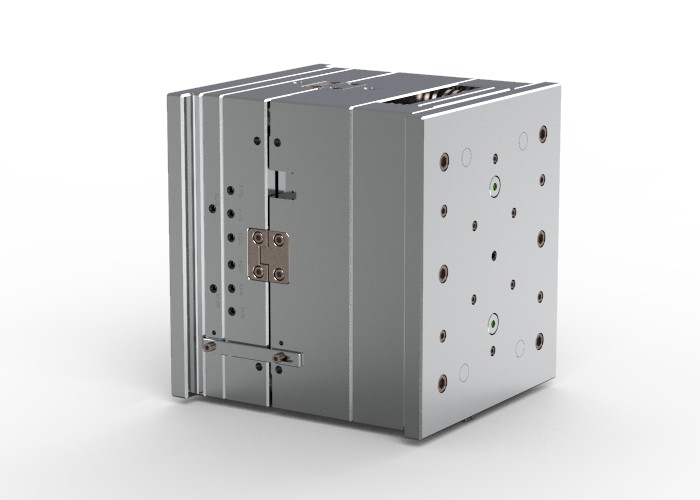

The mold section is produced with an LKM mold base and is structured with a cold runner system. It is etched with MT11010 on the surface, and specific regions are subjected to EDM (Electrical Discharge Machining) using VDI27# (Makino) and LKM standard. The mold measures 400mm in length, 450mm in width, and 429mm in height. A pin point gate is utilized for the mold gate. |
|
The mold is designed to withstand up to 500,000 shots during its tool life. It is constructed with a three-plates configuration, including a hardened cavity and core composed of S136 steel with a surface hardness exceeding 600HV. Additionally, it is equipped with 2 slides and 18 lifters. The total weight of the mold is 482kg, and it is compatible with an injection molding machine that has a tonnage of 110T. |

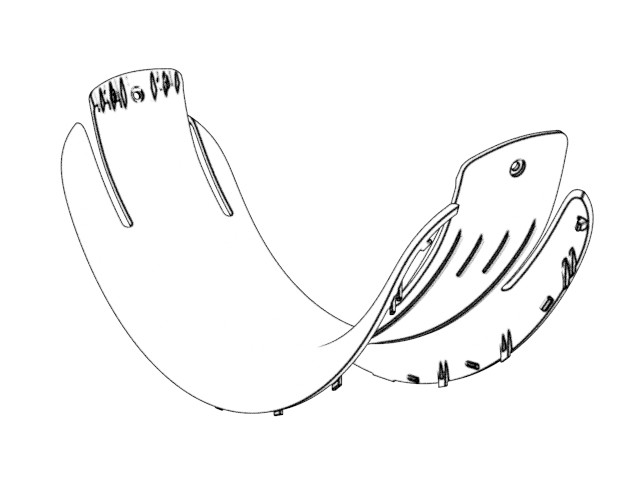

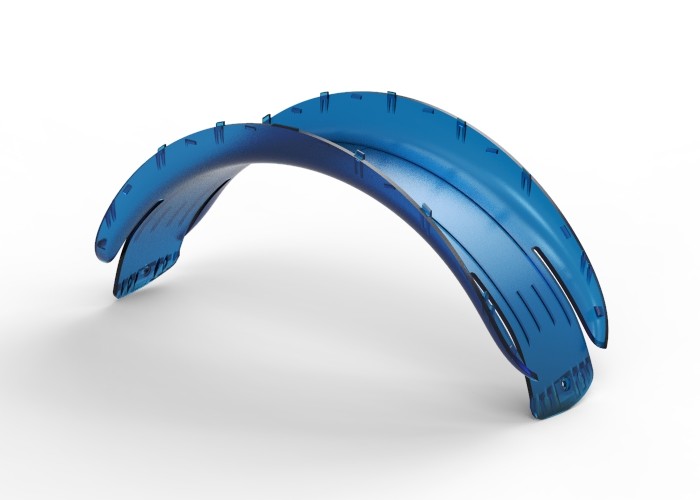

| The PC+ABS material is used to manufacture the injection molded components. The injection part weighs 15g and has dimensions of 158.51mm length, 47.92mm width, and 70.83mm height. |
Display diagram
