OEM / ODM ： POA Side Guide Bracket 1x2 No.22728-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450 X 450 X 416 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 536kg | Injection/runner Type | Cold Runner |
| Part Material | PC+ABS | Type | Three-plates Mold |
| Tool Life | 500,000 Shots | ||
| High Light | Cold Runner Side Guide Bracket,POA Side Guide Bracket 1x2,Three Plates POA Bracket Mold |
||
Product Description
POA Side Guide Bracket (1*2)
No.22728-C
|

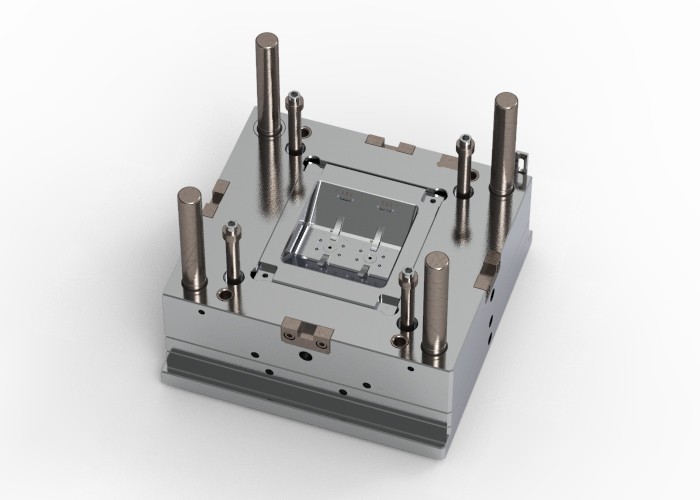

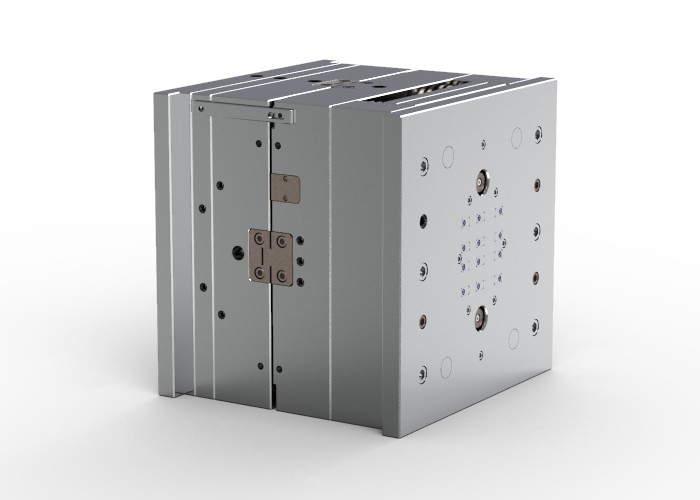

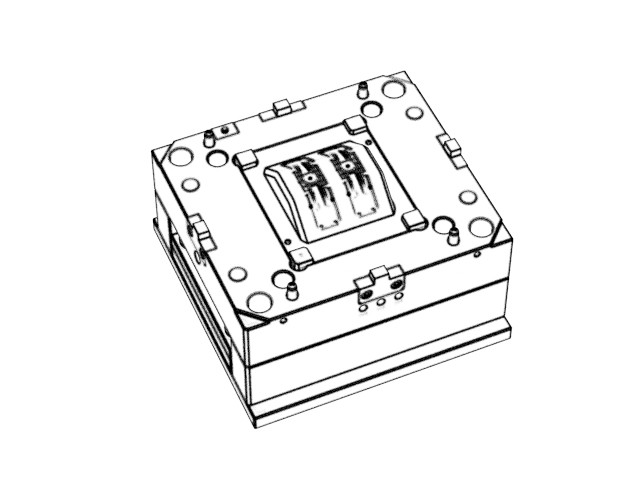

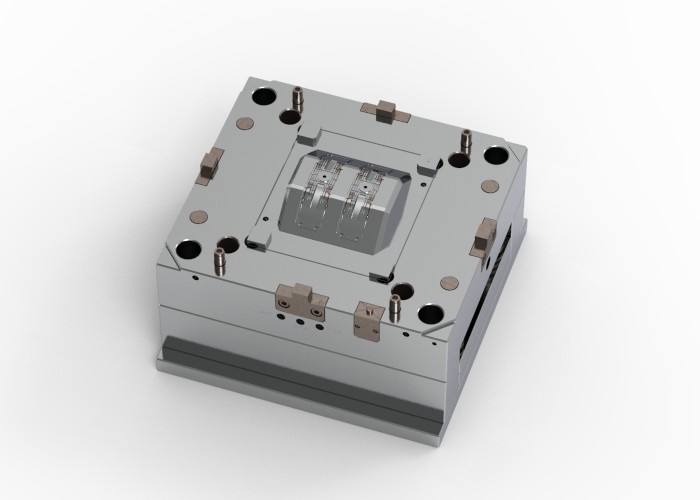

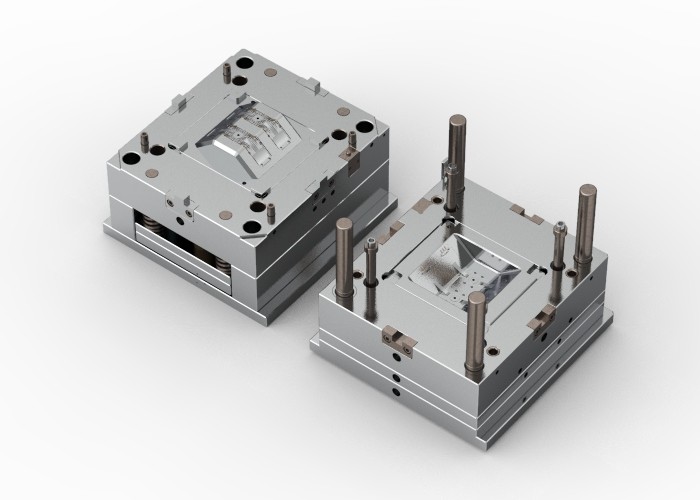

Mold Component: This mold component is a precise three-plates mold equipped with a pin point gate. It is constructed using an LKM mold base and has a remarkable tool life of 500,000 shots. The mold incorporates two slides and possesses dimensions of 450 x 450 x 416mm, weighing 482kg. To ensure long-lasting performance, both the cavity and core are hardened. The surface finish is impeccably smooth, devoid of any imperfections, and certain surfaces are treated with VDI18# (Makino) using EDM technology. It is compatible with an injection molding machine with a tonnage of 110T. |

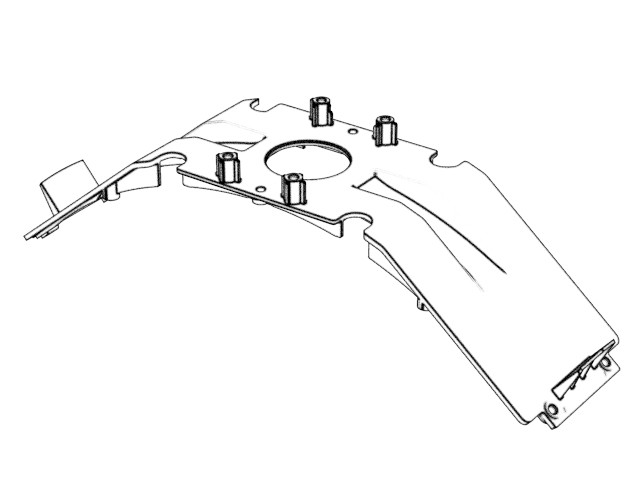

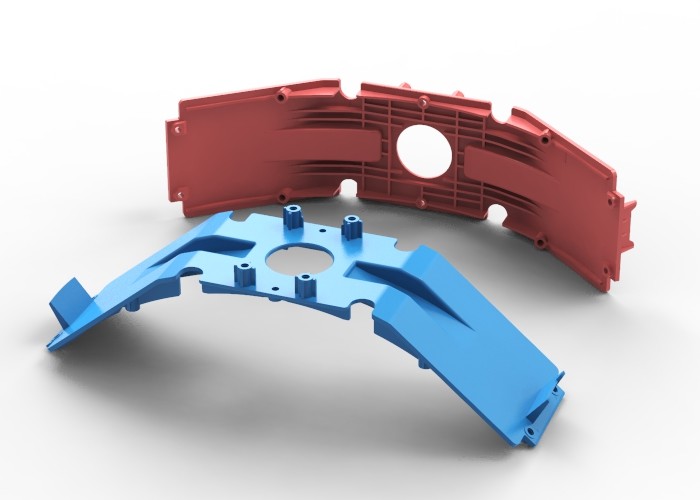

| The PC+ABS material blend used in injection molding produces parts that boast a unique balance of strength and impact resistance. Weighing 14.5g each, these parts measure 152.36 x 41.12 x 42.59mm. Our manufacturing process guarantees high precision and uniform quality, maintaining dimensional accuracy throughout production. |
Display diagram
