OEM / ODM ABS Injection Molding Transparent Front Housing (1*1) No.22724-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 500 X 511 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 611kg | Type | Three-plates Mold |
| Standard | LKM | Surface Finish | VDI27# (Makino)/VDI18# (Makino) |
| Design Software | 3D-UG 4.0/ 2D-CAD | ||
| High Light | ODM Transparent Front Housing,ABS Injection Molding Front Housing,Transparent Housing ABS Injection Molding |
||
Product Description
Transparent Front Housing (1*1)
No.22724-C

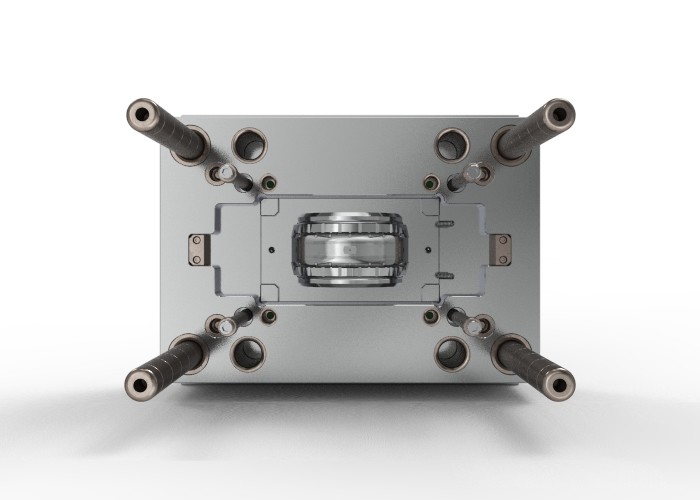

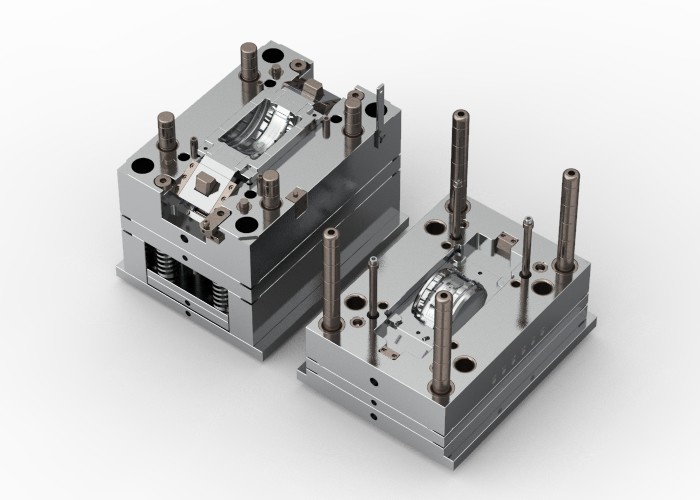

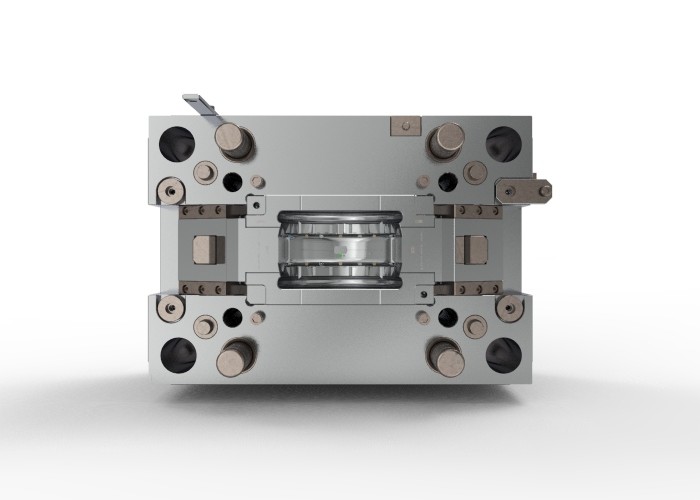

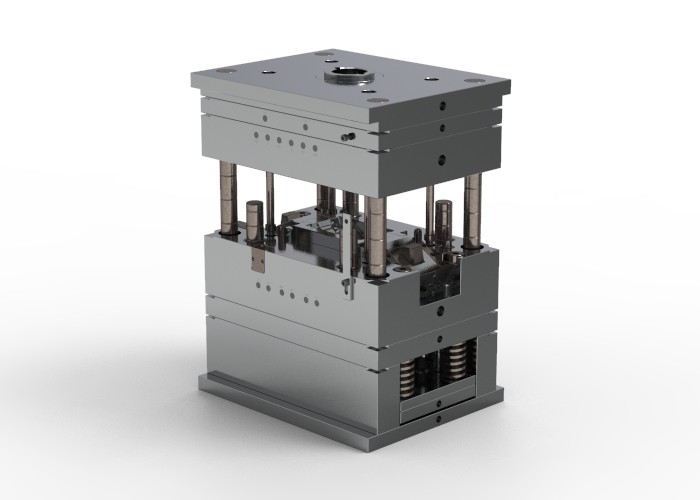

| Our carefully designed three-plate mold is a testament to precision engineering. Equipped with a pin-point gate and a cold runner system, this mold is tailored for accurate injection molding. Boasting a tool life of 500,000 shots, it is engineered to withstand long production runs without compromising on quality. |
| Our mold strictly adheres to the LKM mold standard, guaranteeing compatibility and dependability. The cavity and core are fabricated from hardened steel (1*1/S136), offering exceptional strength and resistance to wear. The surface finish is executed with utmost precision, with the inner surface treated using EDM VDI27# (Makino) and certain areas finished with EDM VDI18# (Makino), resulting in a flawless aesthetic appeal. |

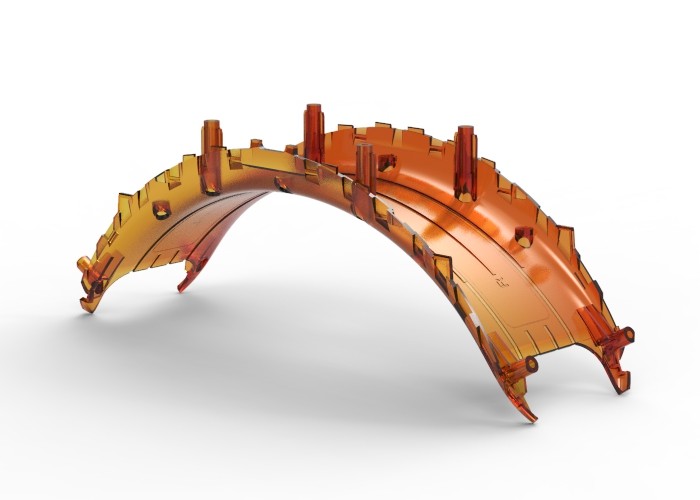

| This meticulously crafted mold measures 400 x 500 x 511mm and weighs 611kg. It is specifically designed to provide a flawless fit without any burrs. The mold is intended for use with an injection molding machine (IMM) that has a tonnage of 110T. The resulting part, made from PC+ABS material, weighs 20g and has dimensions of 154.34 x 45.23 x 58.10mm. Our exceptional mold offers a seamless blend of precision, durability, and aesthetic appeal. |

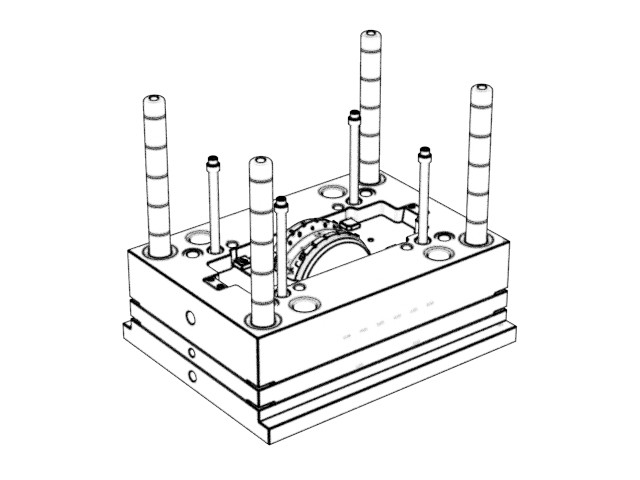

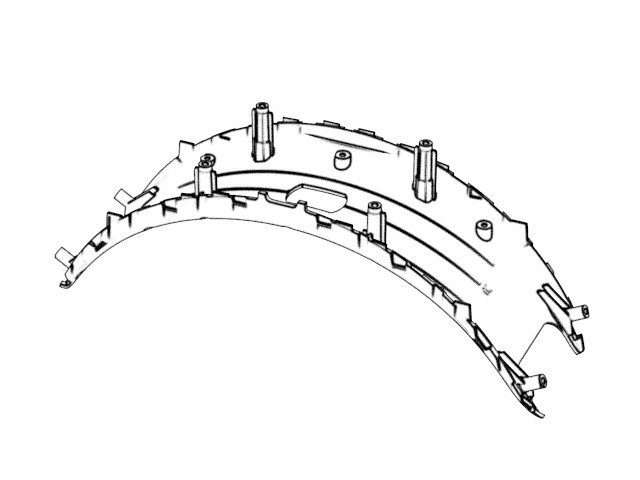

Display diagram
