OEM / ODM Injection Molding POA Transparent Adjusting Knob No.22726-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 300.000 X 271.000 | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 142kg | Material | PC+ABS |
| Mould Life | 500，000 Shots | Runner | Cold Runner |
| Design Software | 3D-UG 4.0/ 2D-CAD | Mold Life | ≥ 500k Shots |
| High Light | POA Transparent Adjusting Knob,Adjusting Knob Injection Molding,Transparent Knob Injection Molding |
||
Product Description
P0A Transparent Adjusting Knob
No.22726-C

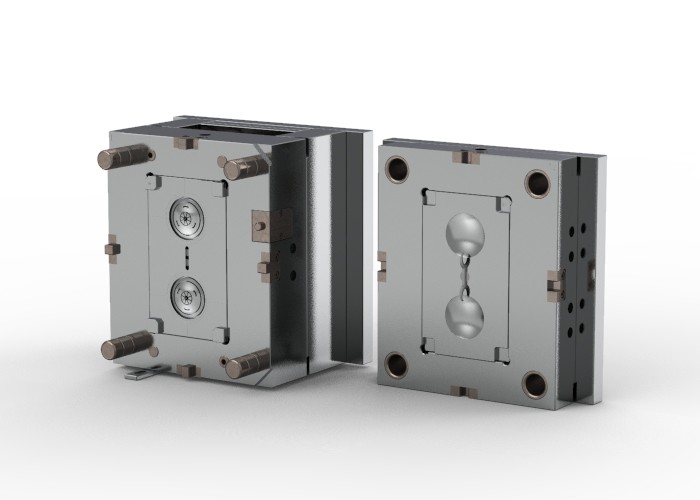

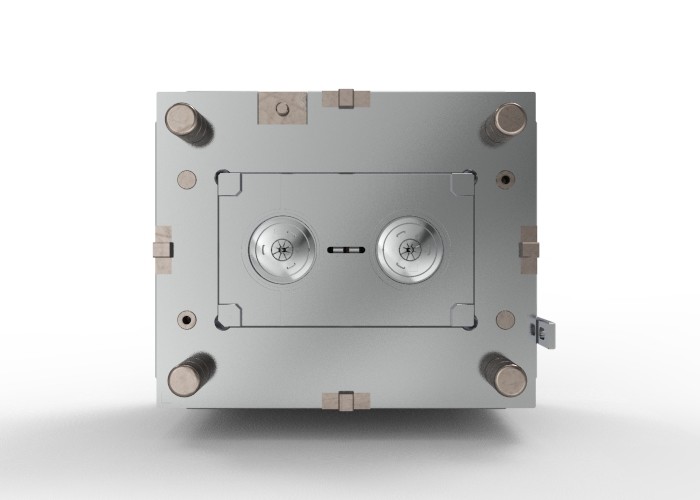

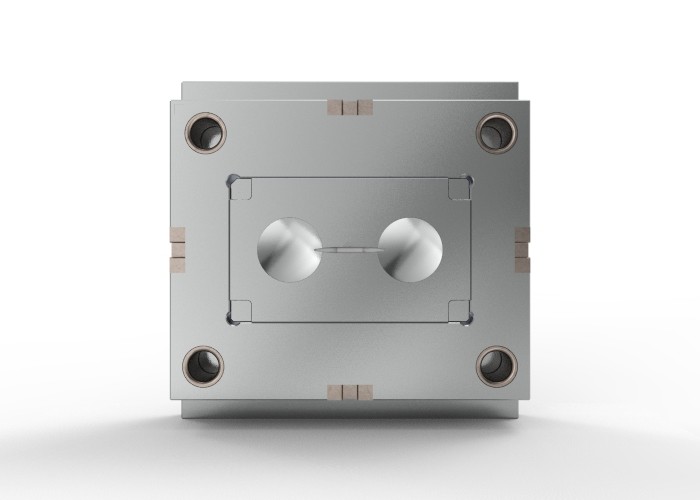

| Our professional mold is built using a top-notch LKM mold base. This mold consists of two plates, equipped with a precise cold runner and a cashew gate design. Each component is meticulously designed to ensure a smooth molding operation with minimal noise. The mold is finished with a blue-surface and MT11010 etch, adding to its aesthetic appeal. |
|

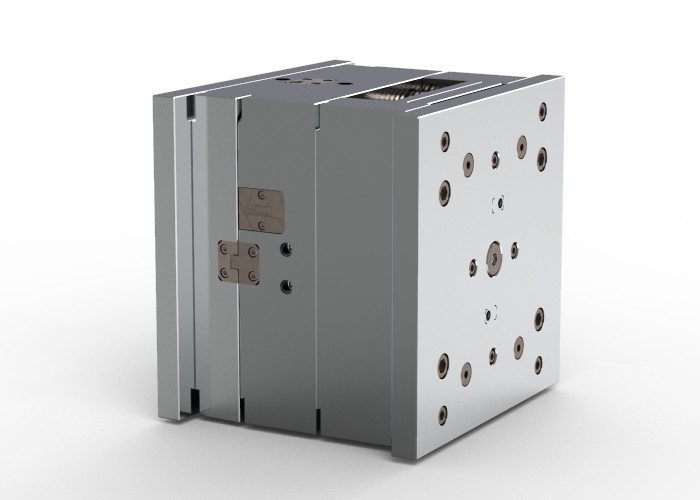

Our mold, with dimensions of 300.000 X 300.000 X 271.000mm, is well-suited for diverse applications. It weighs 142 kg and is compatible with an 80T injection molding machine (IMM). The material used for the injection part, PC+ABS, ensures exceptional strength and impact resistance. |

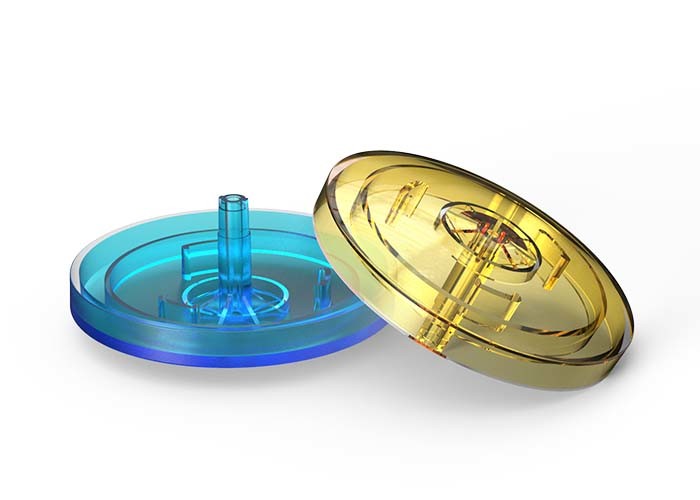

| Our mold creates a molded part that weighs around 7.5g and measures 53.97 X 53.98 X 24.86mm. It is engineered to provide accurate and reliable outcomes, adhering to the most stringent quality criteria. |

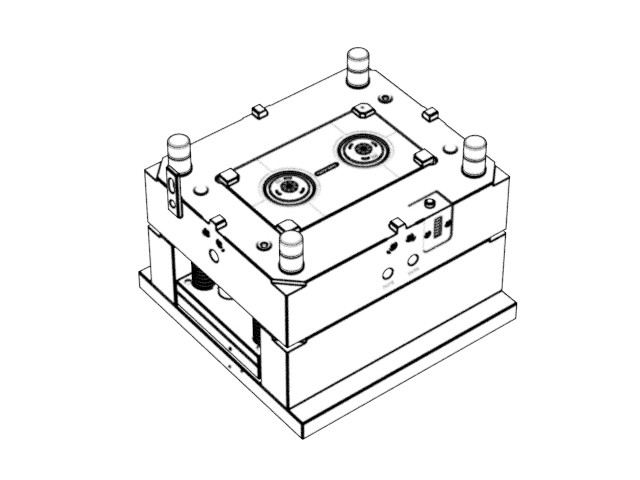

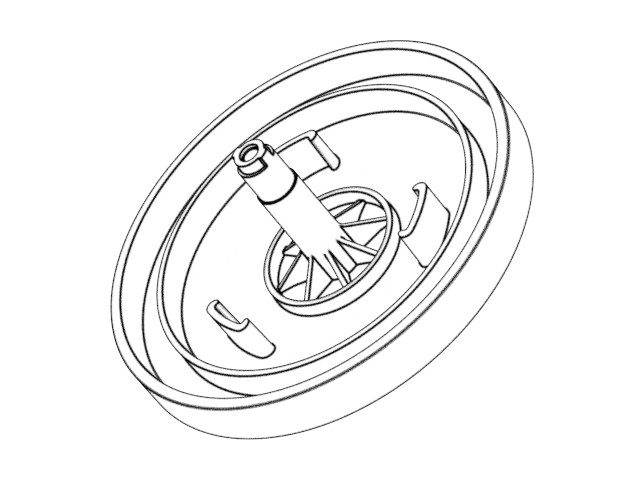

Display diagram
