OEM / ODM ABS Injection Molding VR Rear Shell Ring 1*2 No 22731-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300 X 300 X 306 | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 166kg | Product Material | PC+ABS |
| Mould Life | 500000 Shots | Runner | Cold Runner |
| Gate Type | Side Gate | Design Software | (3D)UG 4.0/ (2D）CAD |
| High Light | ABS Injection Molding VR Shell Ring,ABS Injection Molding Rear Shell Ring,1*2 VR Rear Shell Ring |
||
Product Description
VR Rear Shell Ring (1*2)
No.22731-C
|

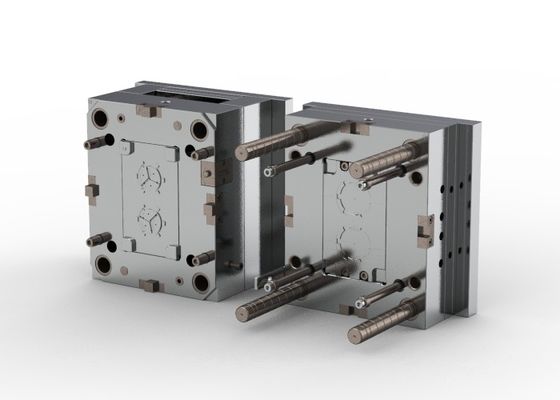

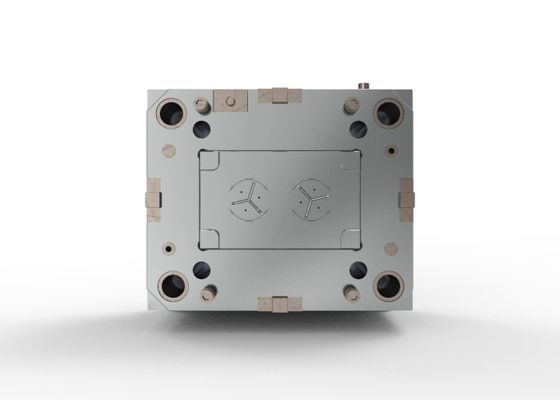

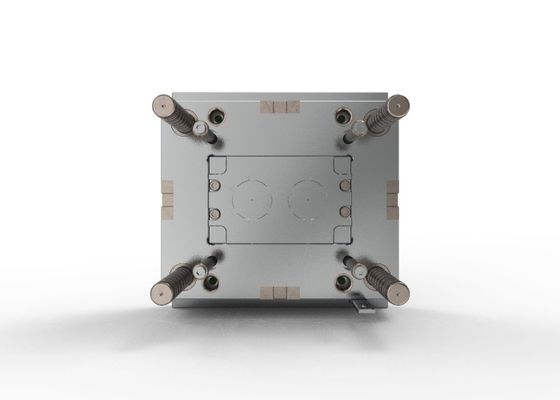

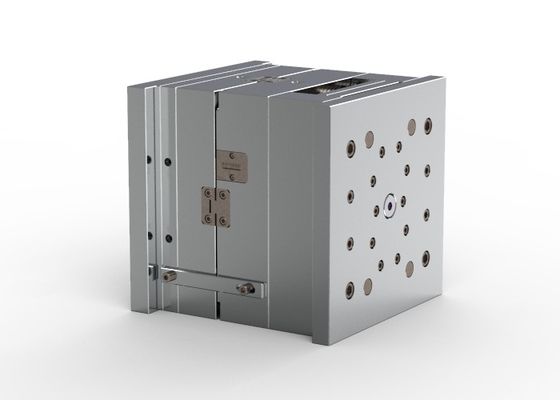

The mold is constructed using a standard mold base with the part number FCI2530.608080. Its dimensions are 300mm in length, 300mm in width, and 306mm in height. The mold weighs 166kg and has a tool life of 500,000 shots. This particular mold is a three-plate mold that incorporates a cold runner system and a side gate design, which replaces the previous pin point gate. The design of this mold allows for easy demolding without requiring any post-processing. |
| The mold's cavity and core are constructed from hardened steel (1*2/S136). To meet various specifications, the mold surface can be treated with either MT11010 etching or VDI18# EDM (Makino). |

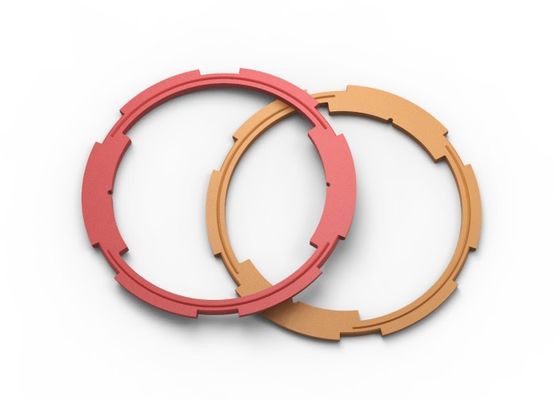

| The injection component is composed of PC+ABS material, with a weight of 1.5g and dimensions of 49.16mm x 49.16mm x 2.0mm. |

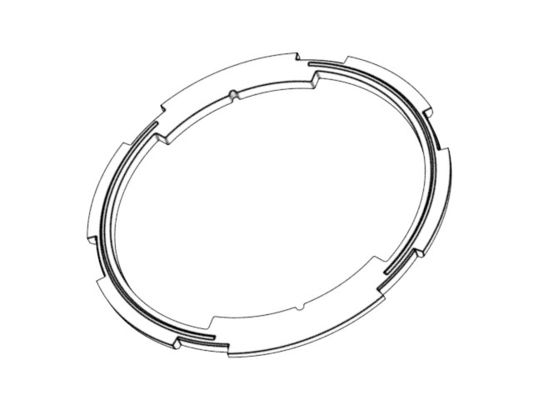

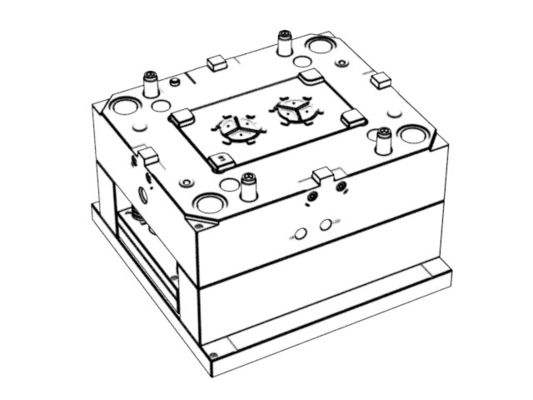

Display diagram
