OEM / ODM Injection Molding Transparent VR Rear Shell Ring 1*2 No 22731-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300*300*306mm | IMM Tonnage | 80（T） |
|---|---|---|---|
| Mold Weight | 166（kg） | Standard | LKM |
| Injection Type | Cold Runner | Runner Type | Cold Runner |
| Steel Of Cavity | Harden (1*2/S136) | Steel Of Core | Harden (1*2/S136) |
| Type | Three-plates Mold | Tool Life | 500k Shots |
| Part Weight | 1.5g | ||
| High Light | 1*2 VR Rear Shell Ring,VR Shell Ring Injection Molding,Transparent VR Ring Injection Molding |
||
Product Description
Transparent VR Rear Shell Ring (1*2)
No.22731-C

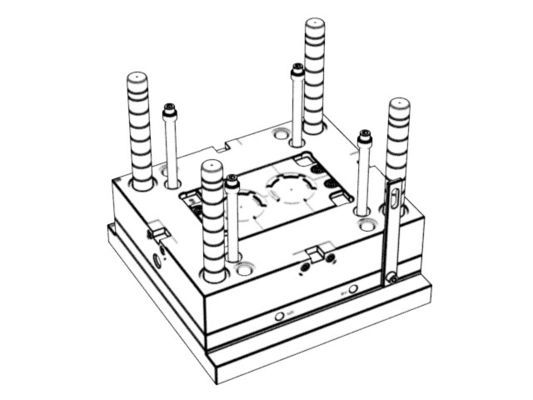

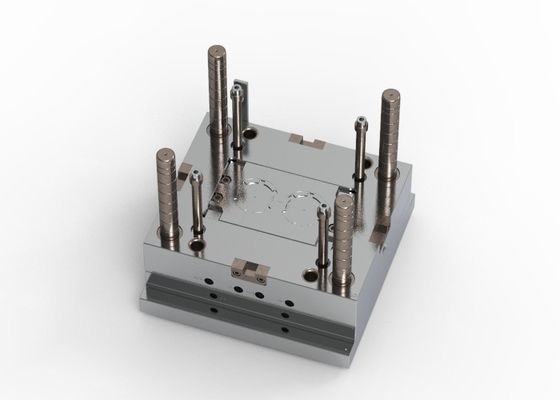

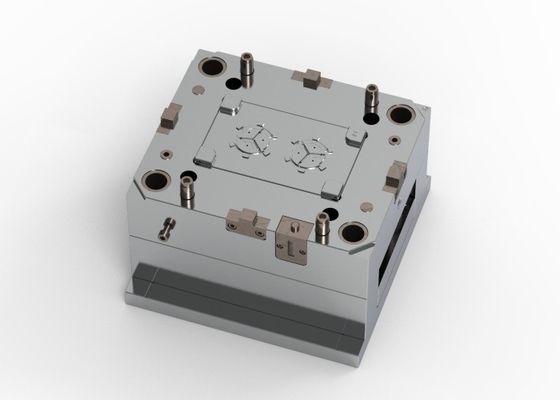

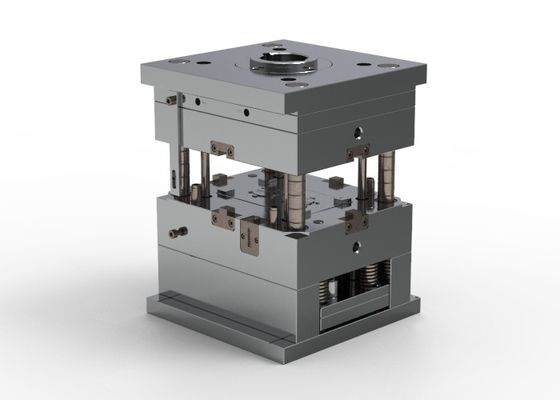

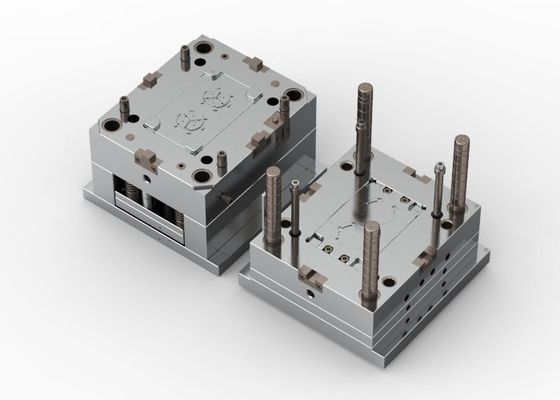

| The mold base utilized is the standard mold base identified by part number FCI2530.608080, featuring dimensions of 300mm in length, 300mm in width, and 306mm in height. Weighing 166kg, this mold boasts a tool life of 500,000 shots. This particular mold is a three-plates mold that eliminates the need for post-processing and enables automatic demolding. It is designed with a cold runner injection/runner type and a side gate, with the pin point gate converted to the side gate. |
|

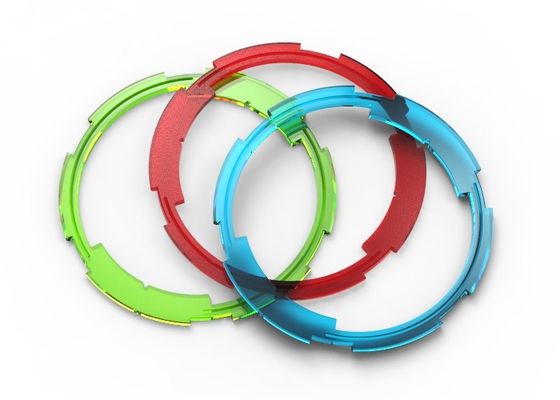

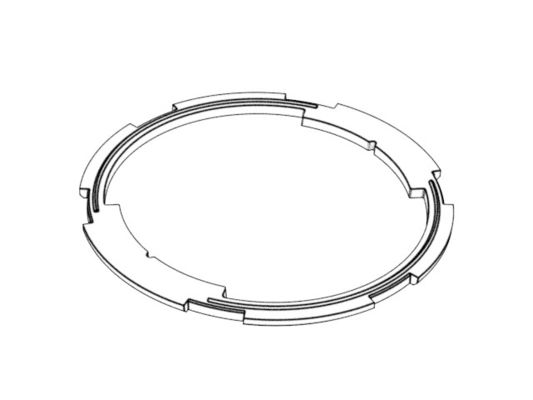

The mold's cavity and core are constructed from hardened steel (1*2/S136). There are two choices for the mold's surface finish: 1) A surface treated with MT11010 etch, and 2) Other surfaces treated with EDM using VDI18# (Makino). As for the injection part, PC+ABS is the material utilized. It weighs 1.5g and has dimensions of 49.16mm x 49.16mm x 2.0mm. |
Display diagram
