Front Housing (1*2) / hot runner turns to cold runner / Three-plates mold No.21774
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Slides And 6 Lifters | Name | AD |
|---|---|---|---|
| IMM Tonnage | 180T | Mold Weight | 550kg |
| Mold Base P/N | FCI4060.6090100. | Part Material | PC+10%GF |
| Part Weight | 6g | Design Software | 3D:UG 4.0/2D:CAD |
| High Light | 4 Slides Insert Injection Molding,6 Lifters Insert Injection Molding,180T metal insert moulding |
||
Product Description

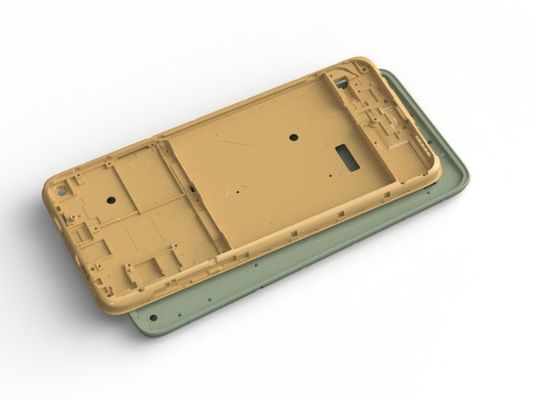

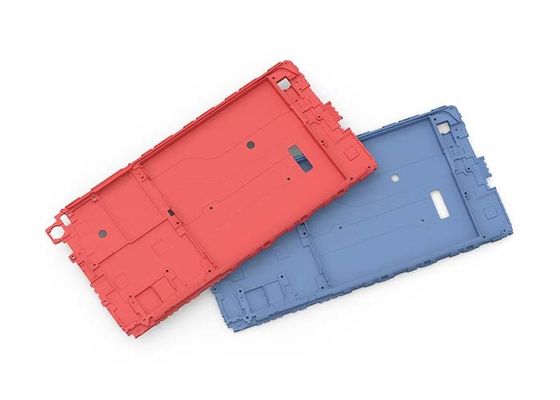

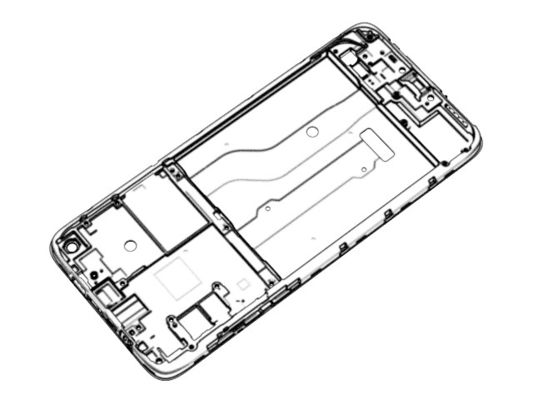

Front Housing (1*2)
No.21774
| Length | 450 | ① Standard mold base P/N FCI4060.6090100. ② 4 slides and 6 lifters ③ IMM tonnage: 180T |
||
| Width | 600 | |||
| Height | 501 | |||
| Net weight |
550kg |
|||
Uniform mold temperature, pin point gate, long tool life of about 500k shots;
The three-plates mold has scientific design and minimize cold slug;
harden cavity and core to excellent anti-wearing performance and good strength,
short cycle time and high production efficiency
|
Surface finish |
A surface polished to 1000# sandpaper | ||
| Gluing surface (jet) EDM with VDI27# | |||
| Other surfaces EDM with VDI24# | |||
| Injection/runner type | Part material | Part weight | Part size | |||
| The hot runner turns to the cold runner | PC+10%GF | 6g | 160.37 X 75.00 X 7.50mm | |||

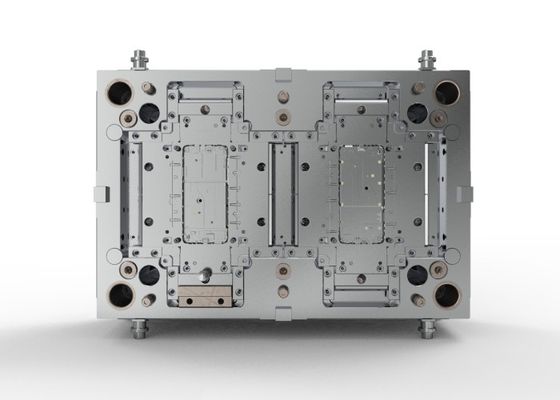

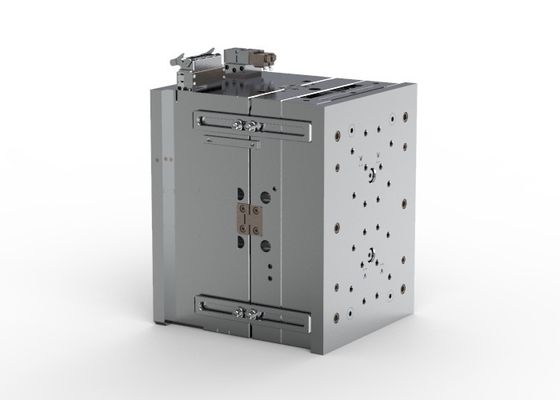

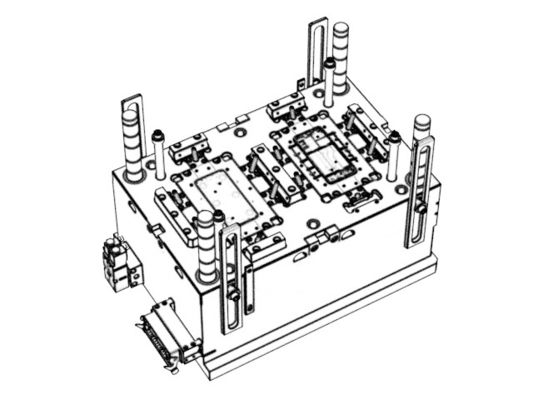

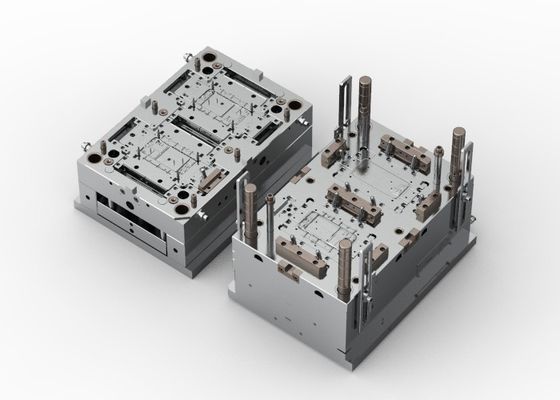

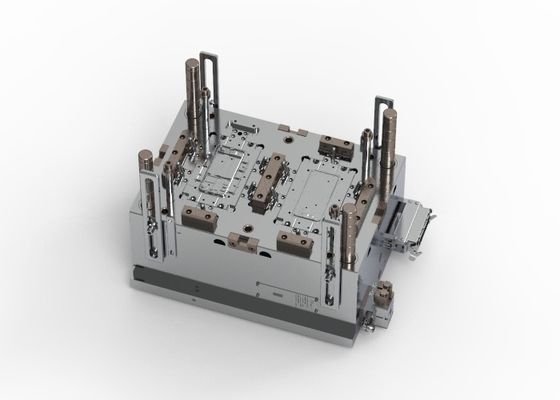

Display diagram
