Clamshell Phone Back Cover (1*1) / Cold runner / Three-plates mold No.21870
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | AD | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 418kg | Tool Life | 500K Shots |
| Gate | Pin Point Gate | The Pin Point Gate Turns To The Side Gate | Type | Three-plates Mold |
| Mold Base P/N | DDI3540 70100100 | Slide | 7 |
| Lifter | 2 | Standard | LKM |
| Part Material | PC + 10% GF | ||
| High Light | 500K Shots Metal Insert Moulding,Phone Back Cover Metal Insert Moulding,LKM Metal Insert Moulding |
||
Product Description

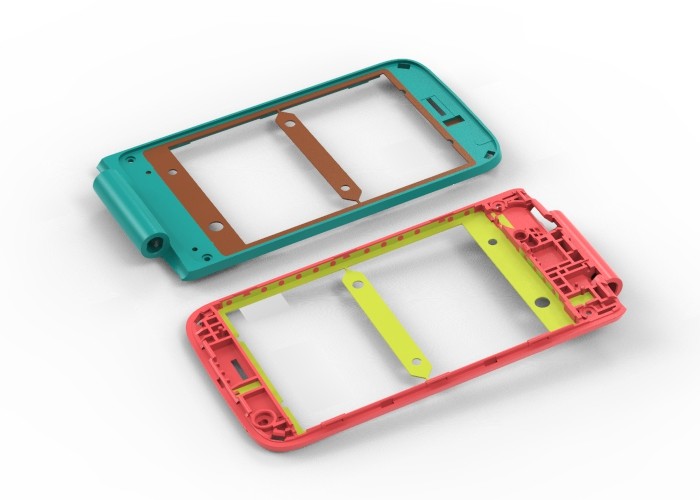

Clamshell Phone Back Cover (1*1)
No.21870
|
|
||||||||||||||||||||||||||||||||
| Mold weight: 418kg | |||
| IMM Tonnage: 110T |
| Part material |
PC + 10% GF | Excellent impact performance, good toughness, excellent heat resistance, not easy to occur thermal deformation, less surface fiber mark, uniform distribution of glass fiber, good painting performance, and low defective rate of painting. |
Part weight | |||||
| 4.8g | |||||||
| Part size | |||||||
| 55.51X11.20X107.96mm | |||||||
| Surface finish: A surface EDM with VDI27# to improve the roughness, and the molded part has a smoother surface |
|||||
|
Steel of cavity & core: |
Harden with S136, with good comprehensive mechanical property, high polishing performance, high hardness, anti-wearing, anti-corrosion. |
||||
| Harden (1*2/S136) | |||||
Injection/runner type: Cold runner

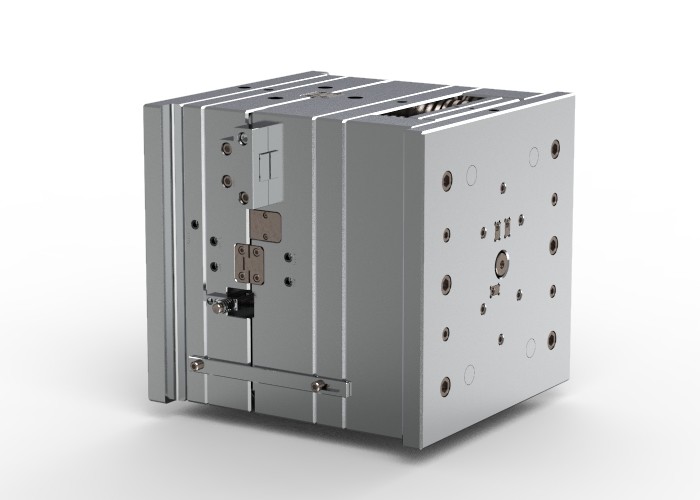

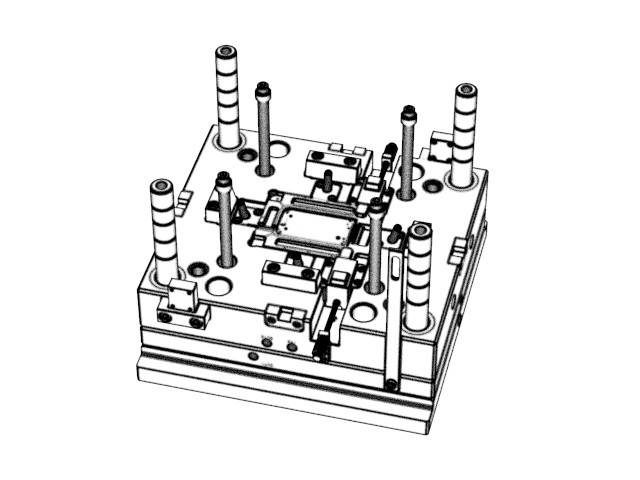

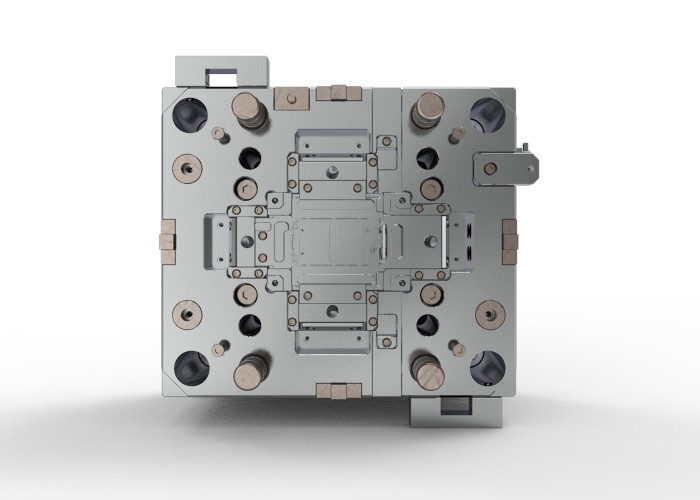

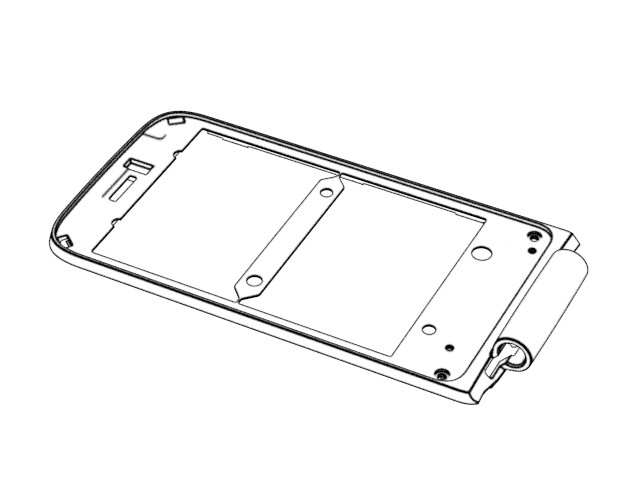

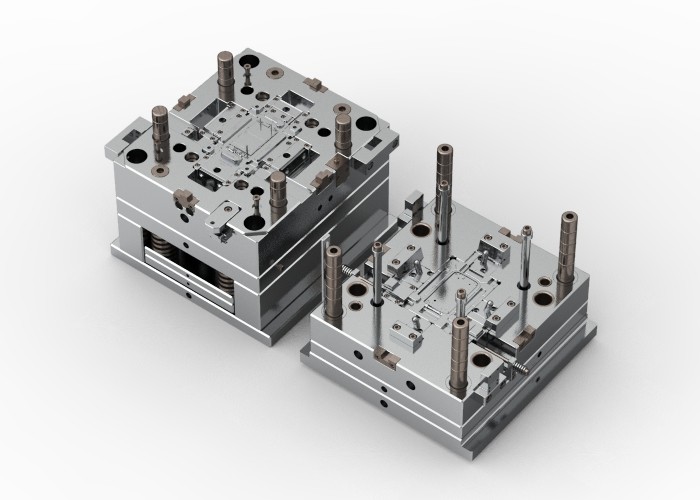

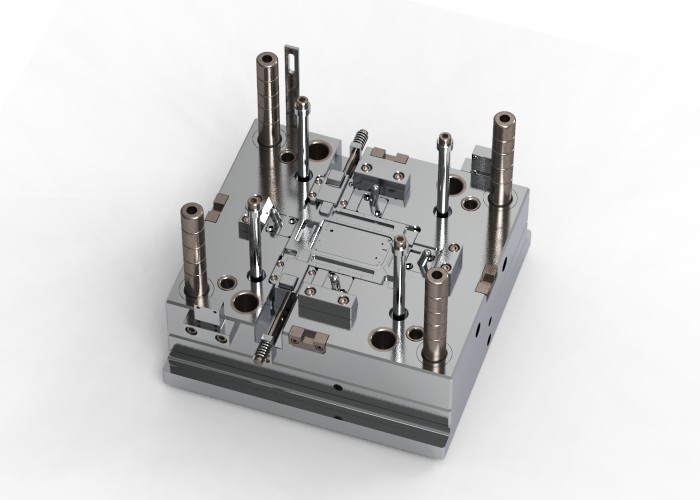

Display diagram
